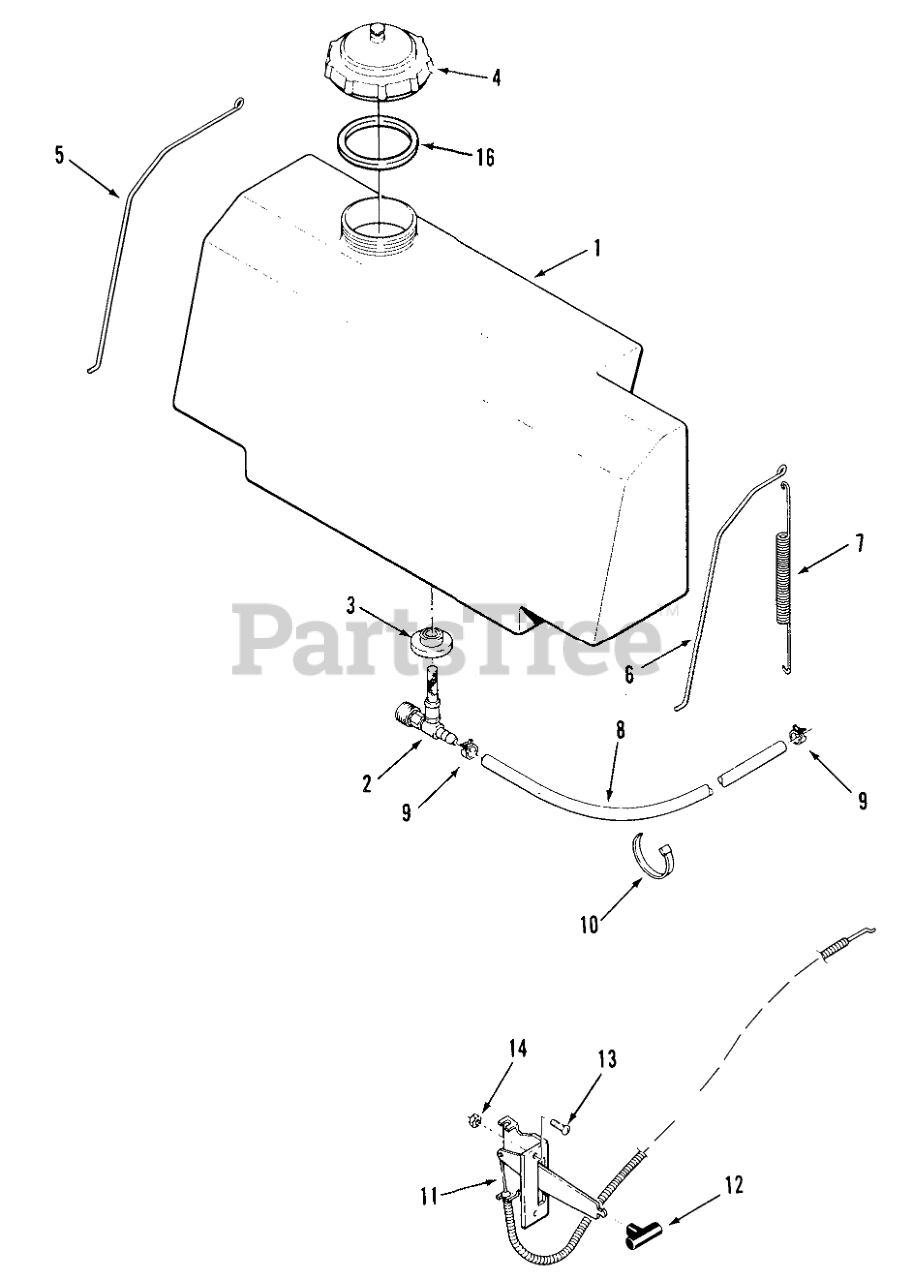

R3-10B401 (110-4) - Toro Rear-Engine Riding Mower (1990) FUEL SYSTEM Parts Diagram

Rear-Engine Riding Mower

FUEL SYSTEM Parts Diagram

  • Title

1

Toro 114194

Fuel Tank (includes items 2 & 3)

$

$

Not available

2

Toro 104048

VALVE-FUEL

$39.99

$

In Stock, Qty 7

0

3

Toro 104047

BUSHING
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

4

Toro 110352

ASSY FUEL CAP

$

$

Not available

5

Toro 110925

RETAINER TANK RH

$

$

Not available

6

Toro 110926

RETAINER TANK LH

$

$

Not available

7

Toro 110927

SPRING EXTENSION

$

$

Not available

8

Toro 100088

Fuel Hose
(Superseded to 101338)

$

$

Not available

Toro 105442

Fuel Hose 18"
(Superseded to 100061)

$

$

Not available

9

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

10

Toro 100571

PLASTIC TIE

$

$

Not available

11

Toro 110678

Rear Wheel & Tire Assy 416

$

$

Not available

Toro 112777

CONTROL-THROTTLE

$

$

Not available

12

Toro 107045

KNOB-CONTROL
(Superseded to 233-50)

$3.49

$

In Stock, only 1 left!

0

13

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

14

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

16

Toro 106931

GASKET-GAS CAP

$

$

Not available
