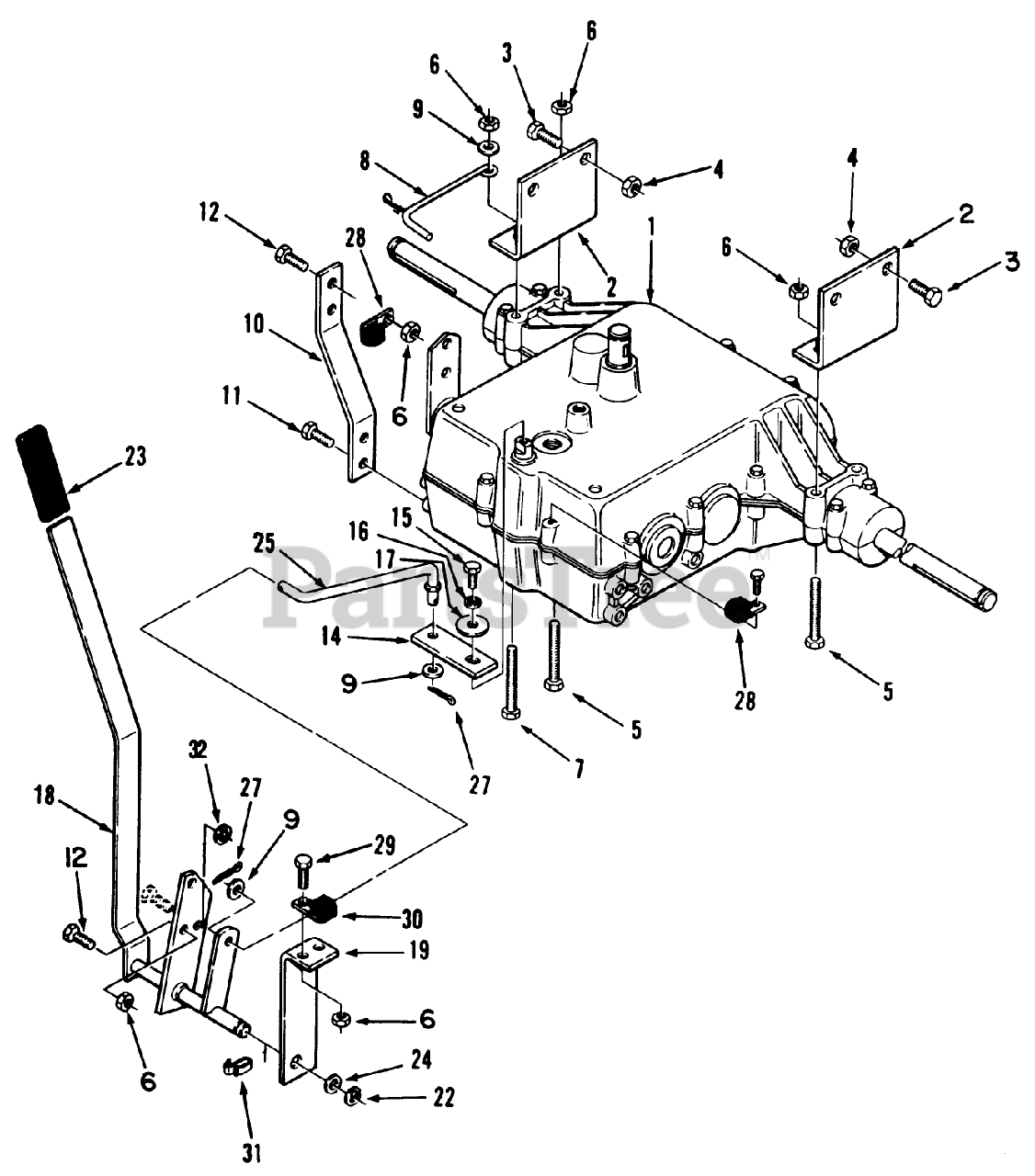

R3-10B404 (110-4) - Toro Rear-Engine Riding Mower (SN: 039000001 - 039999999) (1993) Transmission Assembly Parts Diagram

Rear-Engine Riding Mower

Transmission Assembly Parts Diagram

  • Title

1

Toro 78-5770

DISCONTINUED

$

$

Not available

Toro 78-5760

TRANSAXLE-6 SPD 930

Note: Not illustrated

$2787.99

$

Usually ships in 3-6 days

0

2

Toro 110326

DISCONTINUED

$

$

Not available

3

Toro 913183

DISCONTINUED

$

$

Not available

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 9

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-13

SCREW-HH

$3.99

$

In Stock, Qty 11

0

8

Toro 110848

STOP BRAKE

$

$

Not available

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 10

0

10

Toro 112138

DISCONTINUED

$

$

Not available

11

Toro 926496

See Supercession: 9264964
(Superseded to 9264964)

$1.99

$

Usually ships in 3-6 days

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 110330

DISCONTINUED

$

$

Not available

15

Toro 329-5

SCREW-HH

$

$

Not available

16

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 104869

WASHER

$

$

Not available

18

Toro 111109

ASSY LEVER SHIFT *R

$

$

Not available

19

Toro 111106

DISCONTINUED

$

$

Not available

22

Toro 32120-47

RING-RETAINING, EXTERNAL

$1.49

$

In Stock, Qty 10

0

23

Toro 102597

GRIP

$2.49

$

In Stock, only 2 left!

0

24

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

25

Toro 112128

DISCONTINUED

$

$

Not available

27

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

28

Toro 111357

J-CLIP

$

$

Not available

29

Toro 913160

DISCONTINUED

$

$

Not available

30

Toro 111392

J-CLIP

$2.99

$

Usually ships in 3-6 days

0

31

Toro 519337

CLIP-CABLE

$

$

Not available

32

Toro 32542

Lockwasher

$

$

Currently unavailable
