R3-12B601 (112-6e) - Toro Rear-Engine Riding Mower (1990) SECTION 6-ENGINES & EXHAUST SYSTEMS Parts Diagram

Rear-Engine Riding Mower

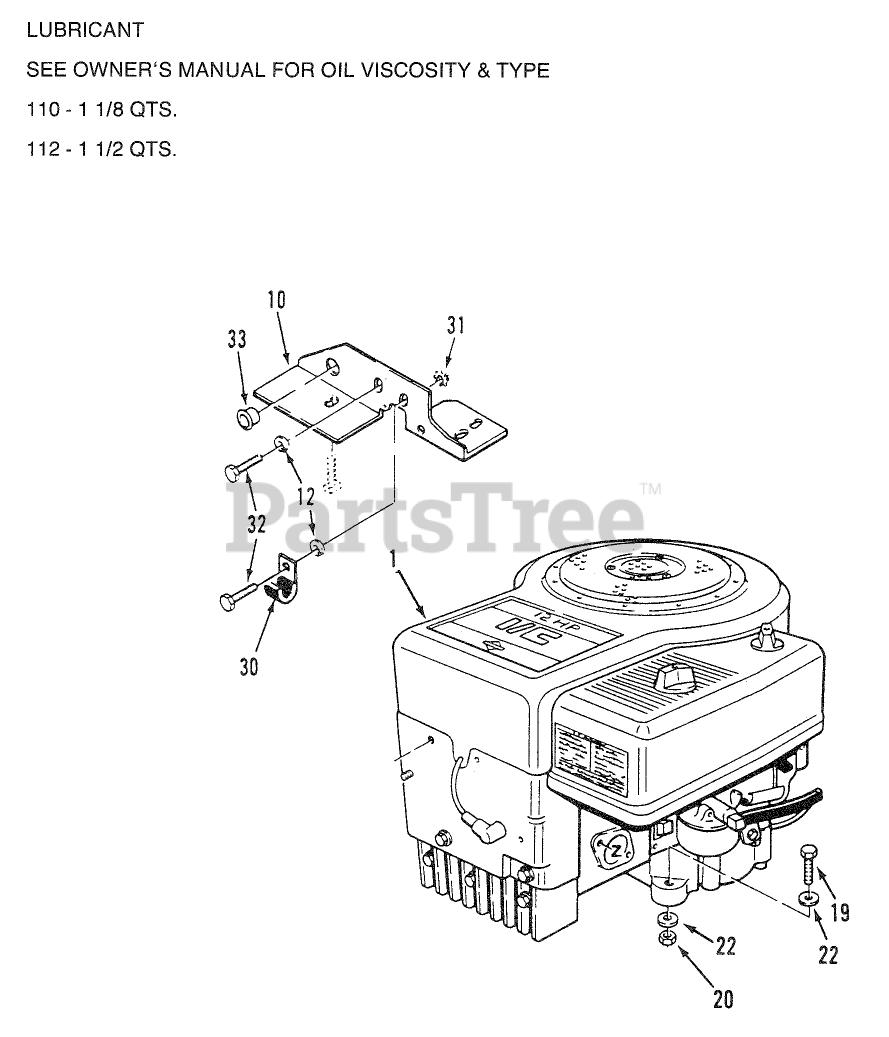

SECTION 6-ENGINES & EXHAUST SYSTEMS Parts Diagram

  • Title

1

Toro 114887

Engine-10 HP Briggs and Stratton I.C. Model 256707 Type 0117 01

$

$

Currently unavailable

Toro 118390

Engine-12 HP Briggs and Stratton I/C Quiet Model 281707 Type 0219 01

$

$

Currently unavailable

Toro 112676

PIPE-DRAIN B

$

$

Not available

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

Toro 908023

Bolt 5/16-18 x 2
(Superseded to 322-10)

$0.99

$

In Stock, Qty 10

0

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

10

Toro 115962

BRACKET-ENGINE HE R

$

$

Not available

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

12

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 4 left!

0

30

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

31

Toro 920123

Washer-Lock
(Superseded to 3255-8)

$0.99

$

In Stock, Qty 7

0

33

Toro 938031

BUSHING-NYLON 1.093

$0.99

$

Usually ships in 3-6 days

0
