R3-12B602 (112-6) - Toro Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) FRONT AXLE & STEERING ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

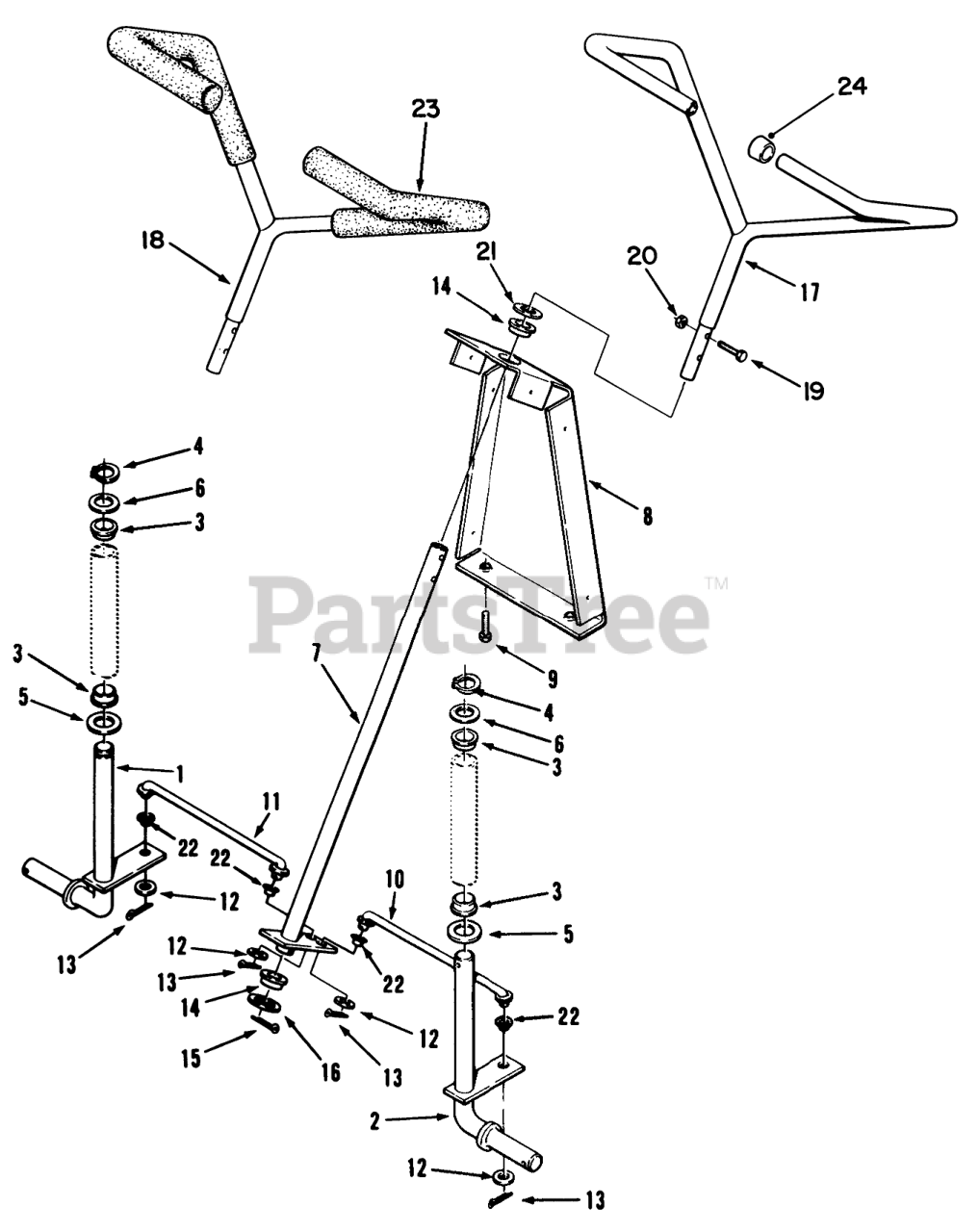

FRONT AXLE & STEERING ASSEMBLY Parts Diagram

  • Title

1

Toro 113384

ASS'Y-SPINDLE RH. R

$164.99

$

Usually ships in 3-6 days

0

2

Toro 113383

FRONT SPINDLE ASSY LH R

$

$

Not available

3

Toro 111102

BUSHING

$3.49

$

Usually ships in 3-6 days

0

4

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

5

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

6

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

7

Toro 112106

ASSY STEERING SHA R

$

$

Not available

8

Toro 110320

SUPPORT-STG UPPER B

$

$

Not available

9

Toro 926496

HEX WASH HD SCREW
(Superseded to 9264964)

$1.49

$

In Stock, only 2 left!

0

10

Toro 112129

TIE ROD LH R
(Superseded to 112129-01)

$

$

Not available

11

Toro 112130

TIE ROD RH R
(Superseded to 112130-01)

$99.99

$

Usually ships in 3-6 days

0

12

Toro 9202374

WASHER 25/64X5/8X.03

$0.99

$

Usually ships in 3-6 days

0

13

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

14

Toro 110324

BEARING

$

$

Not available

15

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

16

Toro 109262

WASHER-FLAT

$3.49

$

In Stock, only 2 left!

0

17

Toro 112303

ASSY STEERING WHEEL

$

$

Not available

18

Toro 110889

STEERING WHEEL

$276.99

$

Usually ships in 3-6 days

0

19

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

20

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21

Toro 920215

Washer
(Superseded to 9202154)

$1.99

$

In Stock, Qty 5

0

22

Toro 112108

BEARING

$32.99

$

Usually ships in 3-6 days

0

23

Toro 110892

Grips-Steering Wheel 112-6

$

$

Not available

24

Toro 112302

PLUG BUTTON

$

$

Not available
