R4000D (9014-0) - Generac 4,000 Watt Portable Generator Cradle Parts Diagram

4,000 Watt Portable Generator

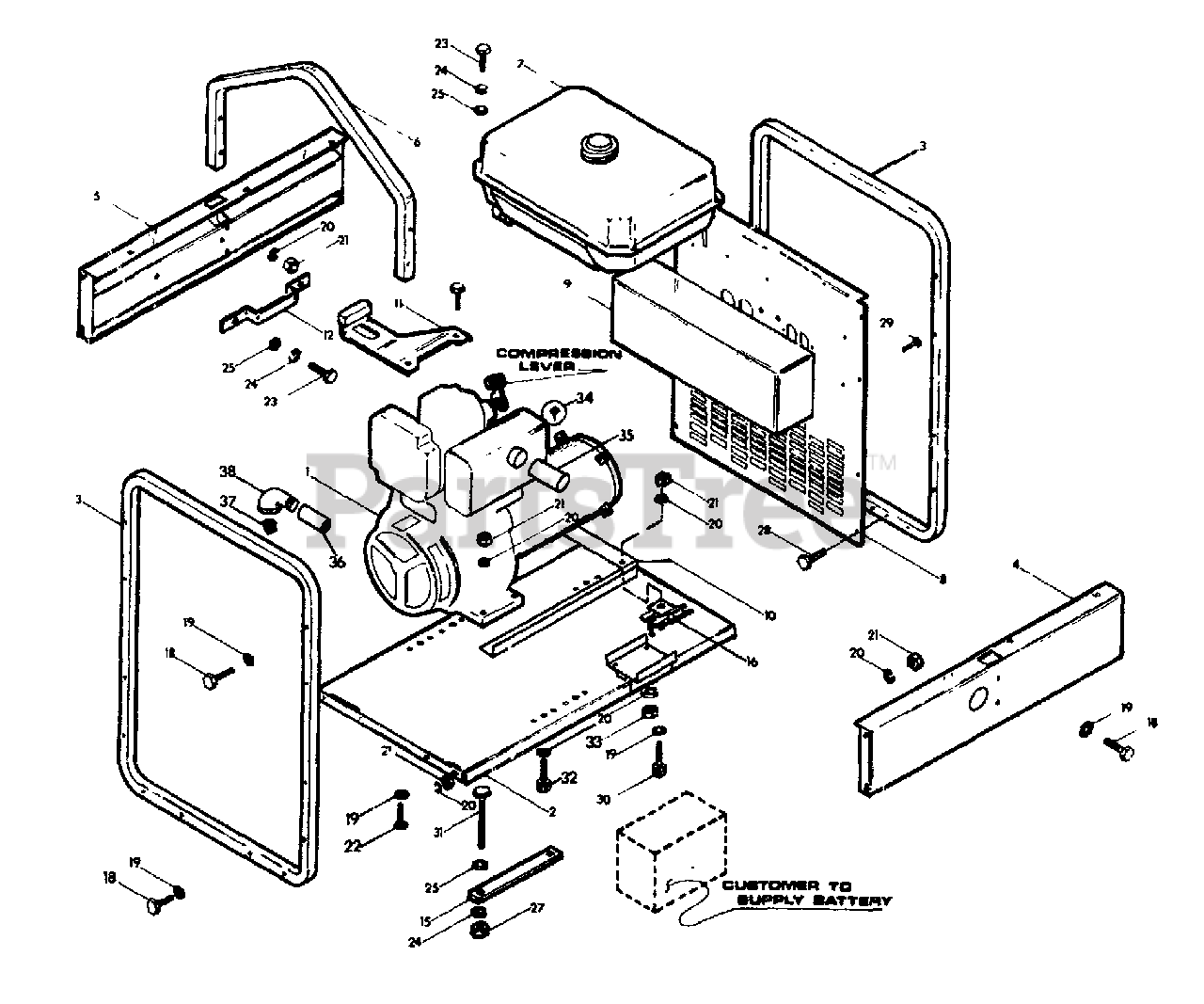

Cradle Parts Diagram

  • Title

1

Briggs & Stratton 71891

ENGINE - Diesel

$2.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 71873

CRADLE, Mounting Base

$

$

Currently unavailable

3

Briggs & Stratton 71876

LOOP, Cradle End

$

$

Currently unavailable

4

Briggs & Stratton 73696

SUPPORT, Fuel Tank - LH

$

$

Currently unavailable

5

Briggs & Stratton 73696A

SUPPORT, Fuel Tank- RH

$

$

Currently unavailable

6

Briggs & Stratton 70708

EYE, Lifting

$

$

Currently unavailable

7

Briggs & Stratton 71656

TANK, Fuel

$

$

Currently unavailable

8

Briggs & Stratton 73689

PANEL, Receptacle

$

$

Currently unavailable

9

Briggs & Stratton 73503

BACK, Receptacle Panel
(Superseded to 7073503YP)

$455.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 71882

SUPPORT, Generator Rear

$

$

Currently unavailable

11

Briggs & Stratton 73504

STRAP, Torque
(Superseded to 7073504YP)

$6.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 71885

BRACKET, Vibration Extension

$

$

Currently unavailable

15

Briggs & Stratton 44951

BRACKET, Battery Holddown

$

$

Currently unavailable

16

Briggs & Stratton 70642

MOUNT, Engine
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

18

Briggs & Stratton 42782

CAPSCREW, Hex Head- 5/16"-18 x 1-1/2"

$

$

Currently unavailable

19

Briggs & Stratton 22145

FLATWASHER-5/16"

$

$

Not available

20

Briggs & Stratton 22129

LOCKWASHER-5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 30231

CAPSCREW, Hex Head - 5/16"-18 x 1-1/2"

$

$

Currently unavailable

23

Briggs & Stratton 53395

CAPSCREW, Hex Head - 1/4"-20 x 1/2"

$

$

Currently unavailable

24

Briggs & Stratton 22097

LOCKWASHER- 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

25

22473

FLATWASHER- 1/4"

$

$

Not available

27

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

$

$

Not available

28

Briggs & Stratton 58442

SCREW (Crimptite)- 1/4"-20 x 1/2"

$

$

Currently unavailable

29

Briggs & Stratton 63036

SCREW (Crimptite)- No. 8-18 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 60706

CAPSCREW, Socket Head - 5/16"-18 x 3/4"

$

$

Currently unavailable

31

Briggs & Stratton 45000

SCREW, Hex Head Machine- 1/4"-20 x 7"
(Superseded to 45000GS)

$11.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 39253

CAPSCREW, Hex Head - M5-1.25 x 20mm
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 45771

NUT, Hex - M8-1.25

$

$

Not available

34

Briggs & Stratton 56893

SCREW (Crimptite)- No. 10-32 x 1/2"
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

35

Briggs & Stratton 73534

EXTENSION, Exhaust

$

$

Currently unavailable

36

Briggs & Stratton 73536

TUBE, Oil Drain

$

$

Currently unavailable

37

Briggs & Stratton 26073A

PLUG, Pipe - 1/4"

$

$

Currently unavailable

38

Briggs & Stratton 29296

ELBOW, 90ø Street- 1/4"

$

$

Currently unavailable
