R4000D (9014-0) - Generac 4,000 Watt Portable Generator Generator Parts Diagram

4,000 Watt Portable Generator

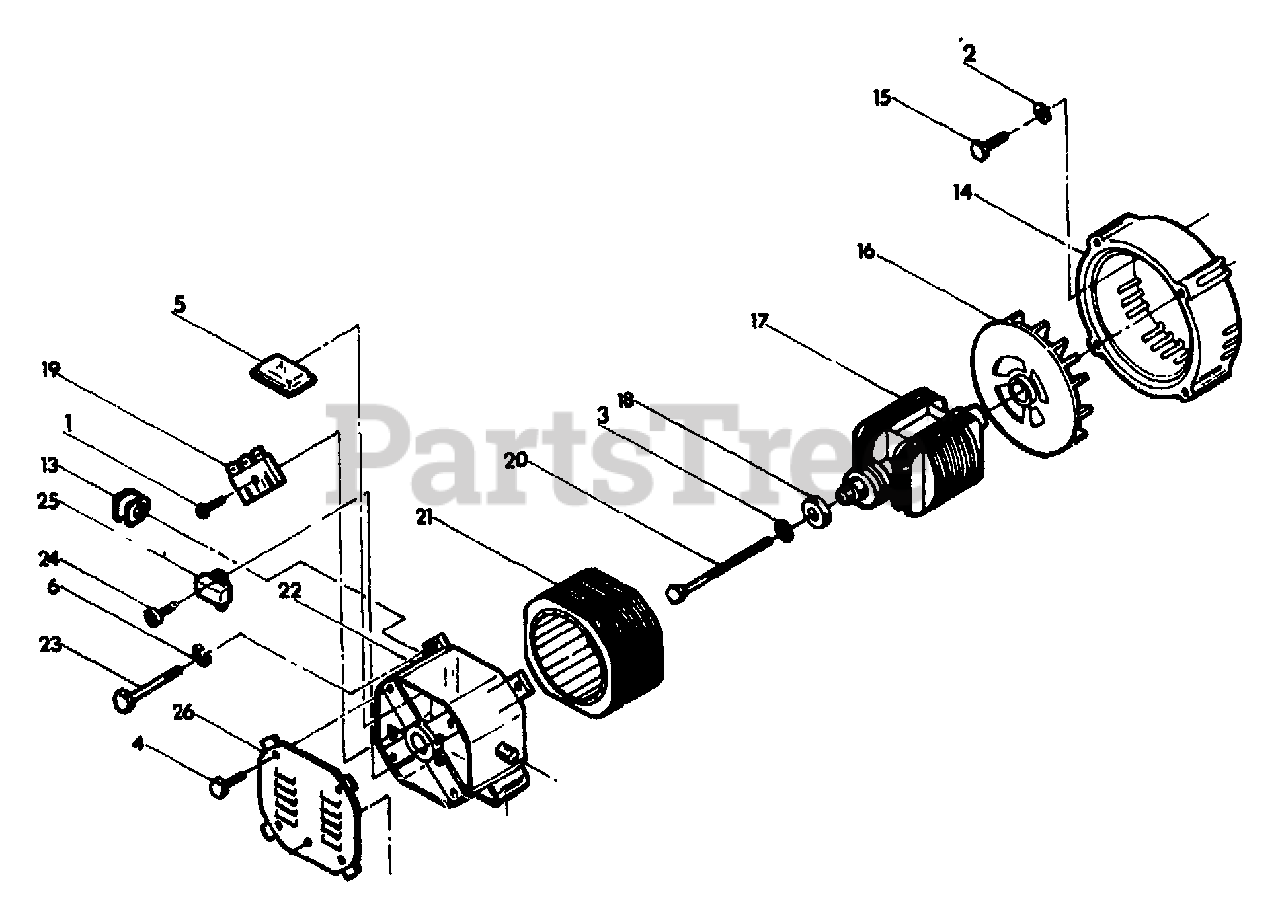

Generator Parts Diagram

  • Title

1

Briggs & Stratton 66849A

SCREW (Taptite) - M5-0.80 x 20mm
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 22129

FLATWASHER - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 67451

FLATWASHER (Special) - M8

$

$

Currently unavailable

4

Briggs & Stratton 66849B

SCREW (Taptite) - M5-0.80 x 8mm
(Superseded to 66849BGS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 67107

REGULATOR, Voltage
(Superseded to 67107GS)

$302.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22097

LOCKWASHER - M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 67022

GROMMET (Rubber)
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66365D

CASTING, Adapter
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 23541

SCREW, Hex - 5/16"-24 x 2-1/2"

$

$

Currently unavailable

16

Briggs & Stratton 66389

FAN, Cooling

$

$

Not available

17

Briggs & Stratton 72065

ROTOR ASSY

$

$

Currently unavailable

18

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

20

Briggs & Stratton 73068

BOLT, Rotor - 5/16"-24 x 8.87"
(Superseded to 73068GS)

$29.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 74102

STATOR ASSY

$

$

Currently unavailable

22

Briggs & Stratton 66825

CARRIER, Rear Bearing

$

$

Currently unavailable

23

Briggs & Stratton 66449F

BOLT, Stator- M6-1.00 x 140mm

$

$

Not available

24

Briggs & Stratton 66849

SCREW (Taptite)- M5-0.80 x 15mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 66386

HOLDER, Brush
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 67025

COVER, Rear

$

$

Currently unavailable
