R4000D (9014-1) - Generac 4,000 Watt Portable Generator Cradle Assembly Parts Diagram

4,000 Watt Portable Generator

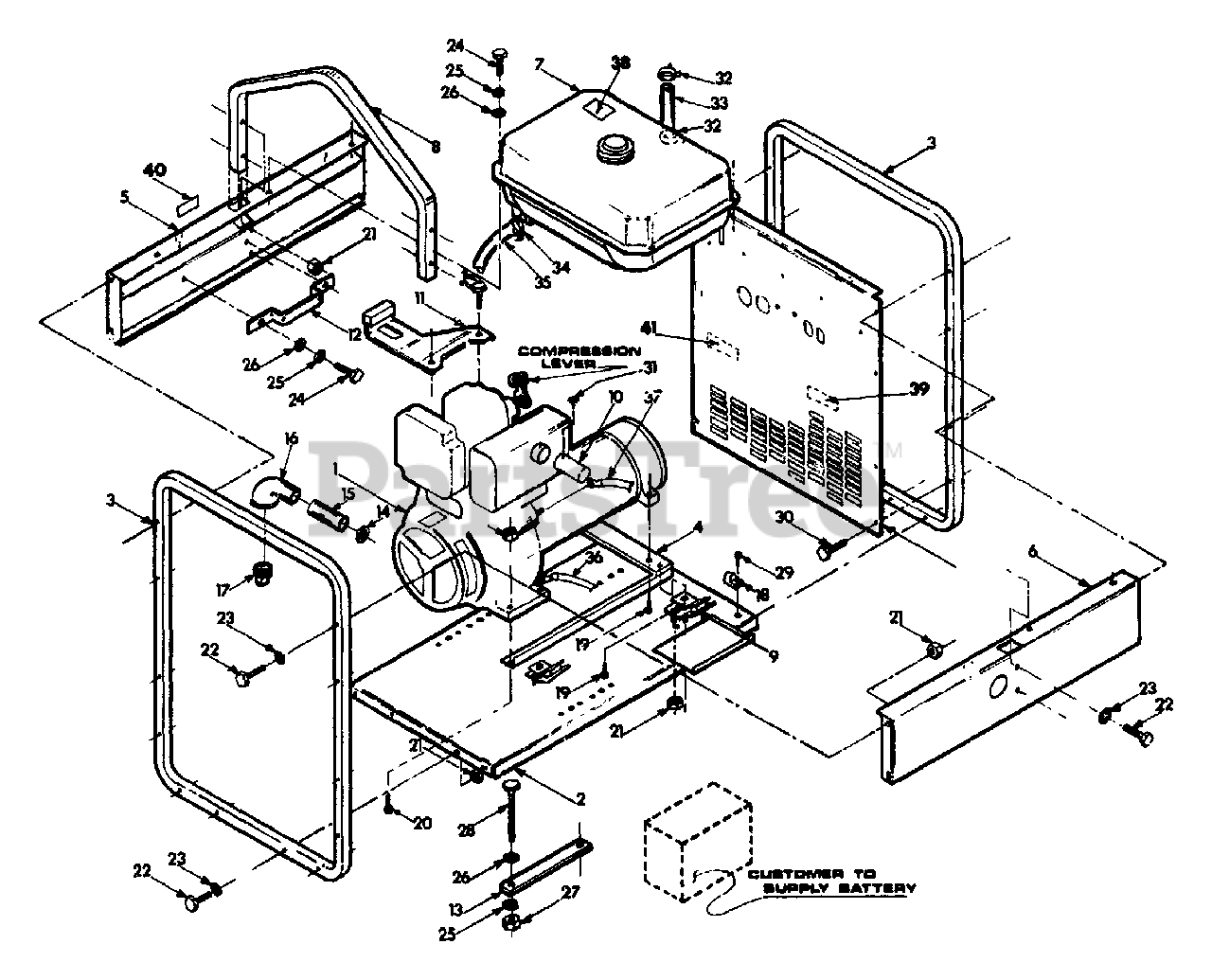

Cradle Assembly Parts Diagram

  • Title

1

Briggs & Stratton 71891

Engine assembly

$2.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 71873

Cradle base

$

$

Currently unavailable

3

Briggs & Stratton 71876

Cradle loop

$

$

Currently unavailable

4

Briggs & Stratton 73527

Sub base

$

$

Not available

5

Briggs & Stratton 71874

Right hand fuel tank support

$

$

Currently unavailable

6

Briggs & Stratton 71877

Left hand fuel tank support

$

$

Currently unavailable

7

Briggs & Stratton 71886

Fuel tank
(Superseded to 71886GS)

$399.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 70708

Lifting bracket

$

$

Currently unavailable

9

Briggs & Stratton 70642

Vibration mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

10

Briggs & Stratton 73534

Exhaust extension

$

$

Currently unavailable

11

Briggs & Stratton 73504

Torque strap
(Superseded to 7073504YP)

$6.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 71885

Retainer bracket

$

$

Currently unavailable

13

Briggs & Stratton 44951

Battery hold-down bracket

$

$

Currently unavailable

14

Briggs & Stratton 29910

Seal washer

$

$

Currently unavailable

15

Briggs & Stratton 73536

Oil drain extension

$

$

Currently unavailable

16

Briggs & Stratton 29296

90" Street elbow

$

$

Currently unavailable

17

Briggs & Stratton 26073A

1/4" pipe plug

$

$

Currently unavailable

18

Briggs & Stratton 25433

Grounding lug

$

$

Not available

19

Briggs & Stratton 70644

Pan head machine screw- M8-1.25 x 20mm
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 39414

Hex head capscrew- M8-1.25 x 35mm
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 52858

Flanged nut- M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 39287

Hex head capscrew- M8-1.25 x 45mm
(Superseded to 39287GS)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 22145

Flatwasher- 5/16"

$

$

Not available

24

Briggs & Stratton 53395

Hex head capscrew- 1/4"-20 x 1/2"

$

$

Currently unavailable

25

Briggs & Stratton 22097

Lockwasher- 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

26

22473

Flatwasher- 1/4"

$

$

Not available

27

Briggs & Stratton 22127

Hex nut- 1/4"-20

$

$

Not available

28

Briggs & Stratton 45000

Hex head capscrew- 1/4"-20 x 7"
(Superseded to 45000GS)

$11.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 24489

Screw- No. 10 x 3/8"

$

$

Currently unavailable

30

Briggs & Stratton 58443

Screw- 1/4"-20 x 3/8"
(Superseded to 58443GS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 56893

Screw- No. 10-32 x 1/2"
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

32

Briggs & Stratton 48031B

Hose clamp
(Superseded to 48031BGS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 73530

Fuel line- 6" long

$

$

Currently unavailable

34

Briggs & Stratton 48031D

Hose clamp

$

$

Currently unavailable

35

Briggs & Stratton 52220C

Fuel hose- 14-1/2" long

$

$

Currently unavailable

36

Briggs & Stratton 4411419

Wire assembly- No. 4 AWG x 20" long

$

$

Currently unavailable

37

Briggs & Stratton 4411465

Wire assembly- No. 4 AWG x 9" long (Red)

$

$

Currently unavailable

38

Briggs & Stratton 69674

Diesel fuel decal

$

$

Currently unavailable

39

Briggs & Stratton 72079

Decal

$

$

Currently unavailable

40

Fuel Shutoff Decal

$

$

Not available

41

Briggs & Stratton 74728

Neutral ground decal
(Superseded to 74728GS)

$5.49

$

Usually ships in 2-12 days

0
