R4000D (9014-1) - Generac 4,000 Watt Portable Generator Receptacle Panel Parts Diagram

4,000 Watt Portable Generator

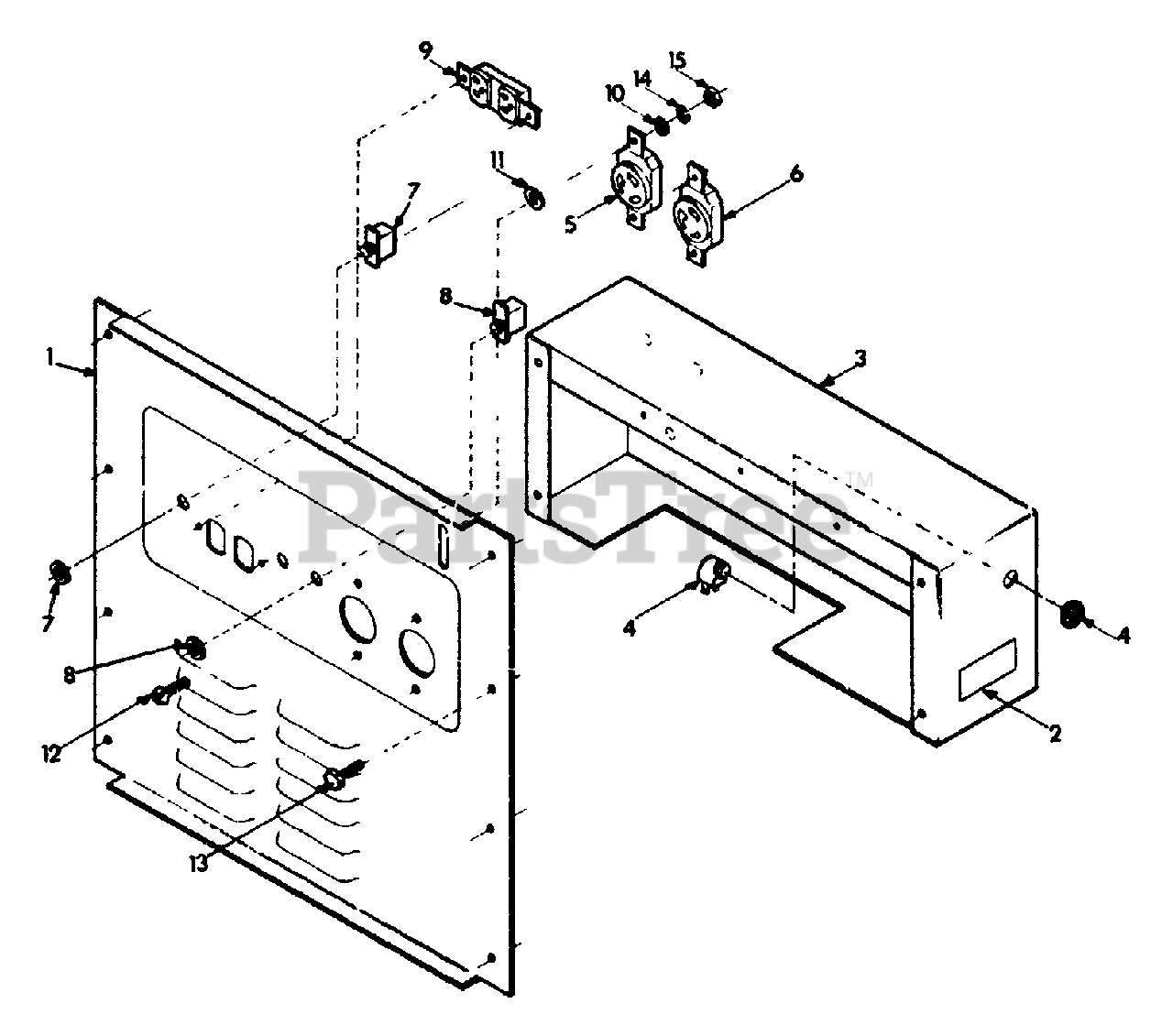

Receptacle Panel Parts Diagram

  • Title

1

Briggs & Stratton 73689

PANEL, Receptacle

$

$

Currently unavailable

2

Briggs & Stratton 71377

DECAL - Starting Instructions

$

$

Currently unavailable

3

Briggs & Stratton 73503

PANEL, Receptacle Back
(Superseded to 7073503YP)

$455.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 34303

SWITCH, Starter

$

$

Currently unavailable

5

Briggs & Stratton 68867

RECEPTACLE- 120/240 volts, 20 amp
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68868

RECEPTACLE- 120 volts, 30 amp
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 75207

BREAKER, Circuit- 20 amp
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

8

75207A

BREAKER, Circuit- 30 amp

$

$

Not available

9

Briggs & Stratton 75466

RECEPTACLE- 120 volts 20 amp "duplex" type

$

$

Currently unavailable

10

Briggs & Stratton 38150

FLATWASHER- No. 8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 23365

LOCKWASHER (Shakeproof)- No. 8
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 36917

SCREW, Pan Head Machine- No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 63036

SCREW (Crimptite)- No. 8-18 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 22264

LOCKWASHER- No. 8

$

$

Not available

15

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 36935

SCREW, Phillips Pan Head- No. 10-32 x 3/4"

$

$

Not available

Briggs & Stratton 37806

PLUG, Connector- 120 volts, 30 amp
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

PLUG, Connector- 120/240 volts, 20 amp
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0
