R4002 (8905-1) - Generac 4,000 Watt Portable Generator Cradle Parts Diagram

4,000 Watt Portable Generator

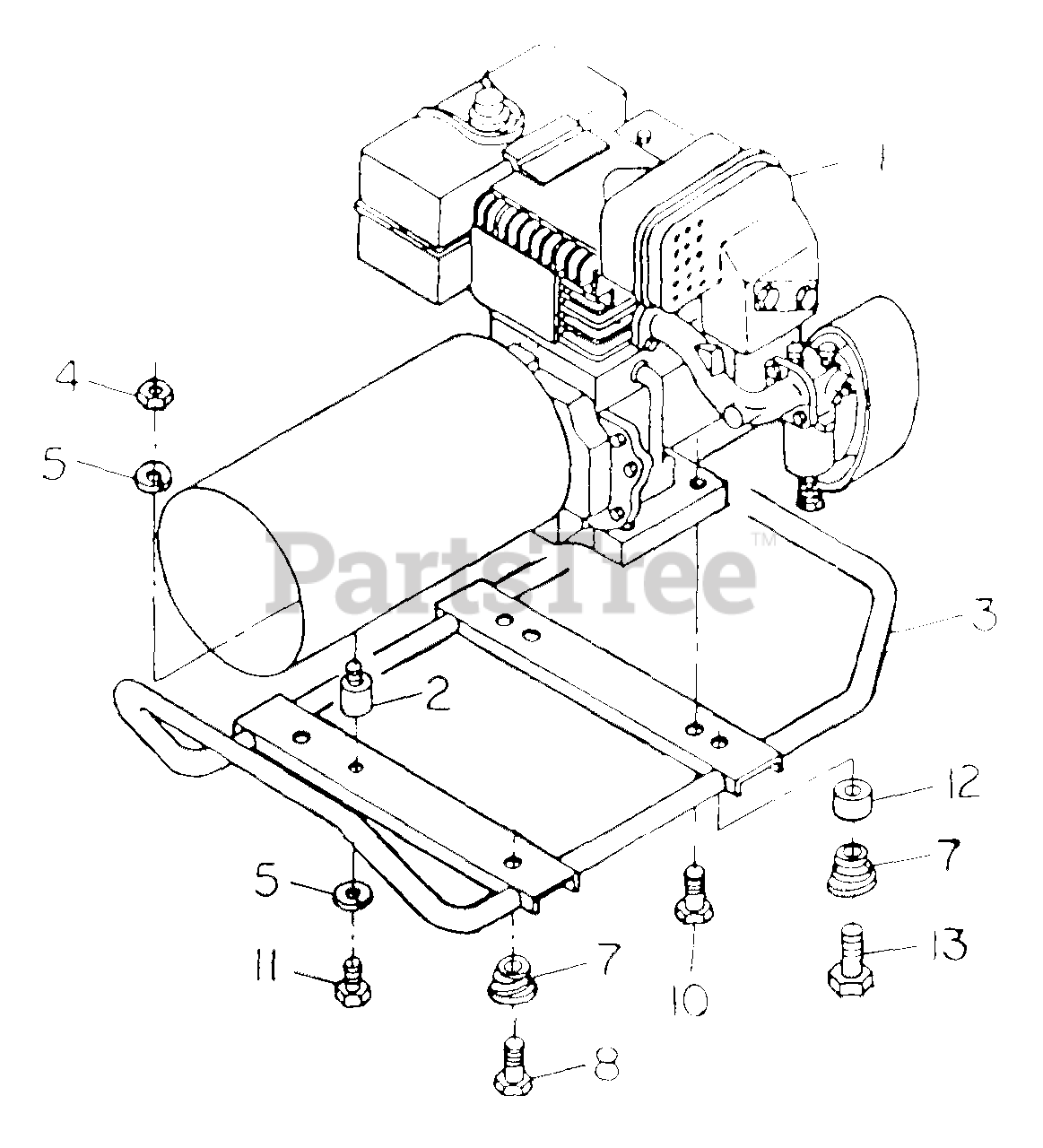

Cradle Parts Diagram

  • Title

1

Briggs & Stratton 69649

ENGINE- Tecumseh HM-80

$

$

Currently unavailable

2

Briggs & Stratton 40479

DAMPENER, Vibration

$

$

Currently unavailable

3

Briggs & Stratton 68395E

CRADLE ASSY

$

$

Currently unavailable

4

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

$

$

Not available

5

Briggs & Stratton 22097

LOCKWASHER- 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23594

SPRING (Plain)

$

$

Currently unavailable

8

Briggs & Stratton 24910

SCREW- 5/16"-18 x 1/2"

$

$

Not available

10

Briggs & Stratton 59637

SCREW- 3/16"-18 x 3/4"

$

$

Not available

11

Briggs & Stratton 36949

SCREW- 1/4"-20 x 3/8"

$

$

Currently unavailable

12

Briggs & Stratton 22550J

SPACER- 1/2" long

$

$

Currently unavailable

13

Briggs & Stratton 24490

SCREW- 5/16"-18 x 1"

$

$

Currently unavailable
