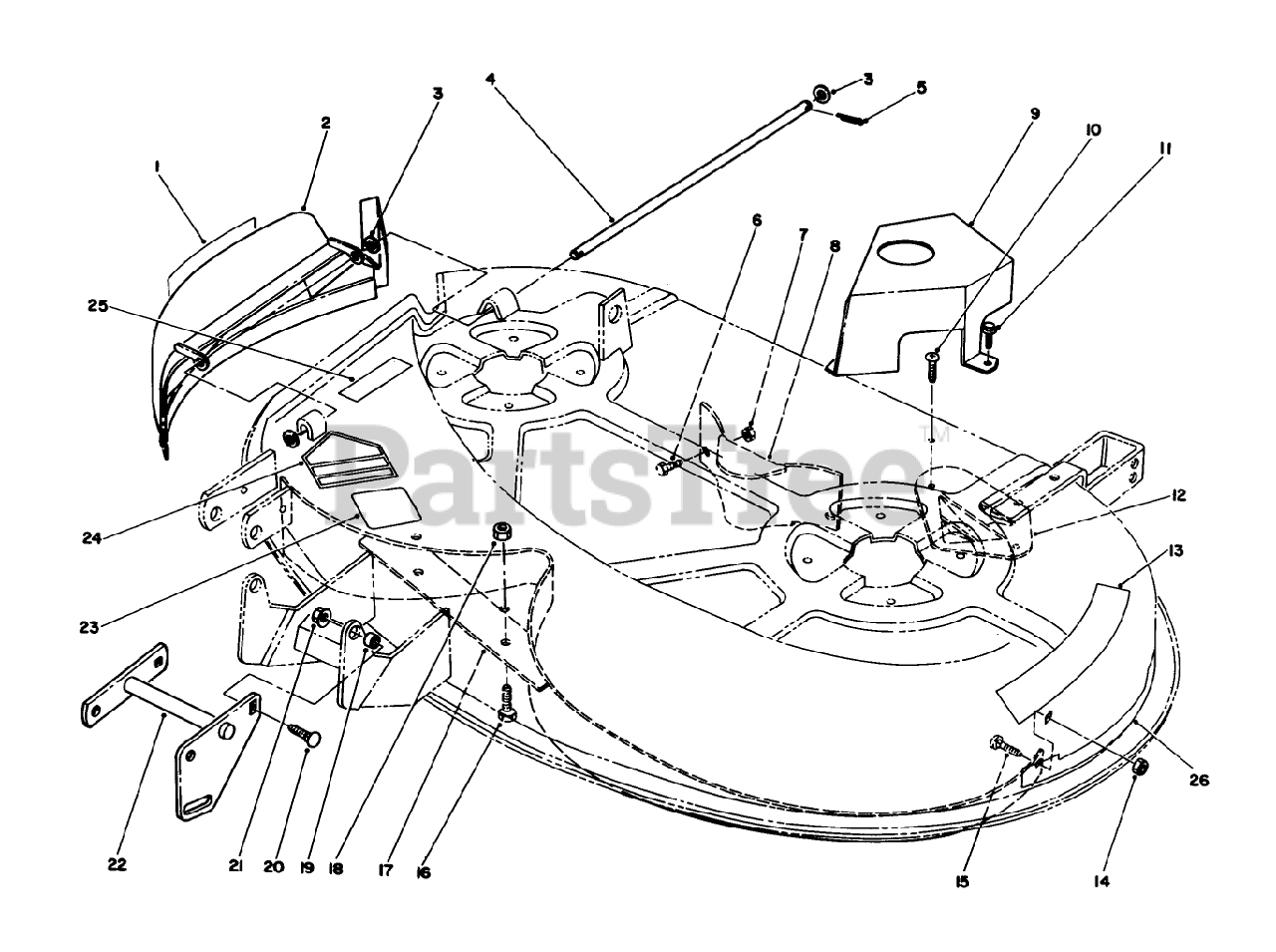

R5-38SL01 - Toro 38" Recycler Mower Deck (SN: 010000001 - 019999999) (1991) Baffle Cover Assembly Parts Diagram

38" Recycler Mower Deck

Baffle Cover Assembly Parts Diagram

  • Title

1

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

2

Toro 79-1680

DISCONTINUED
(Superseded to 92-5787)

$

$

Not available

3

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

4

Toro 78-0820

ROD

$

$

Not available

5

Toro 932008

See Supercession: 3272-6
(Superseded to 3-2726)

$

$

Not available

6

Toro 908002

See Supercession: 321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

7

Toro 915661

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

8

Toro 79-1640

See Supercession: 79-1640-03
(Superseded to 79-1640-03)

$76.99

$

Usually ships in 3-6 days

0

9

Toro 78-0830

DISCONTINUED

$

$

Not available

10

Toro 32104-130

#8 X .625" PHILPS PAN H

$2.49

$

Usually ships in 3-6 days

0

11

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

12

Toro 76-2160

PLATE-KICKER

$17.99

$

Usually ships in 3-6 days

0

13

Toro 79-3140

DECAL-DANGER

$20.99

$

Usually ships in 3-6 days

0

14

Toro 915662

See Supercession: 3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

15

Toro 900037

See Supercession: 3230-1
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

16

Toro 908033

See Supercession: 110242
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

17

Toro 79-1600

See Supercession: 79-1600-03
(Superseded to 79-1600-03)

$120.99

$

Usually ships in 3-6 days

0

18

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

19

Toro 102704

SPACER

$2.99

$

In Stock, only 2 left!

0

20

Toro 900234

See Supercession: 3231-22
(Superseded to 3231-22)

$3.99

$

In Stock, Qty 20+

0

21

Toro 10280

Nut-Hex Flange Lock

$

$

Currently unavailable

22

Toro 114837

ASM-FRONT LIFT *R

$174.99

$

Usually ships in 3-6 days

0

23

Toro 117137

See Supercession: 117-0033
(Superseded to 117-0033)

$8.99

$

Usually ships in 3-6 days

0

24

Toro 54-9220

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 10

0

25

Toro 66-6380

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

26

Toro 79-1311

See Supercession: 92-9520
(Superseded to 92-9520)

$51.99

$

Usually ships in 3-6 days

0
