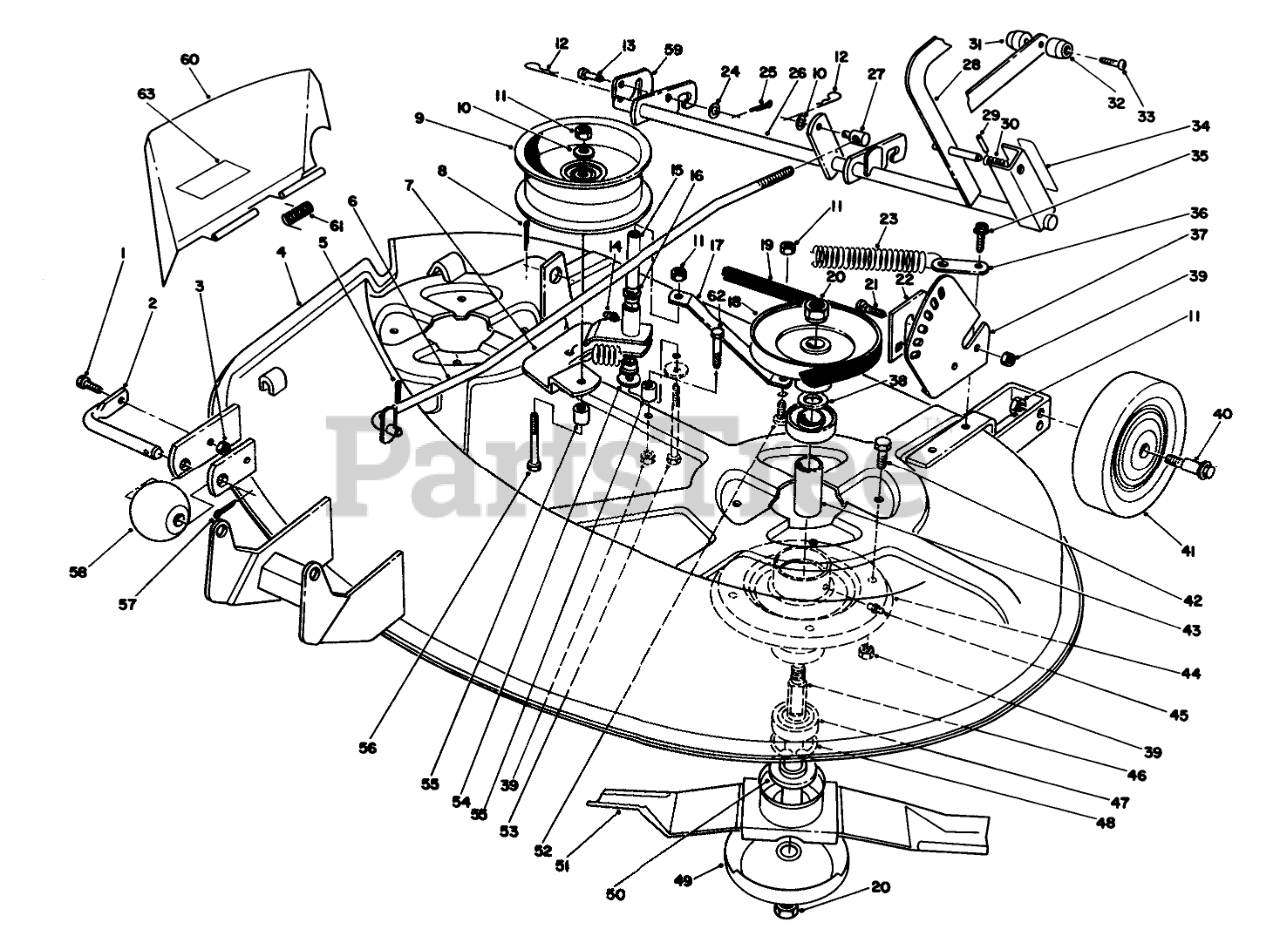

R5-38SL01 - Toro 38" Recycler Mower Deck (SN: 010000001 - 019999999) (1991) SPINDLE & HEIGHT OF CUT ASSEMBLY Parts Diagram

38" Recycler Mower Deck

SPINDLE & HEIGHT OF CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

2

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$37.99

$

In Stock, only 3 left!

0

3

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

4

Toro 79-2140

Deck W.A.
(Superseded to 14-7219)

$

$

Not available

5

Toro 933268

SPIROL PIN

$1.49

$

In Stock, Qty 6

0

6

Toro 120551

WLDMT-HEIGHT ADJ R

$

$

Not available

7

Toro 78-5860

WLDMT-IDLER ARM R

$125.99

$

Usually ships in 3-6 days

0

8

Toro 908026

Pin-Cotter
(Superseded to 322-13)

$3.49

$

In Stock, Qty 17

0

9

Toro 109450

PULLEY-IDLER
(Superseded to 94-4935)

$111.99

$

Usually ships in 3-6 days

0

10

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

11

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

12

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

13

Toro 932960

PIN

$

$

Not available

14

Toro MW1455

Grease Zerk
(Superseded to 302-26)

$6.49

$

In Stock, only 1 left!

0

15

Toro 109950

SPACER

$19.99

$

Usually ships in 3-6 days

0

16

Toro 109859

BUSHING

$15.99

$

Usually ships in 3-6 days

0

17

Toro 78-5850

BRACE R

$

$

Not available

18

Toro 120240

PULLEY-SPINDLE

$88.99

$

In Stock, only 1 left!

0

19

Toro 121330

BELT-V

$120.99

$

Usually ships in 3-6 days

0

20

Toro 3296-41

NUT-LOCK NI

$6.49

$

In Stock, Qty 5

0

21

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

22

Toro 116790

PLATE-RETAINING R

$

$

Not available

23

Toro 78-6210

SPRING-EXTENSION

$

$

Not available

24

Toro 920237

Washer
(Superseded to 9202374)

$0.99

$

Usually ships in 3-6 days

0

25

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

26

Toro 120671

WLDMT-HEIGHT ADJ R

$

$

Not available

27

Toro 7736

STUD-TRUNION

$50.99

$

Usually ships in 3-6 days

0

28

Toro 78-8321

WLDMT-LIFT LEVER R

$

$

Not available

29

Toro 933190

PIN-SPIROL

$

$

Not available

30

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 9

0

31

Toro 8722

KNOB

$21.99

$

In Stock, only 3 left!

0

32

Toro 8693

KNOB

$5.99

$

In Stock, Qty 10

0

33

Toro 911747

BOLT-4

$4.99

$

In Stock, Qty 10

0

34

Toro 111655

DECAL-HOC

$3.49

$

Usually ships in 3-6 days

0

35

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

36

Toro 106318

Lever

$

$

Not available

37

Toro 78-1980

QUADRANT R

$

$

Not available

38

Toro 920216

Washer
(Superseded to 9202164)

$3.49

$

Usually ships in 3-6 days

0

39

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

40

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

41

Toro 61-9760

WHEEL-DECK

$44.99

$

In Stock, only 1 left!

0

42

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

43

Toro 54-0210

BEARING SPACER
(Superseded to 55-7680)

$

$

Not available

44

Toro 79-1050

Housing-Spindle
(Superseded to 79-1050-03)

$230.99

$

Usually ships in 3-6 days

0

45

Toro 3796

Fitting-Grease
(Superseded to 302-16)

$8.49

$

Usually ships in 3-6 days

0

46

Toro 47-0092

W.A.-SPINDLE SHAFT

$

$

Not available

47

Toro 79-1090

BEARING-BALL
(Superseded to 251-318)

$17.99

$

In Stock, only 3 left!

0

48

Toro 32120-11

RING-RETAINING
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 20+

0

49

Toro 7-3522

Cup
(Superseded to 92-6313)

$45.99

$

In Stock, only 1 left!

0

50

Toro 47-0110

SPACER-SPINDLE

$1.99

$

Usually ships in 3-6 days

0

51

Toro 79-3060

Blade
(Superseded to 14-7799)

$62.99

$

In Stock, Qty 9

0

52

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 20+

0

53

Toro 908044

Bolt 3/8-16 x 4
(Superseded to 323-16)

$3.49

$

In Stock, Qty 20+

0

54

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

55

Toro 110369

SPACER

$

$

Not available

56

Toro 908041

Bolt
(Superseded to 323-13)

$1.99

$

In Stock, Qty 16

0

57

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.49

$

In Stock, Qty 6

0

58

Toro 29-4820

ROLLER

$16.99

$

In Stock, Qty 6

0

59

Toro 120610

LATCH B
(Superseded to 120610-03)

$

$

Not available

60

Toro 119740

Deflector
(Superseded to 119740-01)

$

$

Not available

61

Toro 119691

SPRING-TORSION

$

$

Not available

62

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

63

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0
