R5-38SL02 - Toro 38" Recycler Mower Deck (SN: 020000001 - 029999999) (1992)

38" Recycler Mower Deck

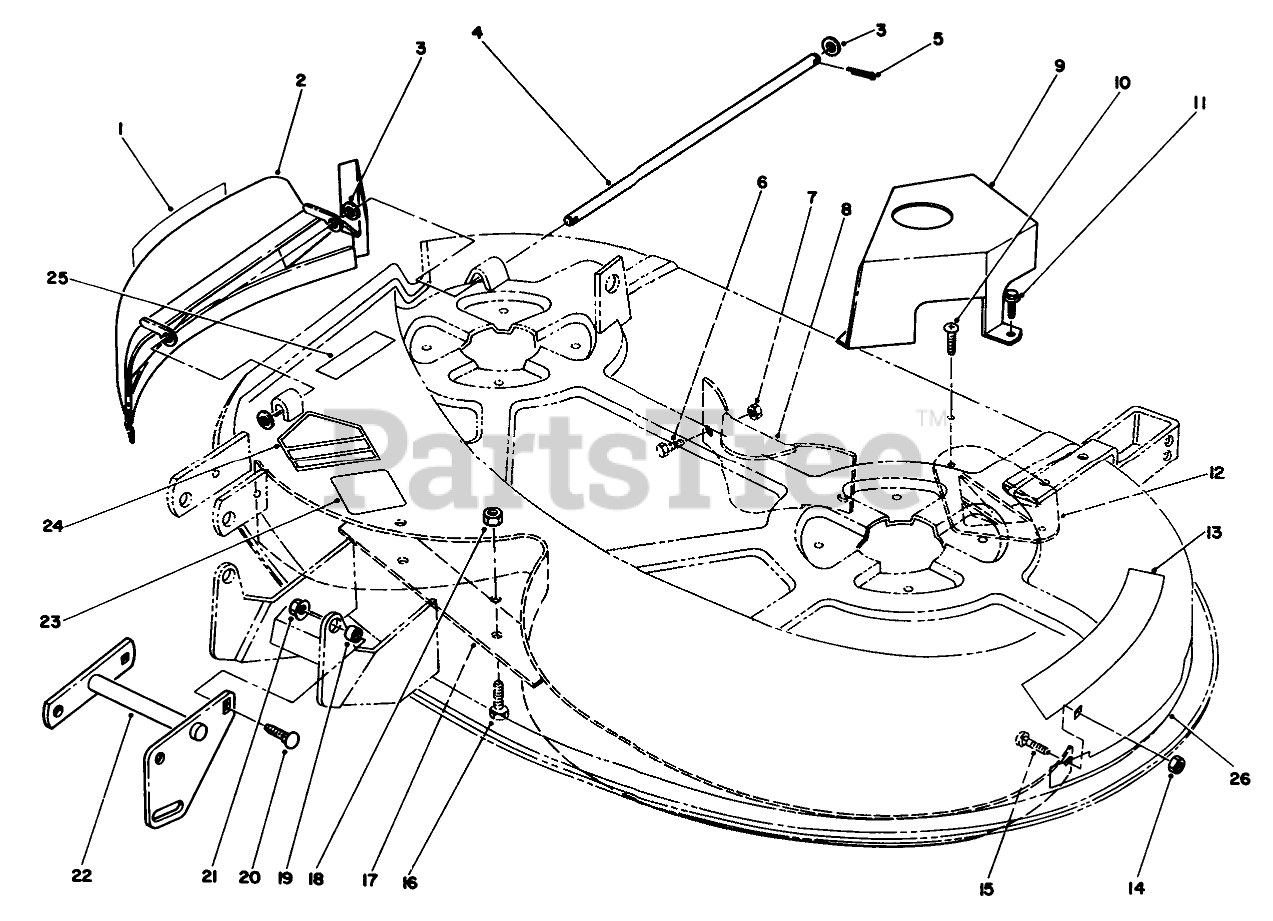

R5-38SL02 - Toro 38" Recycler Mower Deck (SN: 020000001 - 029999999) (1992) > Parts Diagrams (2) > BAFFLE & COVER ASSEMBLY

  • Title
66-1340

1

DECAL-DANGER, THROWN OBJECT

Part# 66-1340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.01

79-1680

2

Chute-Recycler

Part# 79-1680 (Superseded to 92-5787)

OEM Warranty Repair Part for Toro

Not available

920008

3

WASHER 5/16 SAE

Part# 920008

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.36

78-0820

4

ROD

Part# 78-0820

OEM Warranty Repair Part for Toro

Not available

932008

5

Cotter Pin

Part# 932008 (Superseded to 3272-6)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.24

908002

6

H H C S

Part# 908002 (Superseded to 321-3)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.01

915661

7

Nut

Part# 915661 (Superseded to 3296-42)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.36

79-1640

8

Baffle-Rear

Part# 79-1640 (Superseded to 79-1640-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $41.84

78-0830

9

COVER-BELT R

Part# 78-0830

OEM Warranty Repair Part for Toro

Not available

32104-130

10

#8 X .625" PHILPS PAN H

Part# 32104-130

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.20

32104-76

11

SCREW-HWHTF

Part# 32104-76

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.05

76-2160

12

PLATE-KICKER

Part# 76-2160

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.93

79-3140

13

DECAL-DANGER

Part# 79-3140

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.67

915662

14

Nut

Part# 915662 (Superseded to 3296-29)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.87

900037

15

Bolt

Part# 900037 (Superseded to 3230-1)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.29

908033

16

Bolt

Part# 908033 (Superseded to 110242)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.43

79-1600

17

Baffle-38"

Part# 79-1600 (Superseded to 79-1600-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $65.52

915663

18

NUT

Part# 915663 (Superseded to 3296-39)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.11

102704

19

SPACER

Part# 102704

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.59

900234

20

Bolt-Carriage

Part# 900234 (Superseded to 3231-22)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.56

10280

21

Nut-Hex Flange Lock

Part# 10280

OEM Warranty Repair Part for Toro

Currently unavailable

114837

22

ASM-FRONT LIFT R

Part# 114837

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $100.29

117137

23

Decal-Routing

Part# 117137 (Superseded to 117-0033)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.41

54-9220

24

DECAL-DANGER

Part# 54-9220 (Superseded to 93-1122)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.06

66-6380

25

DECAL-DANGER

Part# 66-6380

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.48

79-1311

26

DECAL-38" RECYCLER

Part# 79-1311 (Superseded to 92-9520)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $26.87
