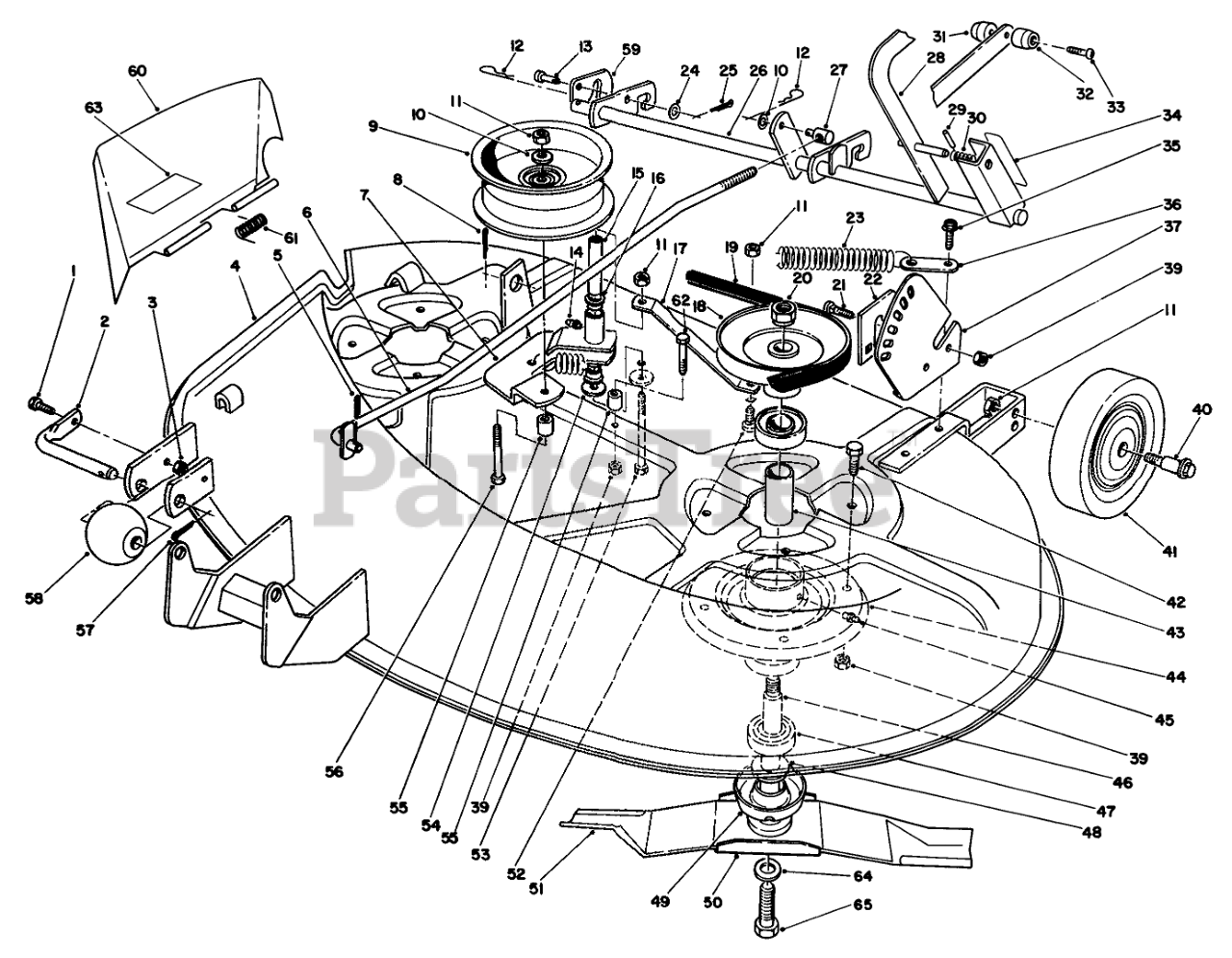

R5-38SL02 - Toro 38" Recycler Mower Deck (SN: 020000001 - 029999999) (1992) > Parts Diagrams (2) > SPINDLE & HEIGHT OF CUT ASSEMBLY

  • Title
321-4

1

SCREW-HH

Part# 321-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.81

118960

2

SHAFT-ROLLER

Part# 118960 (Superseded to 118960-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $26.55

3296-42

3

NUT-LOCK, NI

Part# 3296-42

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.36

14-7219

4

DECK W/DECALS

Part# 14-7219

OEM Warranty Repair Part for Toro

Not available

32121-103

5

PIN-SPRING

Part# 32121-103

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.19

120551

6

WLDMT-HEIGHT ADJ R

Part# 120551

OEM Warranty Repair Part for Toro

Not available

78-5860

7

WLDMT-IDLER ARM R

Part# 78-5860

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $83.77

3272-17

8

PIN-COTTER

Part# 3272-17

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.34

109450

9

PULLEY-IDLER

Part# 109450 (Superseded to 94-4935)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $77.30

3256-24

10

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.51

3296-39

11

NUT-LOCK, NI

Part# 3296-39

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.11

933505

12

Hairpin Cotter

Part# 933505 (Superseded to 9335054)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

932960

13

PIN

Part# 932960

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.49

302-26

14

FITTING-GREASE

Part# 302-26

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.34

109950

15

SPACER

Part# 109950

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $13.85

109859

16

BUSHING

Part# 109859

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.96

78-5850

17

BRACE R

Part# 78-5850

OEM Warranty Repair Part for Toro

Not available

79-3810

18

PULLEY R

Part# 79-3810

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $113.21

121330

19

BELT-V

Part# 121330

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $84.58

915007

20

Nut

Part# 915007 (Superseded to 3219-7)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.52

3230-1

21

BOLT-CARR

Part# 3230-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.29

116790

22

PLATE-RETAINING R

Part# 116790

OEM Warranty Repair Part for Toro

Not available

78-6210

23

SPRING-EXTENSION

Part# 78-6210

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $18.97

920237

24

Washer

Part# 920237 (Superseded to 9202374)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.36

3272-6

25

PIN-COTTER

Part# 3272-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.24

120671

26

WLDMT-HEIGHT ADJ R

Part# 120671

OEM Warranty Repair Part for Toro

Not available

7736

27

STUD-TRUNION

Part# 7736

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.68

78-8321

28

WLDMT-LIFT LEVER R

Part# 78-8321

OEM Warranty Repair Part for Toro

Not available

933190

29

PIN-SPIROL

Part# 933190

OEM Warranty Repair Part for Toro

Not available

101853

30

SPRING-COMPRESSION

Part# 101853

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.93

8722

31

KNOB

Part# 8722

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $14.19

8693

32

KNOB

Part# 8693

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.18

911747

33

BOLT-4

Part# 911747

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.15

111655

34

DECAL-HOC

Part# 111655

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.26

926715

35

Bolt

Part# 926715 (Superseded to 9267154)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.29

106318

36

Lever

Part# 106318

OEM Warranty Repair Part for Toro

Not available

78-1980

37

QUADRANT R

Part# 78-1980

OEM Warranty Repair Part for Toro

Not available

3296-29

39

NUT-LOCK, NI

Part# 3296-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.87

56-6590

40

BOLT-WHEEL

Part# 56-6590 (Superseded to 136-7198)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.14

61-9760

41

WHEEL-DECK

Part# 61-9760

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $30.86

322-3

42

SCREW-HH

Part# 322-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.69

79-2780

43

SPACER

Part# 79-2780

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $13.95

79-1050

44

Housing-Spindle

Part# 79-1050 (Superseded to 79-1050-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $161.51

302-16

45

ZERK FITTING

Part# 302-16

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.67

80-4350

46

SHAFT-SPINDLE

Part# 80-4350

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $51.84

79-1090

47

BEARING-BALL

Part# 79-1090 (Superseded to 251-318)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $13.94

80-4390

48

SPACER-HARDNED

Part# 80-4390

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.62

80-4370

49

SHIELD-BEARING

Part# 80-4370

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.46

47-0110

50

SPACER-SPINDLE

Part# 47-0110

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $10.62

79-3061

51

Blade

Part# 79-3061 (Superseded to 14-7799)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $57.70

3231-2

52

BOLT-CARR

Part# 3231-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.41

323-16

53

SCREW-HH

Part# 323-16

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.19

2844

54

WASHER

Part# 2844

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.14

110369

55

SPACER

Part# 110369

OEM Warranty Repair Part for Toro

Not available

323-13

56

SCREW-HH

Part# 323-13

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.91

3272-21

57

PIN-COTTER

Part# 3272-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.26

29-4820

58

ROLLER

Part# 29-4820

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.54

120610

59

LATCH B

Part# 120610 (Superseded to 120610-03)

OEM Warranty Repair Part for Toro

Not available

14-7229

60

DEFLECTOR W/ DECAL

Part# 14-7229

OEM Warranty Repair Part for Toro

Not available

119691

61

SPRING-TORSION

Part# 119691

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $73.61

322-6

62

SCREW-HH

Part# 322-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.19

66-1340

63

DECAL-DANGER, THROWN OBJECT

Part# 66-1340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.01

3290-465

64

WASHER-BELLEVILLE

Part# 3290-465

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.19

26-0671

65

SCREW-HH

Part# 26-0671

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.61
