R5-38SS01 - Toro 38" Recycler Mower Deck (SN: 010000001 - 019999999) (1991) CUTTING UNIT ASSEMBLY Parts Diagram

38" Recycler Mower Deck

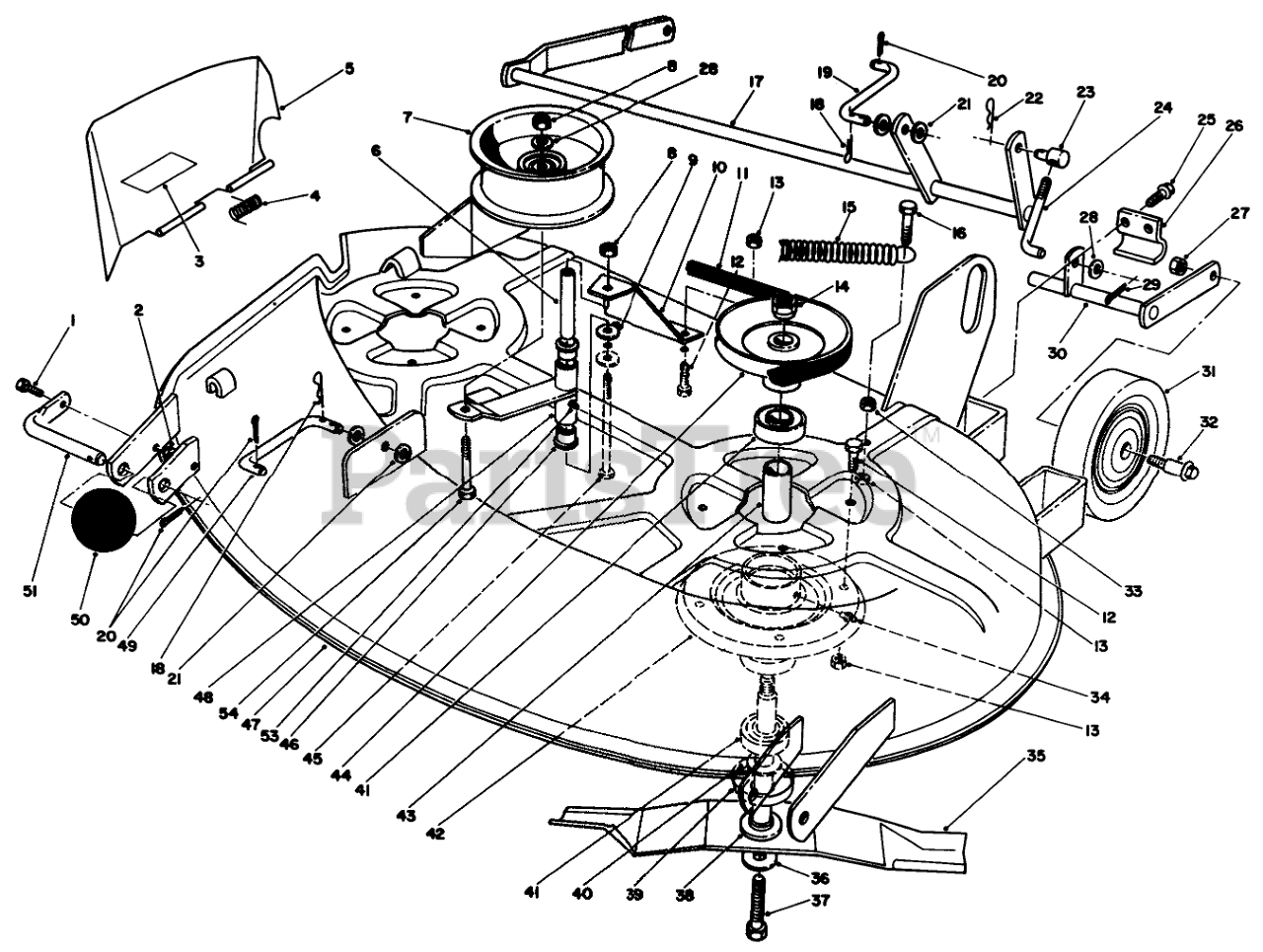

CUTTING UNIT ASSEMBLY Parts Diagram

  • Title

1

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

2

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

3

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

4

Toro 119691

SPRING-TORSION

$

$

Not available

5

Toro 119740

Deflector
(Superseded to 119740-01)

$

$

Not available

6

Toro 109950

SPACER

$

$

Not available

7

Toro 78-8250

Pulley-Idler
(Superseded to 92-7082)

$146.99

$

In Stock, only 2 left!

0

8

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

9

Toro 2844

WASHER

$3.49

$

In Stock, Qty 14

0

10

Toro 78-8090

BRACE R

$

$

Not available

11

Toro 79-1930

V-Belt
(Superseded to 79-5980)

$45.99

$

In Stock, only 2 left!

0

12

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

13

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

14

Toro 915007

Nut
(Superseded to 3219-7)

$1.99

$

In Stock, only 2 left!

0

15

Toro 78-6210

SPRING-EXTENSION

$

$

Not available

16

Toro 908020

Bolt
(Superseded to 322-6)

$4.49

$

In Stock, Qty 20+

0

17

Toro 78-8011

Shaft-R.H.
(Superseded to 78-8011-03)

$160.99

$

Usually ships in 3-6 days

0

18

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 9

0

19

Toro 78-8071

LINK-REAR

$63.99

$

Usually ships in 3-6 days

0

20

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.99

$

In Stock, only 3 left!

0

21

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

22

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 5

0

23

Toro 110656

TRUNNION
(Superseded to 101161)

$

$

Not available

24

Toro 121010

ROD-LIFT

$28.99

$

Usually ships in 3-6 days

0

25

Toro 926715

Bolt
(Superseded to 9267154)

$3.99

$

In Stock, Qty 6

0

26

Toro 78-6400

Camp
(Superseded to 78-6400-03)

$

$

Not available

27

Toro 915113

Nut
(Superseded to 32153-2)

$

$

Not available

28

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

29

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

30

Toro 78-7991

Shaft-L.H.
(Superseded to 78-7991-01)

$

$

Not available

31

Toro 110506

WHEEL

$39.99

$

In Stock, Qty 10

0

32

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 15

0

33

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

34

Toro 3796

Fitting-Grease
(Superseded to 302-16)

$

$

Not available

35

Toro 79-3060

Blade
(Superseded to 14-7799)

$67.99

$

In Stock, only 2 left!

0

36

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

37

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 12

0

38

Toro 80-4351

SHAFT-SPINDLE

$195.99

$

In Stock, only 1 left!

0

39

Toro 80-4370

SHIELD-BEARING

$19.99

$

In Stock, only 1 left!

0

40

Toro 80-4390

SPACER-HARDNED

$4.99

$

Usually ships in 3-6 days

0

41

Toro 79-1090

BEARING-BALL
(Superseded to 251-318)

$21.99

$

Usually ships in 3-6 days

0

42

Toro 79-1050

Housing-Spindle
(Superseded to 79-1050-03)

$

$

Not available

43

Toro 79-2780

SPACER

$24.99

$

In Stock, only 1 left!

0

44

Toro 78-6042

Pulley-Spindle
(Superseded to 92-7081)

$

$

Not available

45

Toro 908044

Bolt 3/8-16 x 4
(Superseded to 323-16)

$3.49

$

In Stock, Qty 6

0

46

Toro 109859

BUSHING

$19.99

$

Usually ships in 3-6 days

0

47

Toro 79-2170

Deck-Cutting Unit
(Superseded to 92-8015)

$

$

Not available

48

Toro 78-3370

Arm-Idler
(Superseded to 78-3370-01)

$

$

Not available

49

Toro 78-6701

LINK-FRONT

$

$

Not available

50

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0

51

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$49.99

$

In Stock, only 2 left!

0

53

Toro MW1455

Grease Zerk
(Superseded to 302-26)

$7.49

$

Usually ships in 3-6 days

0

54

Toro 908038

Bolt
(Superseded to 323-10)

$1.49

$

In Stock, Qty 9

0
