R5-38SY01 - Toro 38" Recycler Mower Deck (SN: 010000001 - 019999999) (1991) BAFFLE ASSEMBLY Parts Diagram

38" Recycler Mower Deck

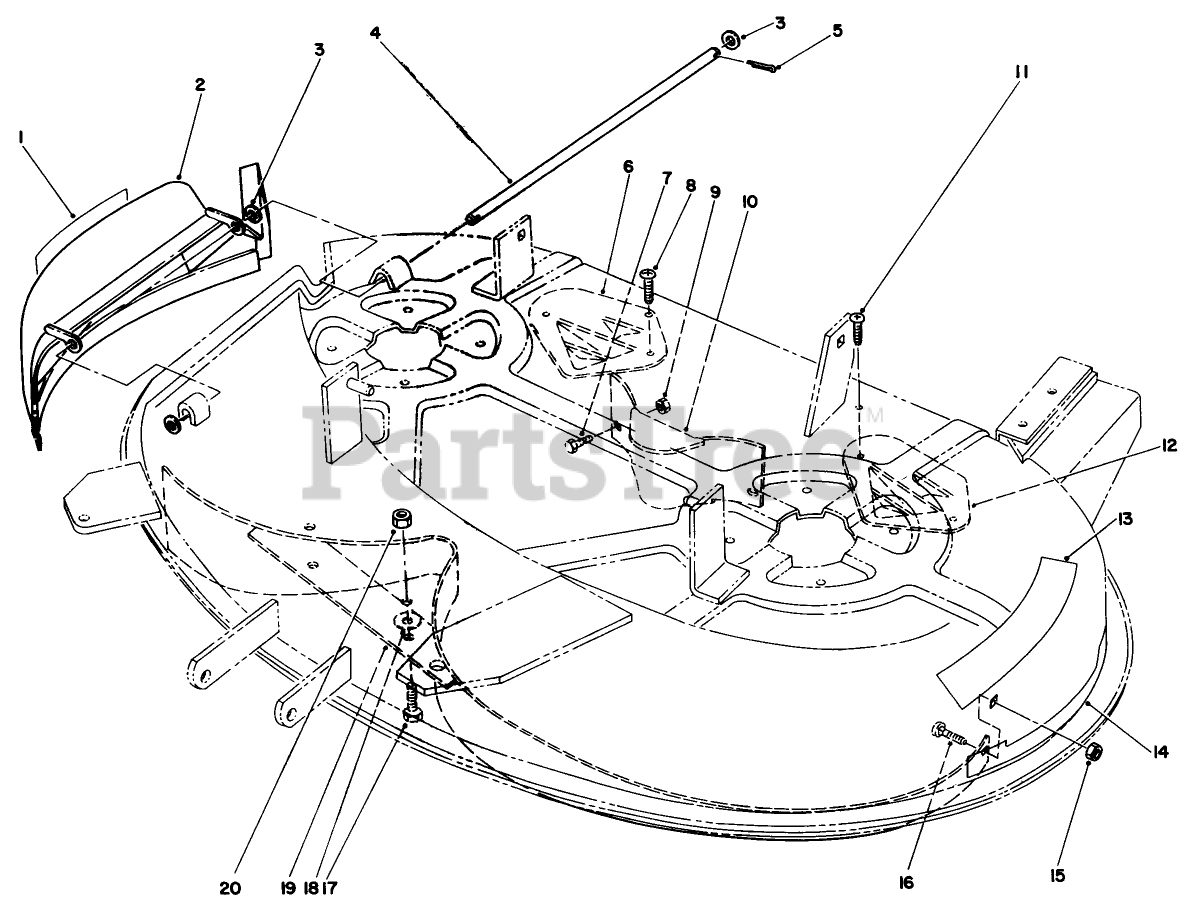

BAFFLE ASSEMBLY Parts Diagram

  • Title

1

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 4 left!

0

2

Toro 79-1680

Chute-Recycler
(Superseded to 92-5787)

$

$

Not available

3

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, only 2 left!

0

4

Toro 78-0820

ROD

$

$

Not available

5

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

6

Toro 80-4510

KICKER

$19.99

$

Usually ships in 3-6 days

0

7

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 15

0

8

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 12

0

9

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

10

Toro 79-1640

Baffle-Rear
(Superseded to 79-1640-03)

$59.99

$

Usually ships in 3-6 days

0

11

Toro 32104-130

#8 X .625" PHILPS PAN H

$1.99

$

Usually ships in 3-6 days

0

12

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

13

Toro 79-3140

DECAL-DANGER

$15.99

$

Usually ships in 3-6 days

0

14

Toro 79-1311

DECAL-38" RECYCLER
(Superseded to 92-9520)

$38.99

$

Usually ships in 3-6 days

0

15

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

16

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

17

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 7

0

18

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

19

Toro 79-1600

Baffle-38"
(Superseded to 79-1600-03)

$94.99

$

Usually ships in 3-6 days

0

20

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0
