R5-42RC01 - Toro 42" Recycler Mower Deck (SN: 010000001 - 019999999) (1991) Deck Belt Pulleys Parts Diagram

42" Recycler Mower Deck

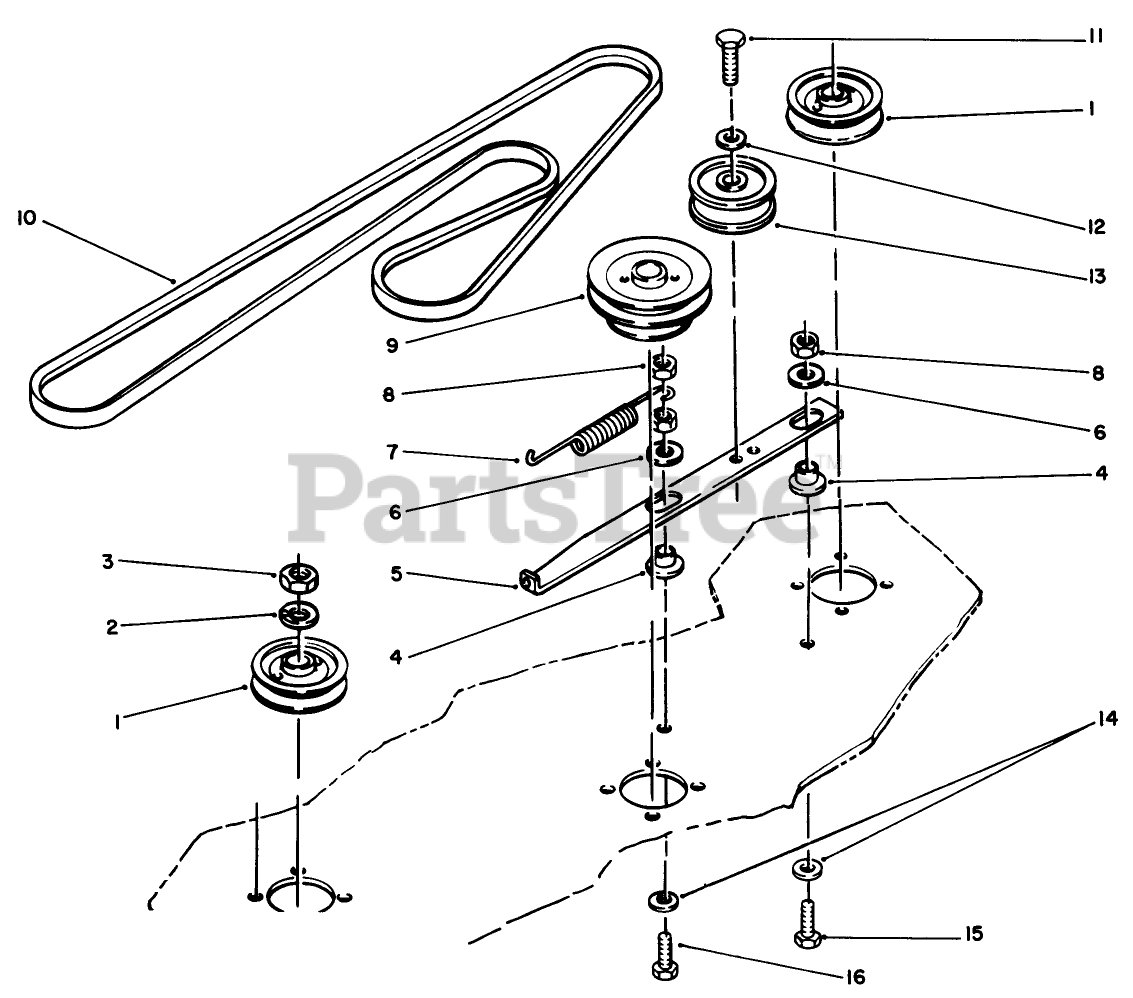

Deck Belt Pulleys Parts Diagram

  • Title

1

Toro 109967

PULLEY

$87.99

$

In Stock, only 1 left!

0

2

Toro 920087

See Supercession: 3253-8
(Superseded to 3253-8)

$0.99

$

In Stock, Qty 20+

0

3

Toro 915089

See Supercession: 3220-6
(Superseded to 3220-6)

$1.49

$

In Stock, Qty 7

0

4

Toro 107674

SPACER-BUSHING

$2.49

$

In Stock, Qty 20+

0

5

Toro 106120

BAR-IDLER SUPPORT

$83.99

$

In Stock, only 2 left!

0

6

Toro 107675

WASHER

$3.49

$

In Stock, Qty 20+

0

7

Toro 100071

SPRING-EXTENSION

$12.99

$

In Stock, only 3 left!

0

8

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

9

Toro 110148

PULLEY

$131.99

$

In Stock, only 2 left!

0

10

Toro 106125

V-BELT

$39.99

$

In Stock, only 2 left!

0

11

Toro 908035

See Supercession: 323-7
(Superseded to 323-7)

$3.49

$

In Stock, Qty 20+

0

12

Toro 920083

See Supercession: 3253-21
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 7

0

13

Toro 112425

See Supercession: 92-7101
(Superseded to 92-7101)

$44.99

$

In Stock, only 2 left!

0

14

Toro 2844

WASHER

$3.49

$

In Stock, Qty 12

0

15

Toro 908035

See Supercession: 323-7
(Superseded to 323-7)

$3.49

$

In Stock, Qty 20+

0

16

Toro 908037

See Supercession: 323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0
