R5-42RC01 - Toro 42" Recycler Mower Deck (SN: 010000001 - 019999999) (1991) Deck Cover Assembly Parts Diagram

42" Recycler Mower Deck

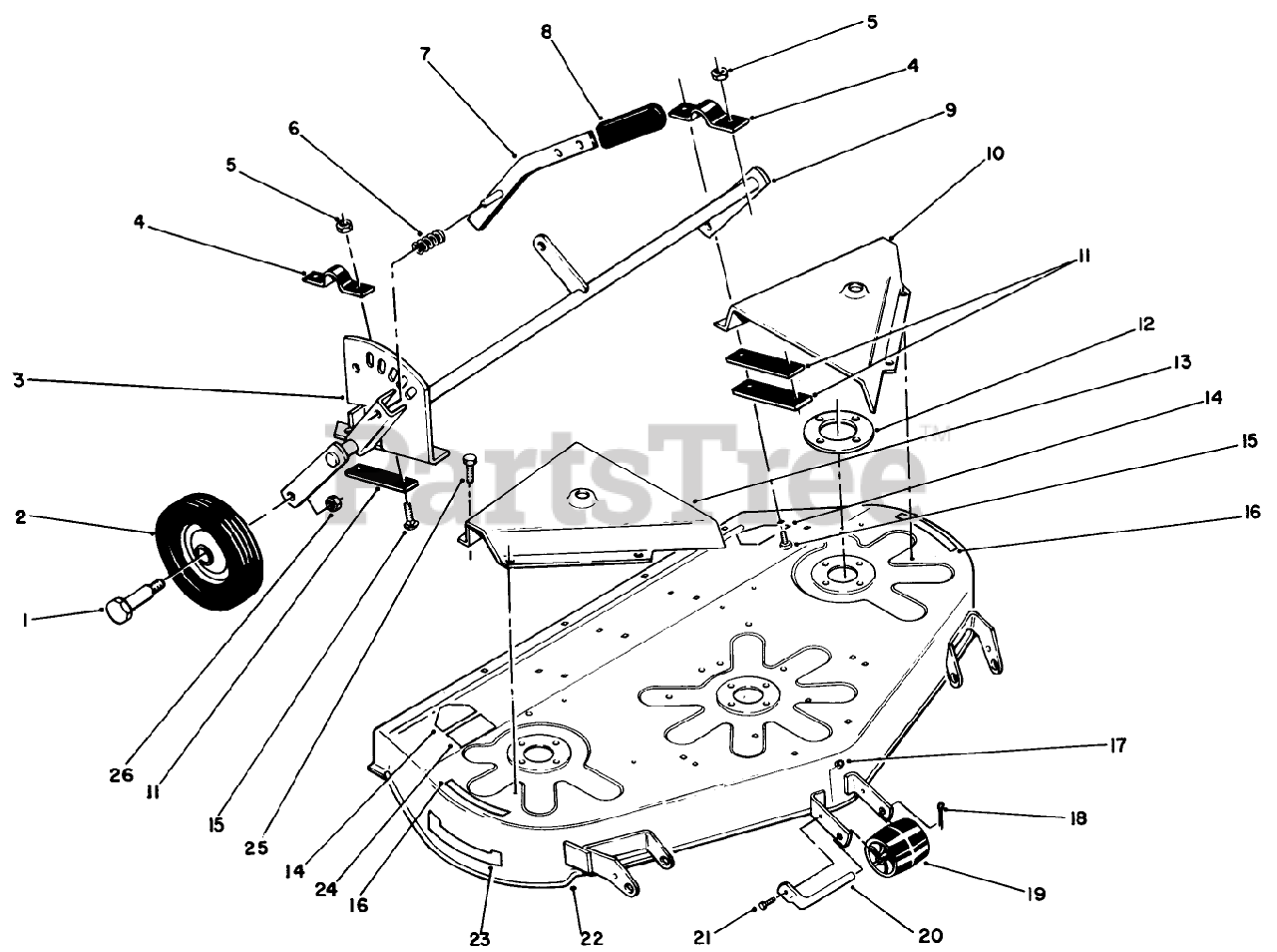

Deck Cover Assembly Parts Diagram

  • Title

1

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 13

0

2

Toro 110506

WHEEL

$39.99

$

In Stock, Qty 8

0

3

Toro 106392

See Supercession: 106392-01
(Superseded to 106392-01)

$36.99

$

In Stock, only 3 left!

0

4

Toro 110841

CLAMP

$9.49

$

Usually ships in 3-6 days

0

5

Toro 915663

See Supercession: 3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

6

Toro 101853

SPRING-COMPRESSION

$32.99

$

In Stock, only 3 left!

0

7

Toro 115213

See Supercession: 115213-01
(Superseded to 115213-01)

$34.99

$

In Stock, only 1 left!

0

8

Toro 103712

GRIP

$9.49

$

Usually ships in 3-6 days

0

9

Toro 115053

See Supercession: 79-5360-01
(Superseded to 79-5360-01)

$201.99

$

Usually ships in 3-6 days

0

10

Toro 106638

See Supercession: 106638-01
(Superseded to 106638-01)

$70.99

$

Usually ships in 3-6 days

0

11

Toro 110840

See Supercession: 110840-03
(Superseded to 110840-03)

$23.99

$

In Stock, only 1 left!

0

12

Toro 106408

DISCONTINUED

$

$

Not available

13

Toro 116426

See Supercession: 116426-01
(Superseded to 116426-01)

$91.99

$

Usually ships in 3-6 days

0

14

Toro 43-8480

DECAL-DANGER

$7.49

$

In Stock, only 3 left!

0

15

Toro 900064

See Supercession: 3231-25
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

16

Toro 76-4070

DECAL - DANGER

$

$

Not available

17

Toro 915661

See Supercession: 3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

18

Toro 932034

See Supercession: 3272-21
(Superseded to 3272-21)

$3.99

$

In Stock, only 3 left!

0

19

Toro 108798

See Supercession: 94-1599
(Superseded to 94-1599)

$14.99

$

In Stock, only 2 left!

0

20

Toro 110847

ROLLER-SHAFT

$30.99

$

In Stock, Qty 5

0

21

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

22

Toro 116965

See Supercession: 92-7292
(Superseded to 92-7292)

$1815.99

$

Usually ships in 3-6 days

0

23

Toro 79-1301

See Supercession: 92-9523
(Superseded to 92-9523)

$

$

Not available

24

Toro 106748

DECAL-HEIGHT & BELT

$12.99

$

In Stock, only 1 left!

0

25

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

26

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

Toro 810819

OPERATOR'S-MANUAL

$7.49

$

Usually ships in 3-6 days

0
