R5-42RC01 - Toro 42" Recycler Mower Deck (SN: 010000001 - 019999999) (1991) DECK & COVER ASSEMBLY Parts Diagram

42" Recycler Mower Deck

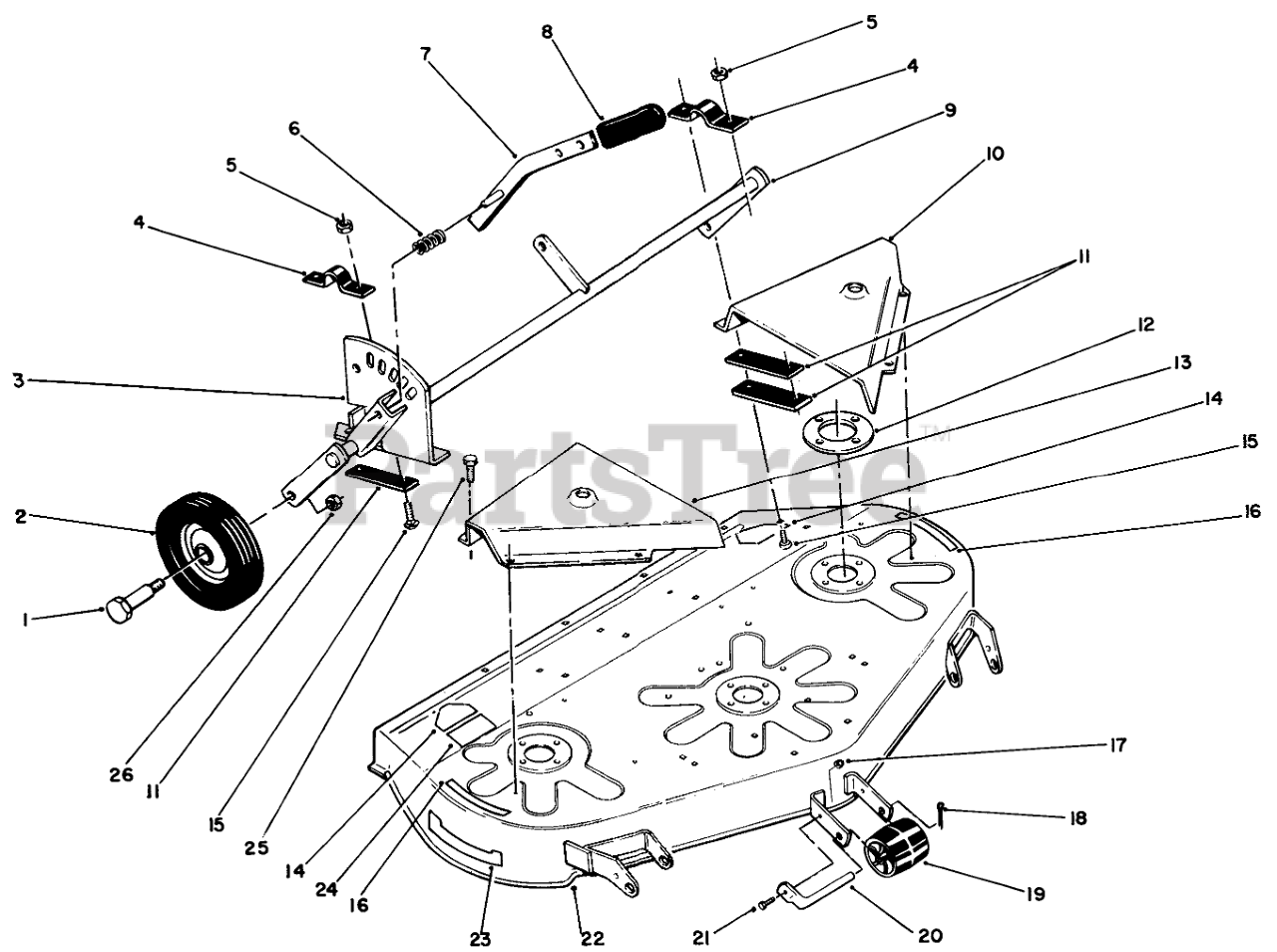

DECK & COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 7

0

2

Toro 110506

WHEEL

$37.99

$

In Stock, Qty 15

0

3

Toro 106392

Quadrant
(Superseded to 106392-01)

$32.99

$

Usually ships in 3-6 days

0

4

Toro 110841

Camp

$8.99

$

Usually ships in 3-6 days

0

5

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

6

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 9

0

7

Toro 115213

Lever
(Superseded to 115213-01)

$29.99

$

Usually ships in 3-6 days

0

8

Toro 103712

GRIP

$9.49

$

In Stock, only 3 left!

0

9

Toro 115053

Gage Wheel Support
(Superseded to 79-5360-01)

$186.99

$

Usually ships in 3-6 days

0

10

Toro 106638

Belt Cover LH
(Superseded to 106638-01)

$62.99

$

Usually ships in 3-6 days

0

11

Toro 110840

Bar
(Superseded to 110840-03)

$22.99

$

In Stock, only 1 left!

0

12

Toro 106408

Plate-Spindle

$

$

Not available

13

Toro 116426

Belt Cover RH
(Superseded to 116426-01)

$69.99

$

Usually ships in 3-6 days

0

14

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

15

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 16

0

16

Toro 76-4070

DECAL - DANGER

$19.99

$

Usually ships in 3-6 days

0

17

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

18

Toro 932034

Cotter Pin
(Superseded to 3272-21)

$3.49

$

In Stock, Qty 6

0

19

Toro 108798

Roller
(Superseded to 94-1599)

$12.99

$

In Stock, Qty 9

0

20

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 1 left!

0

21

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

22

Toro 116965

Deck-Mower
(Superseded to 92-7292)

$1586.99

$

Usually ships in 3-6 days

0

23

Toro 79-1301

DECAL-42" RECYCLER
(Superseded to 92-9523)

$

$

Not available

24

Toro 106748

DECAL-HEIGHT & BELT

$10.99

$

In Stock, only 4 left!

0

25

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 16

0

26

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

Toro 810819

OPERATOR'S-MANUAL

$6.99

$

Usually ships in 3-6 days

0
