R5000 (8896-0) - Generac 5,000 Watt Portable Generator Mounting Base No. 68873-E Model No. 8896-0 Parts Diagram

5,000 Watt Portable Generator

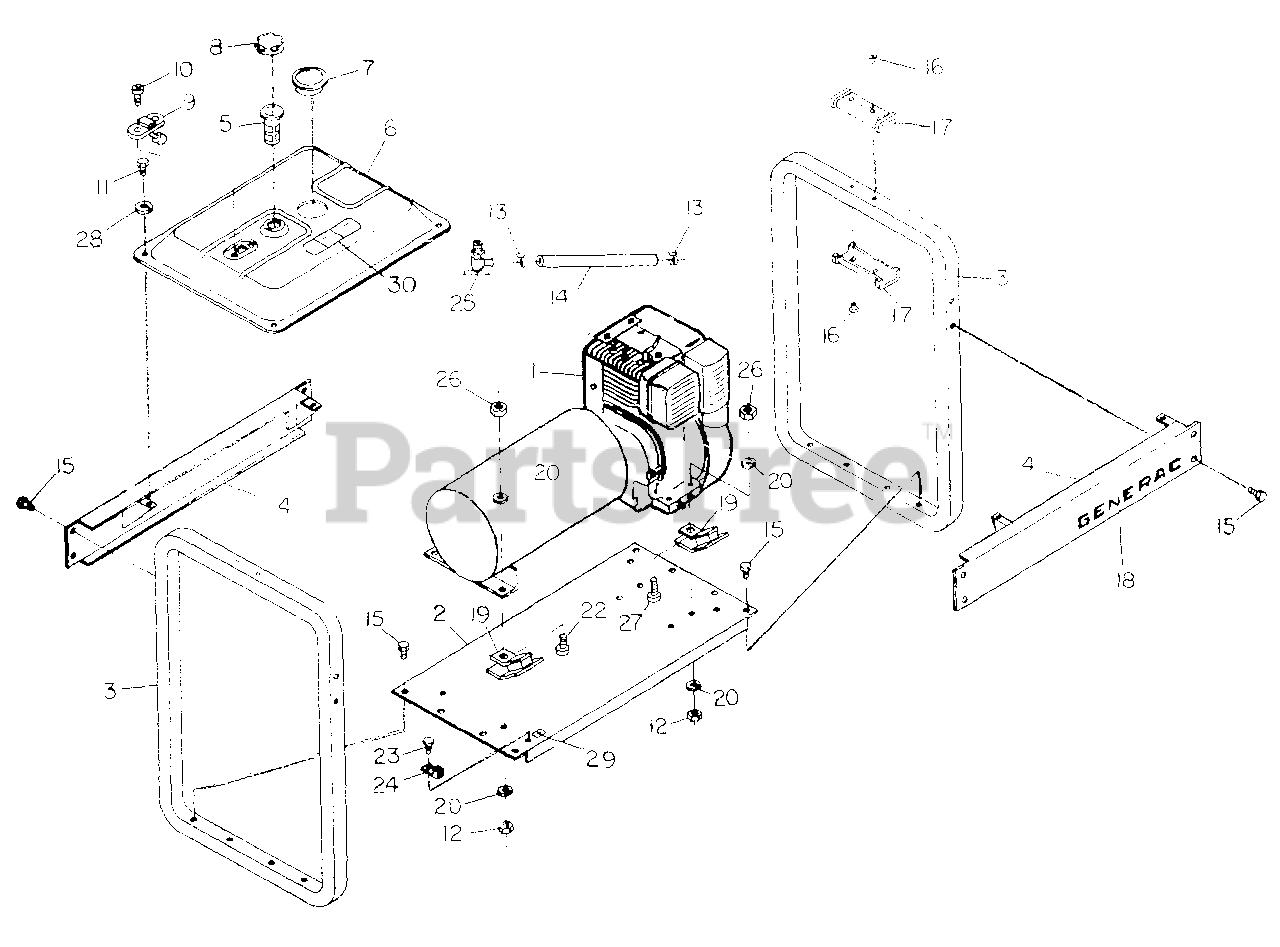

Mounting Base No. 68873-E Model No. 8896-0 Parts Diagram

  • Title

1

Briggs & Stratton 70671

ENGINE- Robin Model WI-390 11 HP Manual Start

Note: (R5000 Only)

$

$

Currently unavailable

2

Briggs & Stratton 70665A

BASE, Mounting

Note: (R5000 Only)

$

$

Currently unavailable

3

Briggs & Stratton 70603

LOOP, Cradle End

$

$

Currently unavailable

4

Briggs & Stratton 70636

SUPPORT, Fuel Tank- LH

$

$

Currently unavailable

4

Briggs & Stratton 70636A

SUPPORT, Fuel Tank- RH

$

$

Currently unavailable

5

Briggs & Stratton 70630

STRAINER, Fuel Fill

$

$

Currently unavailable

6

Briggs & Stratton 69662

TANK, Fuel- 4.5 U.S. Gallons

Note: (17 liters)

$

$

Currently unavailable

7

Briggs & Stratton 64680B

COVER, Spark Plug Access
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 69658

CAP, Fuel Tank

$

$

Currently unavailable

9

Briggs & Stratton 66391B

GAUGE, Fuel Level

$

$

Not available

10

Briggs & Stratton 52749

SCREW- M5-0.80 x 12mm

$

$

Currently unavailable

11

Briggs & Stratton 33120

SCREW- No. 10-32 x 3/8"

$

$

Currently unavailable

12

Briggs & Stratton 45771

NUT, Hex - M8- 1.25

$

$

Not available

13

Briggs & Stratton 48031C

CLAMP, Fuel Line- 1/4"

$

$

Not available

14

Briggs & Stratton 47662A

HOSE, Fuel- 1/4" ID x 12" long

$

$

Not available

15

Briggs & Stratton 58442

SCREW (Crimptite)- 1/4"-20 x 1/2"

$

$

Currently unavailable

16

Briggs & Stratton 66381

RIVET- 4mm

$

$

Currently unavailable

17

Briggs & Stratton 66450

HANDLE- Plastic

$

$

Not available

18

Briggs & Stratton 56318A

DECAL- Generac Logo

$

$

Currently unavailable

19

Briggs & Stratton 70642

MOUNT, Vibration
(Superseded to 70642GS)

Note: (R5000)

$31.99

$

In Stock, only 3 left!

0

20

Briggs & Stratton 22129

LOCKWASHER- 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 22128

SCREW- 5/16"-18 x 1-1/4"

$

$

Currently unavailable

22

Briggs & Stratton 64183

SCREW, Pan Head- 5/16"-18 x 3/4"

$

$

Currently unavailable

23

Briggs & Stratton 24489

SCREW (Taptite)-No. 10-32 x 3/8"

$

$

Currently unavailable

24

Briggs & Stratton 25433

LUG, Grounding

$

$

Not available

25

Briggs & Stratton 27734

VALVE, Fuel Shutoff
(Superseded to 27734GS)

$11.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 71729

SCREW, Pan Head- 5/16"-18 x 2"
(Superseded to 71729GS)

Note: (R5000 Only)

$6.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 22152

LOCKWASHER- No. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 67210A

DECAL- Ground
(Superseded to 67210AGS)

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 70687

DECAL- Caution!

$

$

Currently unavailable
