R5002B (85220) - Snapper Rear-Tine Tiller, 5hp Frame Components (Left Side) (5 HP) Parts Diagram

Rear-Tine Tiller, 5hp

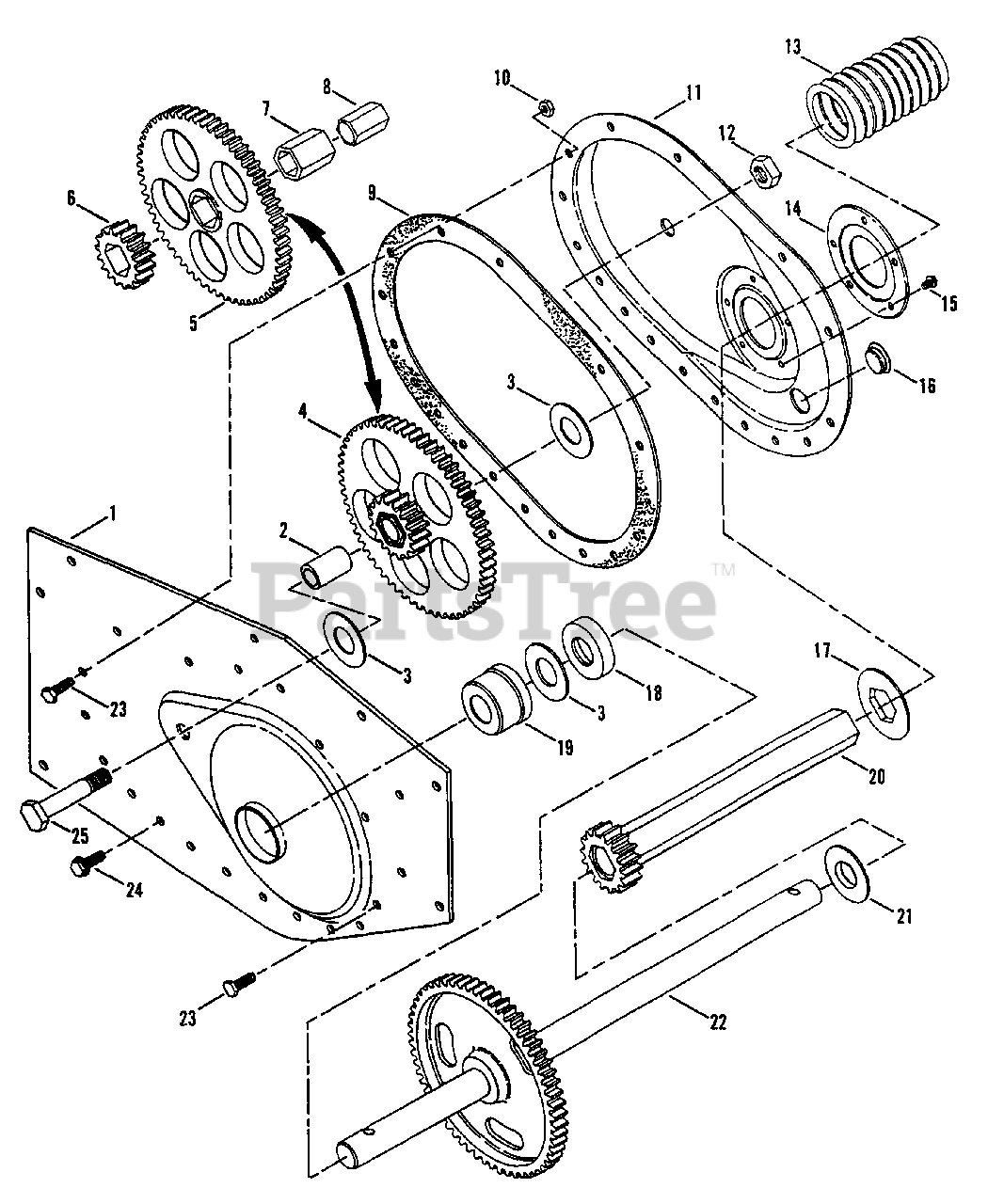

Frame Components (Left Side) (5 HP) Parts Diagram

  • Title

--

Snapper 7051377

* ASSEMBLY, Drive (5 HP Units)
(Superseded to 7051377YP)

$845.99

$

Usually ships in 2-12 days

0

1

Snapper 7035021

FRAME, Left Side

$

$

Not available

2

Snapper 7021870

SHAFT
(Superseded to 7021870YP)

$7.49

$

Usually ships in 2-12 days

0

3

Snapper 7011071

WASHER, Thrust
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

4

Snapper 7051378

ASSEMBLY, Cluster Gear
(Superseded to 7051378YP)

Note: (Includes items 5, 6, 7, & 8)

$119.99

$

Usually ships in 2-12 days

0

5

Snapper 7018564

GEAR, 63 Tooth
(Superseded to 7018564YP)

$48.99

$

Usually ships in 2-12 days

0

6

Snapper 7021868

GEAR, 16 Tooth
(Superseded to 7021868YP)

$17.99

$

Usually ships in 2-12 days

0

7

Snapper 7021872

TUBE, Hex
(Superseded to 7021872YP)

$8.99

$

Usually ships in 2-12 days

0

8

Snapper 7014369

BEARING, Hex
(Superseded to 7014369YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7018563

(NLA) GASKET

Note: Was 18563

$

$

Not available

10

Snapper 7090303

NUT, 1/4-28 Hex Top-Lock
(Superseded to 703972)

$3.49

$

In Stock, only 4 left!

0

11

Snapper 7036038

COVER

$

$

Currently unavailable

12

Snapper 7090819

NUT, 1/2-20 Hex Center-Lock
(Superseded to 7090819YP)

$3.49

$

In Stock, only 1 left!

0

13

Snapper 7075115

SEAL, Short
(Superseded to 7075115YP)

Note: Was 18569

$9.99

$

In Stock, Qty 20+

0

14

Snapper 7032260

(NLA) RETAINER, Boot

Note: Was 32260

$

$

Currently unavailable

15

Snapper 7090822

SCREW, #10-32 x 1/4" Self-Tapping

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7011024

PLUG, 3/4"
(Superseded to 7011024YP)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7010988

WASHER, Plastic
(Superseded to 7010988YP)

$4.49

$

In Stock, Qty 9

0

18

Snapper 7014331

SPACER

$

$

Not available

19

Snapper 7014330

BEARING, Axle .76" ID x 1.626"/1.75" OD x 1.06" Long
(Superseded to 7014330YP)

$9.99

$

Usually ships in 2-12 days

0

20

Snapper 7051365

ASSEMBLY, Tube Drive
(Superseded to 7051365YP)

$80.99

$

Usually ships in 2-12 days

0

21

Snapper 7014673

WASHER, Thrust
(Superseded to 7014673YP)

$3.99

$

In Stock, only 1 left!

0

22

Snapper 7047852

STRUCTURE, Axle
(Superseded to 7047852YP)

$70.99

$

Usually ships in 2-12 days

0

23

Snapper 7090099

SCREW, 1/4-28 x 1/2" Hex Head Cap, Grade 5

$

$

Not available

24

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 11

0

25

Snapper 7090821

(NLA) SCREW, 1/2-20 x 1 7/8" Hex Head Cap

Note: Was 90821

$

$

Currently unavailable
