R5002B (85220) - Snapper Rear-Tine Tiller, 5hp Handle & Controls Parts Diagram

Rear-Tine Tiller, 5hp

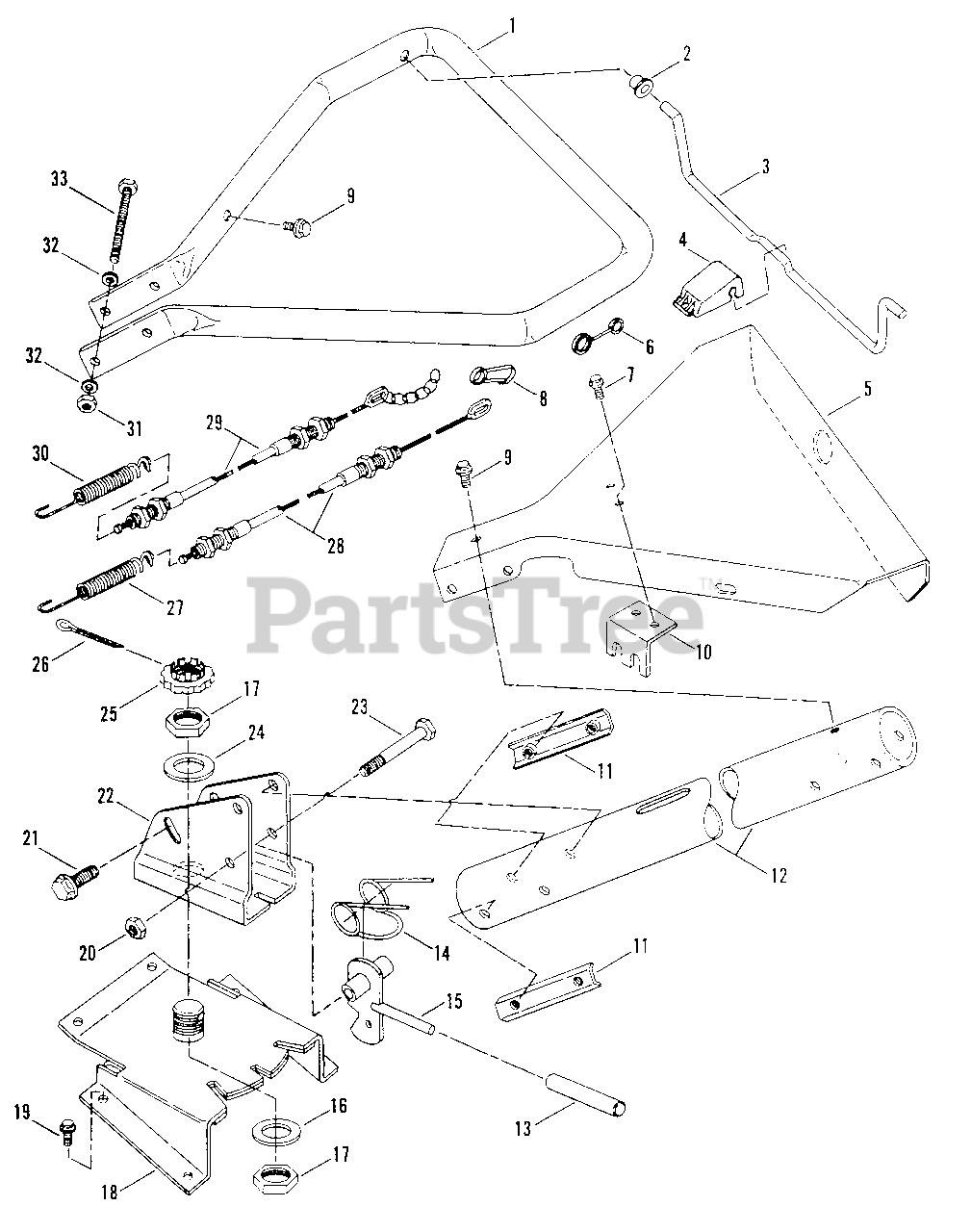

Handle & Controls Parts Diagram

  • Title

1

Snapper 7035206

BAR, Handle
(Superseded to 7035206YP)

Note: Was 35025

$107.99

$

Usually ships in 2-12 days

0

2

Snapper 7014681

BUSHING
(Superseded to 7014681YP)

$5.49

$

In Stock, Qty 10

0

3

Snapper 7018577

(NLA) BAIL

Note: Was 18577

$

$

Not available

4

Snapper 7014682

CLIP, Cable
(Superseded to 7014682YP)

$14.99

$

In Stock, only 1 left!

0

5

Snapper 7036061

PANEL, 5 HP
(Superseded to 7036061YP)

$70.99

$

Usually ships in 2-12 days

0

6

Snapper 7014719

(NLA) LINK, Wire 2.25"

Note: Was 14719

$

$

Not available

7

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 11

0

8

Snapper 7014720

CLIP-SNAP
(Superseded to 7014720YP)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7090858

SCREW, 5/16-18 x 1/2" Self-Tapping
(Superseded to 703985)

$4.49

$

In Stock, Qty 17

0

10

Snapper 7032284

(NLA) BRACKET

Note: Was 32284

$

$

Currently unavailable

11

Snapper 7051462

(NLA) PLATE, Tap

Note: Was 51462

$

$

Currently unavailable

12

Snapper 7038066

(NLA) TUBE, Handle Bar Support

Note: Was 38066

$

$

Not available

13

Snapper 7022295

GRIP, Handle
(Superseded to 7022295YP)

Note: Was 10681

$7.49

$

In Stock, only 2 left!

0

14

Snapper 7014380

SPRING
(Superseded to 7014380YP)

$9.49

$

In Stock, only 1 left!

0

15

Snapper 7040509

(NLA) WELDMENT, LATCH RTT

Note: Was 40509

$

$

Currently unavailable

16

Snapper 7010935

WASHER, Flat .77 x 1.13 x .06
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7090620

NUT, 3/4-16 Hex Lock

$

$

Not available

18

Snapper 7047854

BRACKET, Latch
(Superseded to 7047854YP)

$102.99

$

Usually ships in 2-12 days

0

19

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 14

0

20

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 10

0

21

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 8

0

22

Snapper 7036106

BRACKET, Handle
(Superseded to 7036106YP)

$62.99

$

Usually ships in 2-12 days

0

23

Snapper 7090169

SCREW, 3/8-24 x 2 1/2" Hex Head Cap

$

$

Not available

24

Snapper 7090864

WASHER, 13/16 Flat

$

$

Not available

25

Snapper 7014840

RETAINER, Nut Locking
(Superseded to 7014840YP)

$2.99

$

Usually ships in 2-12 days

0

26

Snapper 7091809

COTTER-PIN, 5/32 x 1 1/4"
(Superseded to 7091809YP)

Note: Was 90654

$4.49

$

In Stock, only 2 left!

0

27

Snapper 7015251

SPRING, Traction Cable
(Superseded to 7015251YP)

$42.99

$

In Stock, only 4 left!

0

28

Snapper 7018776

CABLE, Traction Control
(Superseded to 7018776YP)

$31.99

$

In Stock, only 2 left!

0

29

Snapper 7057415

CABLE, Tine Control
(Superseded to 7057415YP)

Note: (Includes items 6 & 8)

$102.99

$

Usually ships in 2-12 days

0

30

Snapper 7015252

SPRING, Tine Cable
(Superseded to 7015252YP)

$14.99

$

In Stock, only 3 left!

0

31

Snapper 7091575

NUT, 5/16-18 Hex Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 20+

0

32

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

33

Snapper 7091830

SCREW, 5/16-18 x 3" Hex Head Cap
(Superseded to 5025011X24SM)

Note: Was 90553

$4.49

$

Usually ships in 2-12 days

0
