R61 (5900632) - Ferris 61" Side-Discharge Mower Deck 61" Mower Deck - Housing, Covers, Spindles and Blades Parts Diagram

61" Side-Discharge Mower Deck

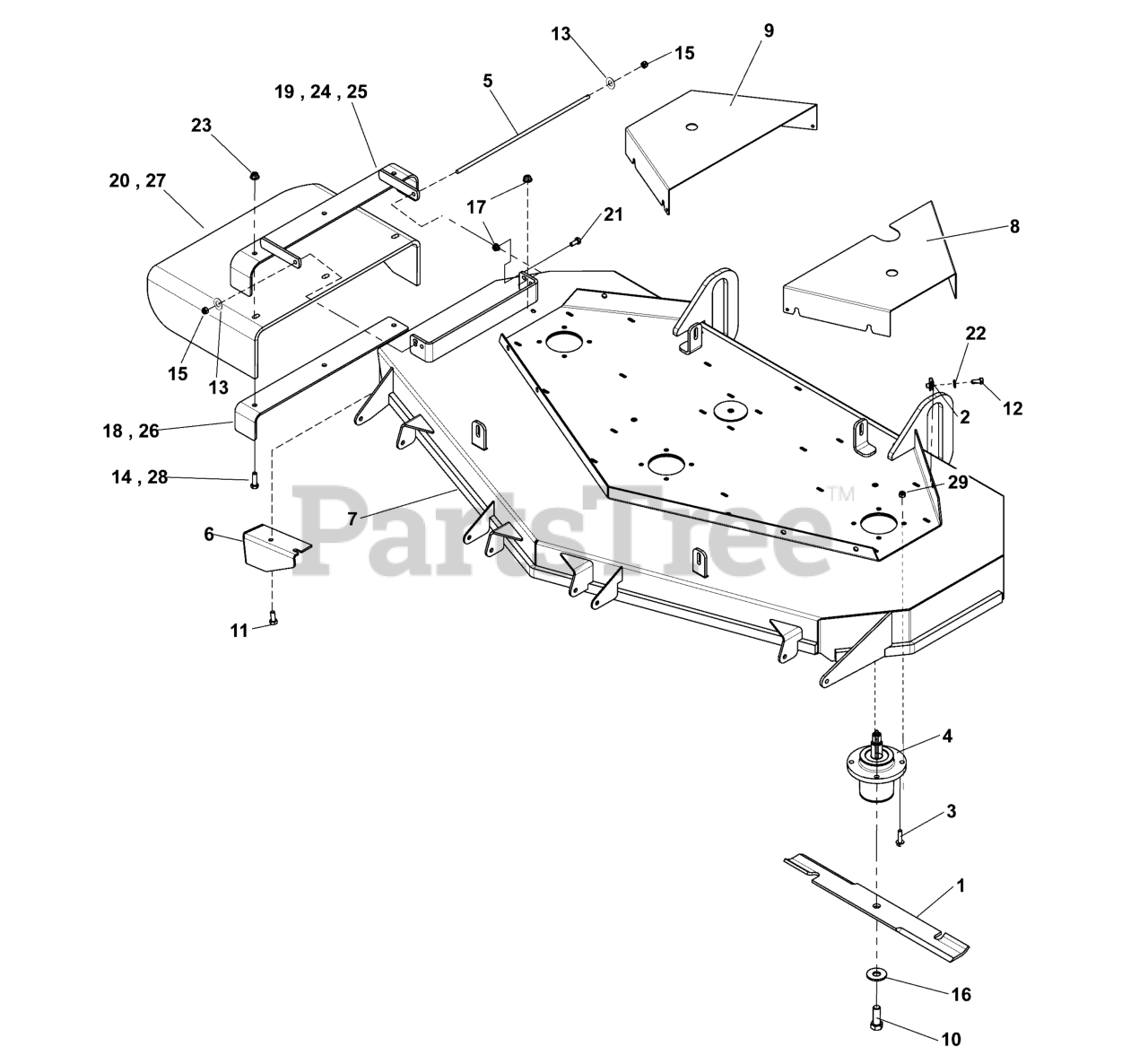

61" Mower Deck - Housing, Covers, Spindles and Blades Parts Diagram

  • Title

1

Ferris 5101755S

BLADE SET, 61 DECK (3)

Note: (S/N: 2015251379 & Above)(SV)(Set of 3 blades)

$

$

Not available

1

Ferris 5020842S

BLADE SET, 61 DECK (SET OF 3 BLADES)

Note: (S/N: 2015251378 & Below)(SV)(Set of 3 blades)

$

$

Currently unavailable

2

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 5

0

3

Ferris 5025390X10

BOLT, 3/8-16 X 1-1/4, FLANGE, GD 5, CZ
(Superseded to 5025390X10FS)

$2.99

$

Usually ships in 2-12 days

0

4

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

5

Ferris 5061300

ROD MOUNT, CHUTE 61"
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

6

Ferris 5401344AA

PLATE, DEFLECOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

7

Ferris 5300851

DECK SHELL W/DECALS, 61" - TWR

Note: (Includes safety decals.)

$2252.99

$

Usually ships in 2-12 days

0

8

Ferris 5402266B

GUARD, DECK, 61", LH, TWR - RED
(Superseded to 5402266BFS)

$50.99

$

Usually ships in 2-12 days

0

9

Ferris 5402267B

GUARD, DECK, 61", RH, TWR - RED
(Superseded to 5402267BFS)

$50.99

$

Usually ships in 2-12 days

0

10

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolt to 120 ft-lbs)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025292

WASHER, 5/16 GD.9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 3 left!

0

14

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

Note: (S/N: 2017100600 & Below)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

16

Ferris 5025477

WASHER, 5/8" GRADE 8
(Superseded to 5025477SM)

$3.99

$

In Stock, only 3 left!

0

17

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5402360A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5402360AYP)

$43.99

$

Usually ships in 2-12 days

0

19

Ferris 5061293B

WELD, FRAME, CHUTE, 61 - RED

Note: (S/N: 2016739652 & Below)

$34.99

$

In Stock, only 2 left!

0

20

Ferris 5402403

CHUTE, DISCHARGE, RUBBER, 61/72, BENT
(Superseded to 5402403SM)

Note: (S/N: 2017100600 & Below)

$186.99

$

Usually ships in 2-12 days

0

21

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

22

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, only 4 left!

0

24

Ferris 5412418A

WELD, FRAME, CHUTE, 61" - BLK

Note: (S/N: 2016739652 - 2017100600)

$44.99

$

Usually ships in 2-12 days

0

25

Ferris 5413400AA

NLA - WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413400AYP)

Note: (S/N: 2017100601 & Above)

$66.99

$

Usually ships in 2-12 days

0

26

Ferris 5413398AA

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5413398AYP)

Note: (S/N: 2017100601 & Above)

$32.99

$

Usually ships in 2-12 days

0

27

Ferris 5413500

CHUTE, RUBBER DISCHARGE (5104442)

Note: (S/N: 2017100601 & Above)

$216.99

$

Usually ships in 2-12 days

0

28

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

Note: (S/N: 2017100601 & Above)

$3.99

$

In Stock, only 1 left!

0

29

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, only 4 left!

0
