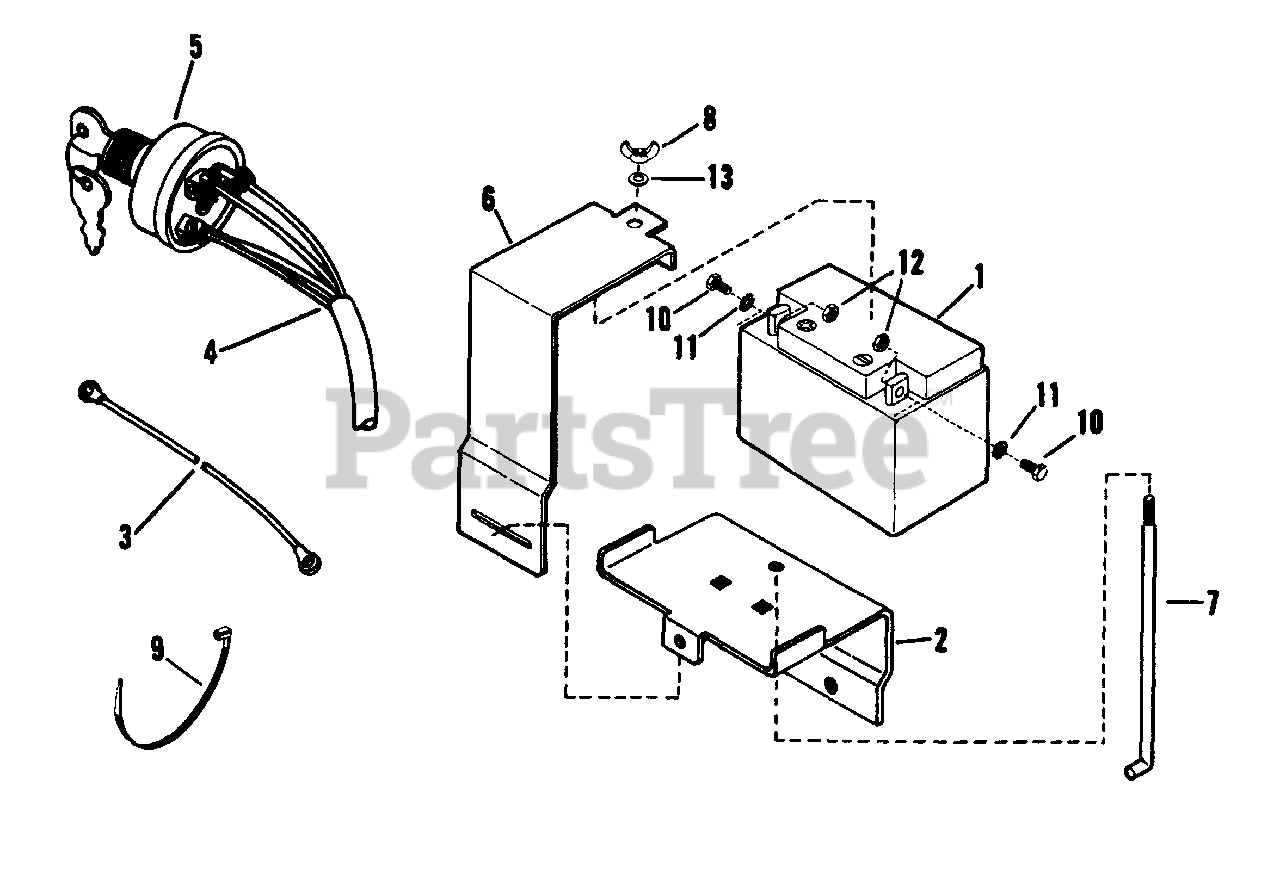

R8001 (81322) - Snapper Rear-Tine Tiller, 8hp 12 V. Battery System (RT8S) Parts Diagram

Rear-Tine Tiller, 8hp

12 V. Battery System (RT8S) Parts Diagram

  • Title

--

Snapper 7060707

KIT, Battery Bracket

Note: (includes the following indented items)

$

$

Currently unavailable

1

Snapper 7060660

BATTERY, 12 Volt Sealed Lead Acid Zm-12

$

$

Currently unavailable

2

Snapper 7036107

BRACKET, Battery Mounted
(Superseded to 7036107YP)

$38.99

$

Usually ships in 2-12 days

0

3

Snapper 7014063

WIRE, Negative
(Superseded to 7011859YP)

$8.99

$

Usually ships in 2-12 days

0

4

Snapper 7018654

HARNESS, Wiring

$

$

Currently unavailable

5

Snapper 7011155

SWITCH, Electric Start
(Superseded to 7011155YP)

Note: (Includes two 11138 Keys)

$38.99

$

Usually ships in 2-12 days

0

6

Snapper 7038165

RETAINER, Battery
(Superseded to 7038165YP)

$29.99

$

In Stock, only 1 left!

0

7

Snapper 7014899

ROD, Battery Hold-Down
(Superseded to 7014899YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 7091568

WING-NUT, 1/4-20
(Superseded to 014X79MA)

Note: Was 90311

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7012080

CABLE TIE
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 7090411

SCREW, #10-24 x 1/2" Hex Head Cap

$

$

Not available

11

Snapper 7090601

WASHER, #10 External Tooth Lock
(Superseded to 7090601YP)

$2.99

$

Usually ships in 2-12 days

0

12

Snapper 7012688

NUT, #10-24 Hex Twin-Lock
(Superseded to 7012688YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7091294

WASHER, 1/4" SAE Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 11

0
