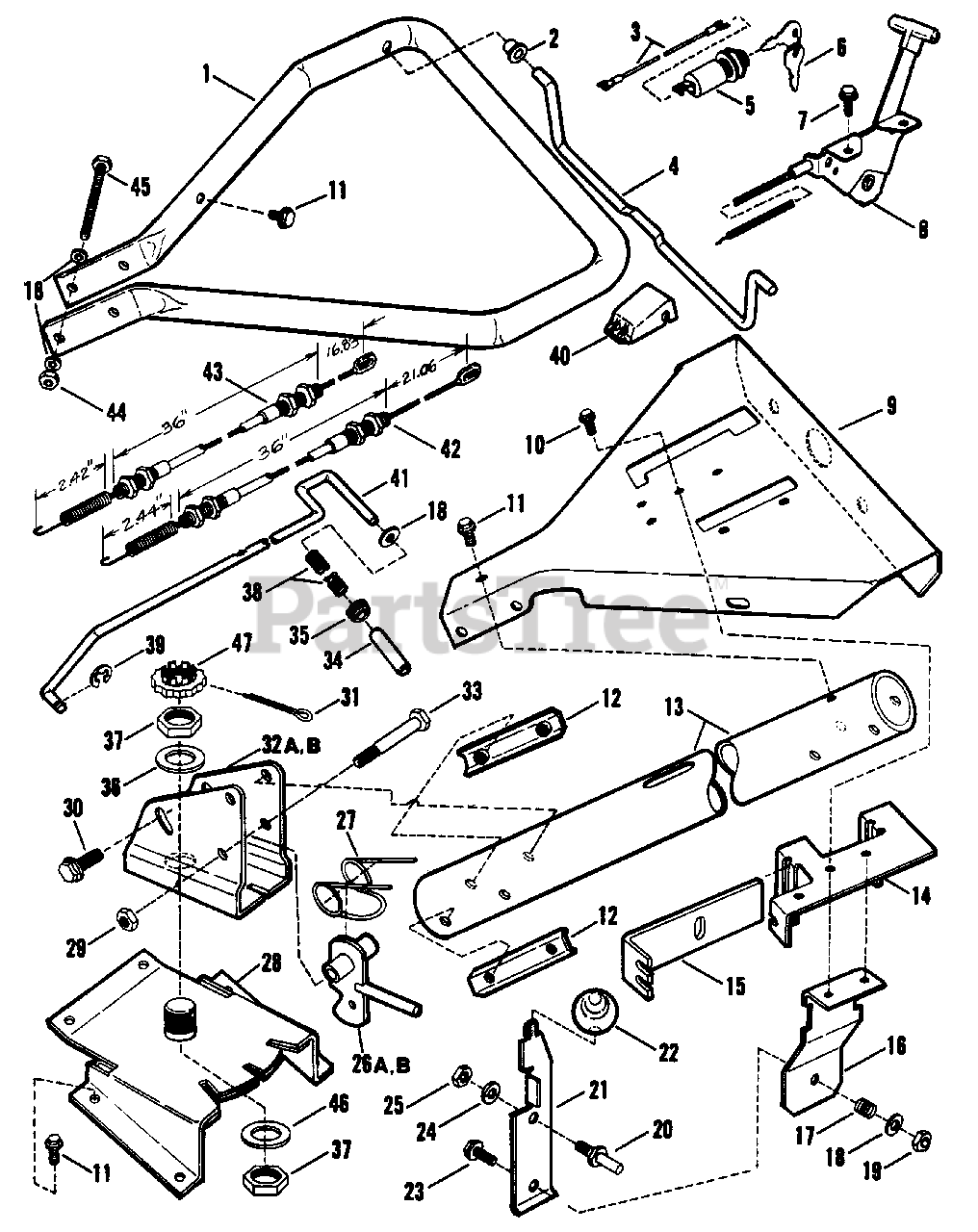

R8001 (81322) - Snapper Rear-Tine Tiller, 8hp 8HP Handle & Controls Parts Diagram

Rear-Tine Tiller, 8hp

8HP Handle & Controls Parts Diagram

  • Title

1

Snapper 7035206

BAR, Handle
(Superseded to 7035206YP)

Note: Was 35025

$101.99

$

Usually ships in 2-12 days

0

2

Snapper 7014681

BUSHING
(Superseded to 7014681YP)

$4.49

$

In Stock, Qty 12

0

3

Snapper 7014384

(NLA) WIRE, Ground

$

$

Currently unavailable

4

Snapper 7018577

BAIL

$

$

Not available

Snapper 7051404

BAG, Hardware

Note: (Includes indented items below)

$

$

Currently unavailable

5

Snapper 7011853

SWITCH, Ignition
(Superseded to 7011853YP)

Note: (Manual Start 8HP). (See "12V. Battery System (RT8S)"illustration and parts list for Electric Start)

$27.99

$

In Stock, only 4 left!

0

6

Snapper 7011138

KEY, Switch (pair)
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 8

0

7

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

Note: Was 90302

$4.99

$

Usually ships in 2-12 days

0

8

Snapper 7014368

CONTROL, Throttle
(Superseded to 7014368YP)

$28.99

$

Usually ships in 2-12 days

0

9

Snapper 7036062

PANEL, 8 HP

$

$

Not available

10

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, Qty 10

0

12

Snapper 7051462

PLATE, Tap Nut

$

$

Currently unavailable

13

Snapper 7038066

TUBE, Handle Bar Support

$

$

Not available

14

Snapper 7032292

BRACKET, Cable
(Superseded to 7032292YP)

$26.99

$

Usually ships in 2-12 days

0

15

Snapper 7032291

SLIDE
(Superseded to 7032291YP)

$20.99

$

Usually ships in 2-12 days

0

16

Snapper 7032290

(NLA) BRACKET

$

$

Currently unavailable

17

Snapper 7010023

SPRING
(Superseded to 7010023YP)

$10.99

$

In Stock, only 1 left!

0

18

Snapper 7090188

WASHER, 5/16" SAE Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7090222

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 8

0

20

Snapper 7014415

STUD, Shift

$

$

Not available

21

Snapper 7040503

HANDLE, Clutch
(Superseded to 7040503YP)

$19.99

$

Usually ships in 2-12 days

0

22

Snapper 7012659

KNOB
(Superseded to 7012659SM)

$2.99

$

Usually ships in 2-12 days

0

23

Snapper 7090240

SCREW, 5/16-24 x 1-1/4" Hex Head Cap, Grade 2
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

24

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

25

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

26A

Snapper 7040509

LATCH

Note: For models RTS, RT8S

$

$

Currently unavailable

26B

Snapper 7040498

LATCH

Note: For model R8000

$

$

Not available

27

Snapper 7014380

SPRING
(Superseded to 7014380YP)

$8.99

$

In Stock, only 1 left!

0

28

Snapper 7047854

BRACKET, Latch
(Superseded to 7047854YP)

$100.99

$

Usually ships in 2-12 days

0

29

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 12

0

30

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7090654

PIN, 5/32 x 1-1/4" Cotter

Note: (Was 90042, 1/8")

$

$

Currently unavailable

32A

Snapper 7036106

BRACKET, Handle
(Superseded to 7036106YP)

Note: (For models RT8, RT8S)

$62.99

$

Usually ships in 2-12 days

0

32B

Snapper 7036059

(NLA) BRACKET, Handle

Note: (For models R5000, R8000). Use with items 26A, 27 & 32A

$

$

Currently unavailable

33

Snapper 7090169

SCREW, 3/8-24 x 2-1/2" Hex Head Cap

$

$

Not available

34

Snapper 7023801

GRIP, Handle Release
(Superseded to 7023801YP)

Note: Was 11879

$4.49

$

In Stock, Qty 6

0

35

Snapper 7012117

BUSHING
(Superseded to 7012117SM)

$4.49

$

In Stock, Qty 20+

0

36

Snapper 7090864

WASHER, 13/16" Flat

$

$

Not available

37

Snapper 7090820

NUT, 3/4-16 Hex Jam Lock
(Superseded to 7090820YP)

$5.99

$

Usually ships in 2-12 days

0

38

Snapper 7014455

SPRING
(Superseded to 7014455YP)

$3.99

$

Usually ships in 2-12 days

0

39

Snapper 7014390

E-RING

Note: (For 5/16" Diameter Rod)

$

$

Not available

40

Snapper 7014682

CLIP, Cable
(Superseded to 7014682YP)

$10.99

$

In Stock, only 3 left!

0

41

Snapper 7018582

ROD, Handle Release

$

$

Not available

42

Snapper 7018776

CABLE, Traction Control
(Superseded to 7018776YP)

Note: Was 18578 (Now use 18776 + 15251)

$29.99

$

Usually ships in 2-12 days

0

43

Snapper 7018777

CABLE, Tine Control
(Superseded to 7018777YP)

Note: Was 18588 (Now 18777 + 15252)

$23.99

$

Usually ships in 2-12 days

0

44

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 10

0

45

Snapper 7091830

SCREW, 5/16-18 x 3" Hex Head Cap, Grade 5
(Superseded to 703870)

Note: Was 90553 (Was 90831)

$4.49

$

Usually ships in 2-12 days

0

46

Snapper 7010935

WASHER, 3/4" I.D. Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

47

Snapper 7014840

RETAINER, Nut Locking
(Superseded to 7014840YP)

$2.99

$

Usually ships in 2-12 days

0

49

Snapper 7014586

BOLT, 3/8-24 x 2-1/4" Hex Head Shear, Grade 5
(Superseded to 7014586YP)

Note: (Not shown)

$10.99

$

In Stock, only 2 left!

0
