R8002B (85228) - Snapper Rear-Tine Tiller, 8hp Frame Components (Left Side) (RT5X & RT8) Parts Diagram

Rear-Tine Tiller, 8hp

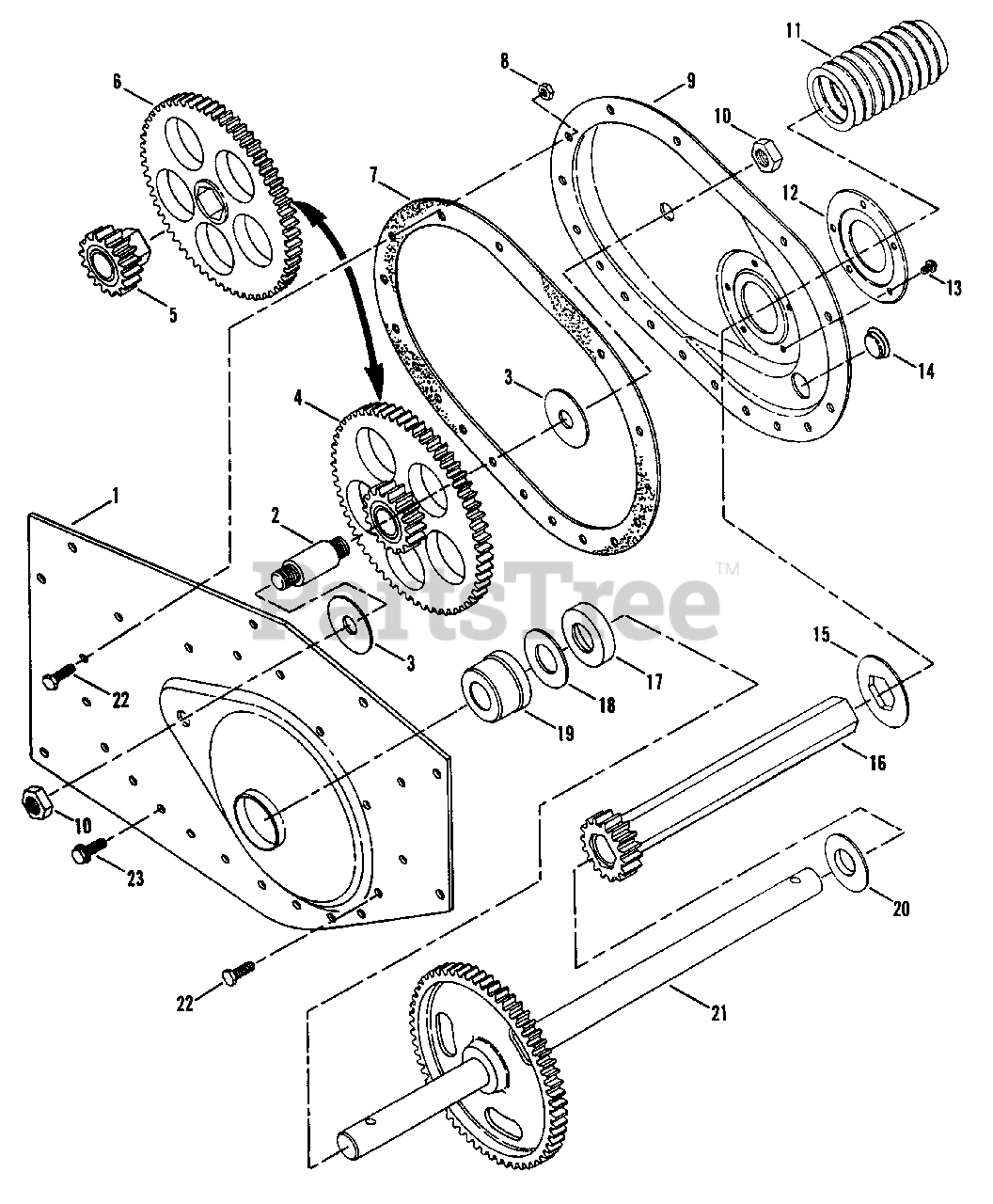

Frame Components (Left Side) (RT5X & RT8) Parts Diagram

  • Title

--

Snapper 7059670

(NLA) ASSEMBLY, Drive (RT5X & 8 HP Units)

Note: Was 59670

$

$

Currently unavailable

1

Snapper 7035021

FRAME, Left Side

$

$

Not available

2

Snapper 7022000

SHAFT, Hex Gear
(Superseded to 7022000YP)

$19.99

$

Usually ships in 2-12 days

0

3

Snapper 7090949

WASHER, Thrust

$

$

Not available

4

Snapper 7057400

ASSEMBLY, Gear Cluster
(Superseded to 7057400YP)

Note: (Includes items 5 & 6)

$268.99

$

Usually ships in 2-12 days

0

5

Snapper 7057400

ASSEMBLY, Hex Gear (15 Tooth)
(Superseded to 7057400YP)

Note: Was 51649

$268.99

$

Usually ships in 2-12 days

0

6

Snapper 7018761

GEAR (64 Tooth)
(Superseded to 7018761YP)

$59.99

$

Usually ships in 2-12 days

0

7

Snapper 7018563

GASKET

$

$

Not available

8

Snapper 7090303

NUT, 1/4-28 Hex Top-Lock
(Superseded to 703972)

$3.49

$

In Stock, only 3 left!

0

9

Snapper 7036038

COVER

$

$

Currently unavailable

10

Snapper 7090559

NUT, 1/2-20 Hex Center-Lock
(Superseded to 703903)

$3.49

$

In Stock, only 4 left!

0

11

Snapper 7018569

SEAL, Short
(Superseded to 7075115YP)

$10.99

$

In Stock, Qty 20+

0

12

Snapper 7032260

RETAINER, Boot

$

$

Currently unavailable

13

Snapper 7090822

SCREW, #10-32 x 1/4" Self-Tapping

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7011024

PLUG, 3/4"
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

15

Snapper 7010988

WASHER, Plastic
(Superseded to 7010988YP)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7051578

ASSEMBLY, Tube Drive

$

$

Not available

17

Snapper 7014331

SPACER

$

$

Not available

18

Snapper 7011071

WASHER, Thrust
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7014330

BEARING, Axle .76" ID x 1.626"/1.75" OD x 1.06" Long
(Superseded to 7014330YP)

$9.99

$

Usually ships in 2-12 days

0

20

Snapper 7014673

WASHER, Thrust
(Superseded to 7014673YP)

$3.99

$

In Stock, only 1 left!

0

21

Snapper 7047891

WELDMENT, Axle & Gear

$

$

Currently unavailable

22

Snapper 7090099

SCREW, 1/4-28 x 1/2" Hex Head Cap, Grade 5

$

$

Not available

23

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 20+

0
