R8002BE (85230) - Snapper Rear-Tine Tiller, 8hp Tine Assembly Parts Diagram

Rear-Tine Tiller, 8hp

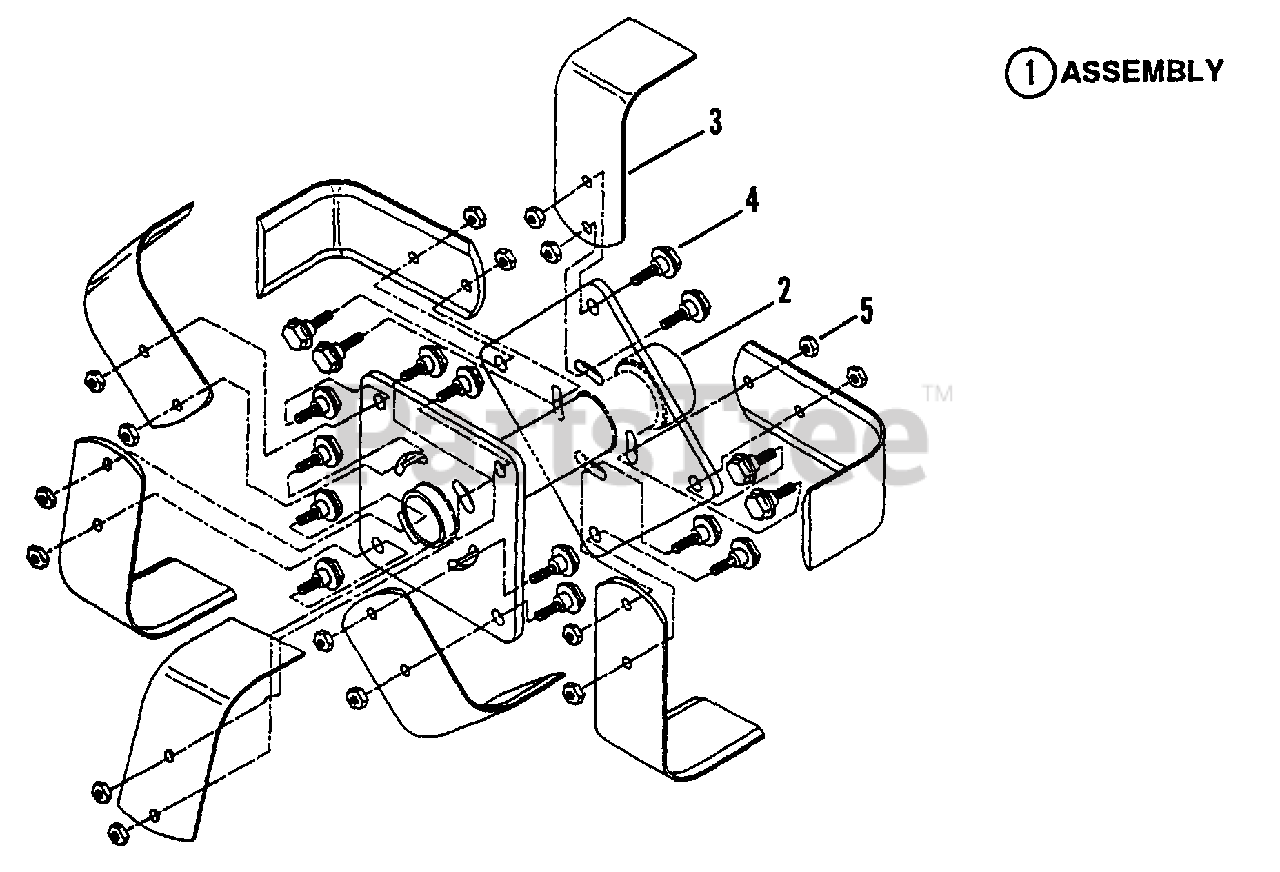

Tine Assembly Parts Diagram

  • Title

--

Snapper 7060687

KIT, Tine Assembly (8HP)(2 assemblies per kit)

Note: (Includes items 1 thru 5)

$

$

Not available

--

Snapper 7060749

(NLA) KIT, Tine Assembly (5HP)(order individual parts)

Note: Was 60749 (Includes items 1 thru 5)

$

$

Currently unavailable

1

Snapper 7051513

(NLA) ASSEMBLY, RT8 (8HP)(Includes items 1 thru 5, order individual parts)

Note: Was 51513

$

$

Not available

1

Snapper 7051579

(NLA) ASSEMBLY, Tine (5HP)(Includes items 1 thru 5, order individual parts)

Note: Was 51579

$

$

Currently unavailable

2

Snapper 7049723

STRUCTURE, Tine Hub
(Superseded to 7049723YP)

$

$

Not available

3

Snapper 7075143

TINE, 13" (8HP)
(Superseded to 7075143BMYP)

Note: Was 32424

$145.99

$

In Stock, only 1 left!

0

3

Snapper 7075142

TINE, 11.5" (5HP)
(Superseded to 7075142YP)

Note: Was 38215

$129.99

$

In Stock, Qty 17

0

4

Snapper 7014981

BOLT, 3/8-24 Hex Flange Head (Shoulder)
(Superseded to 7014981SM)

$15.99

$

Usually ships in 2-12 days

0

5

Snapper 7090524

NUT, 3/8-24 Hex Lock Gr 8
(Superseded to 7090524YP)

$2.99

$

Usually ships in 2-12 days

0
