RA 10 (RA 10 S) - Husqvarna Construction Rail Kit (2007-01) RAIL FIXTURE Parts Diagram

Construction Rail Kit

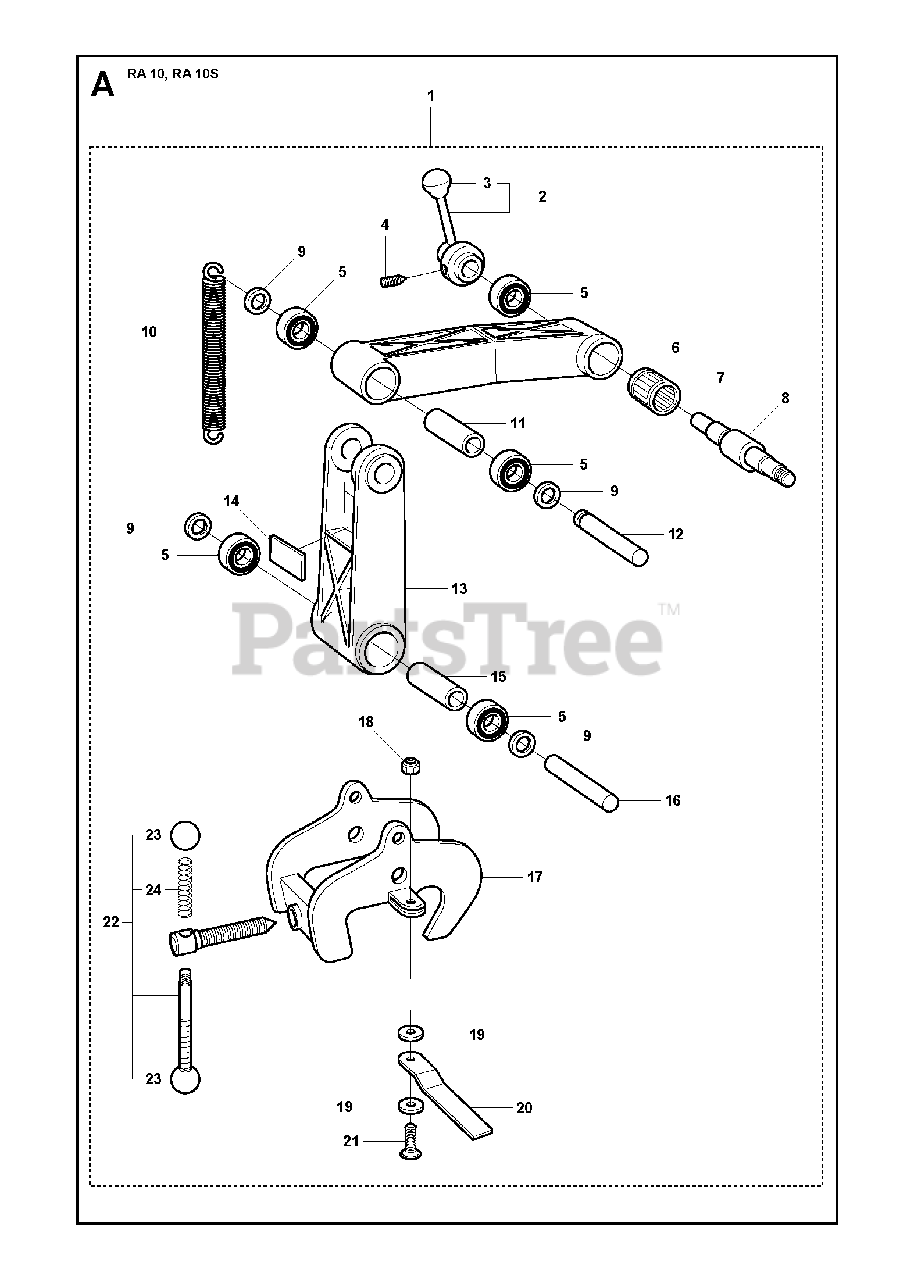

RAIL FIXTURE Parts Diagram

  • Title

1

Husqvarna Construction 506 22 66-05

RAIL FIXTURERA10. Incl. 2, 4 - 22

$

$

Currently unavailable

1

Husqvarna Construction 506 22 66-06

RAIL FIXTURERA10 S. Incl. 2, 4 - 22

$

$

Currently unavailable

2

Husqvarna Construction 506 22 76-03

LOCKING HANDLEIncl. 3

$

$

Currently unavailable

3

Husqvarna Construction 506 23 44-01

BALL

$

$

Currently unavailable

4

Husqvarna Construction 728 74 49-06

SCREW IHSETM

$

$

Currently unavailable

5

Husqvarna 503 25 21-01

BALL BEARING

$38.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 506 22 73-02

LEVER

$

$

Currently unavailable

7

Husqvarna Construction 506 22 78-01

NEEDLE BEARING

$79.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 506 22 74-01

SHAFT

$

$

Currently unavailable

9

Husqvarna 503 23 01-04

WASHER

$6.49

$

In Stock, only 1 left!

0

10

Husqvarna Construction 506 22 77-02

DRAW SPRING

$46.99

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 506 22 70-01

SPACING TUBE

$9.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 506 22 72-01

SHAFT

$83.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 506 22 71-02

LEVER

$

$

Currently unavailable

14

Husqvarna Construction 544 88 71-01

LABEL

$

$

Currently unavailable

15

Husqvarna Construction 506 22 70-02

SPACING TUBE

$12.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 506 22 68-01

SHAFT

$79.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 506 22 67-03

RAIL ATTACHMENTRA10

$

$

Currently unavailable

17

Husqvarna Construction 506 22 67-04

RAIL ATTACHMENTRA10 S

$

$

Currently unavailable

18

Husqvarna 732 21 16-01

NUT
(Superseded to 732251601)

$3.49

$

In Stock, only 4 left!

0

19

Husqvarna Construction 505 27 06-09

GASKET

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 506 23 63-01

BAR

$15.99

$

Usually ships in 3-10 days

0

21

Husqvarna 723 63 70-01

SCREW SLCSFM

$3.49

$

Usually ships in 3-10 days

0

22

Husqvarna Construction 506 22 69-03

LOCKING HANDLERA10. Incl. 23, 24

$

$

Currently unavailable

22

Husqvarna Construction 506 22 69-04

LOCKING HANDLERA10 S. Incl. 23, 24

$

$

Currently unavailable

23

Husqvarna Construction 506 38 54-01

KNOB

$12.99

$

Usually ships in 3-10 days

0

24

Husqvarna Construction 544 39 97-01

SPRING

$3.49

$

Usually ships in 3-10 days

0
