RAE708GEM48300 - Exmark 48" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 400000000 - 402082299) (2017) RH Motion Control Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Exmark 708

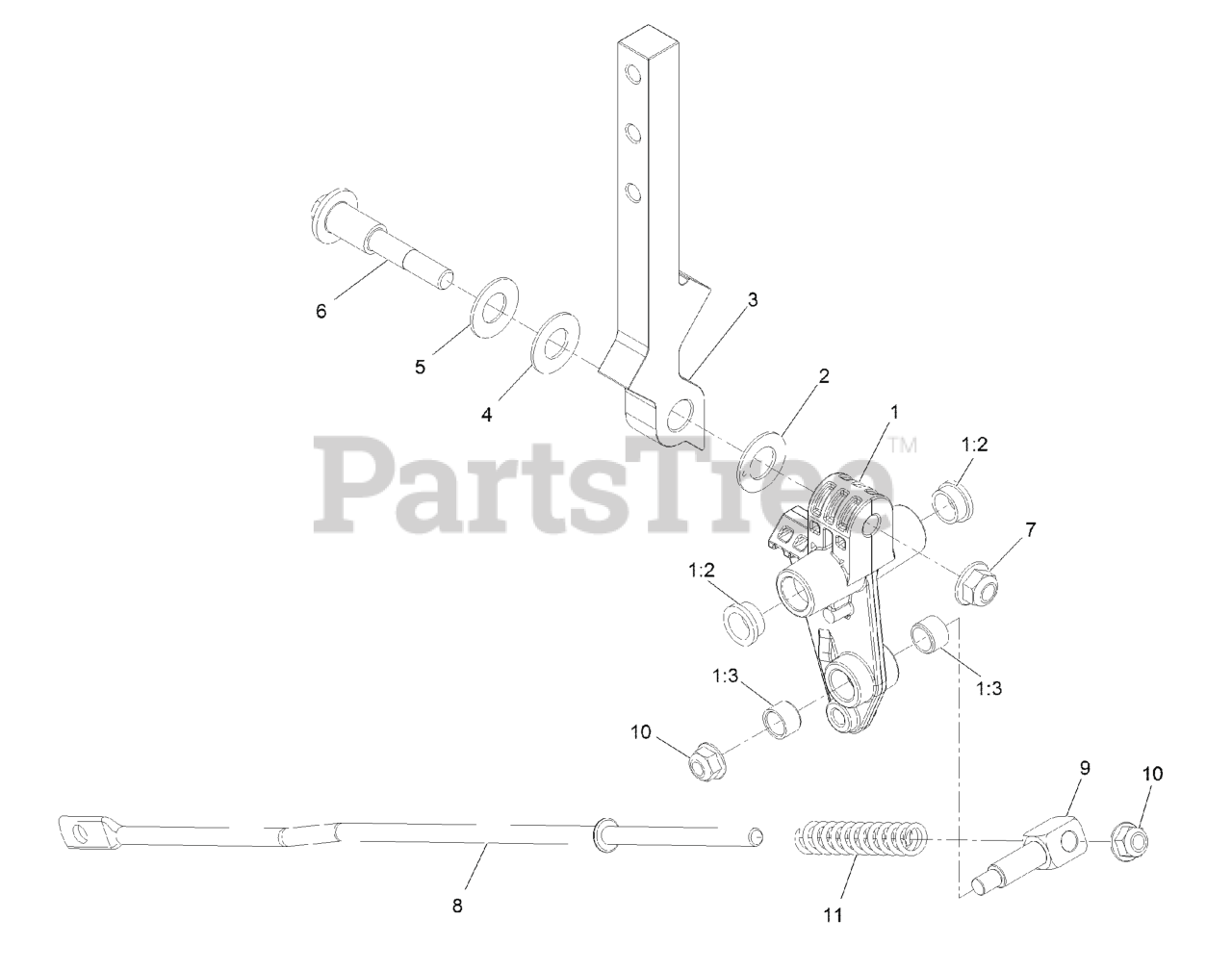

RH Motion Control Assembly Parts Diagram

  • Title

1

Exmark 126-3773

CONTROL ARM ASM

$38.99

$

In Stock, only 4 left!

0

1:2

Exmark 126-8909

BUSHING

$2.99

$

In Stock, Qty 5

0

1:3

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 20+

0

2

Exmark 126-7296

WASHER-FRICTION

$15.99

$

In Stock, only 1 left!

0

3

Exmark 126-8182

ARM-CONTROL

$77.99

$

Usually ships in 3-6 days

0

4

Exmark 117-1240

WASHER

$2.99

$

In Stock, Qty 20+

0

5

Exmark 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 20+

0

6

Exmark 117-1198

BOLT-PIVOT

$2.99

$

In Stock, Qty 20+

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 126-5435

LINK-CONTROL

$12.99

$

Usually ships in 3-6 days

0

9

Exmark 126-5434

SWIVEL

$6.49

$

Usually ships in 3-6 days

0

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Exmark 126-8195

SPRING-RETURN, NEUTRAL

$2.99

$

In Stock, Qty 5

0
