RAE708GEM48300 - Exmark 48" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Exmark 708

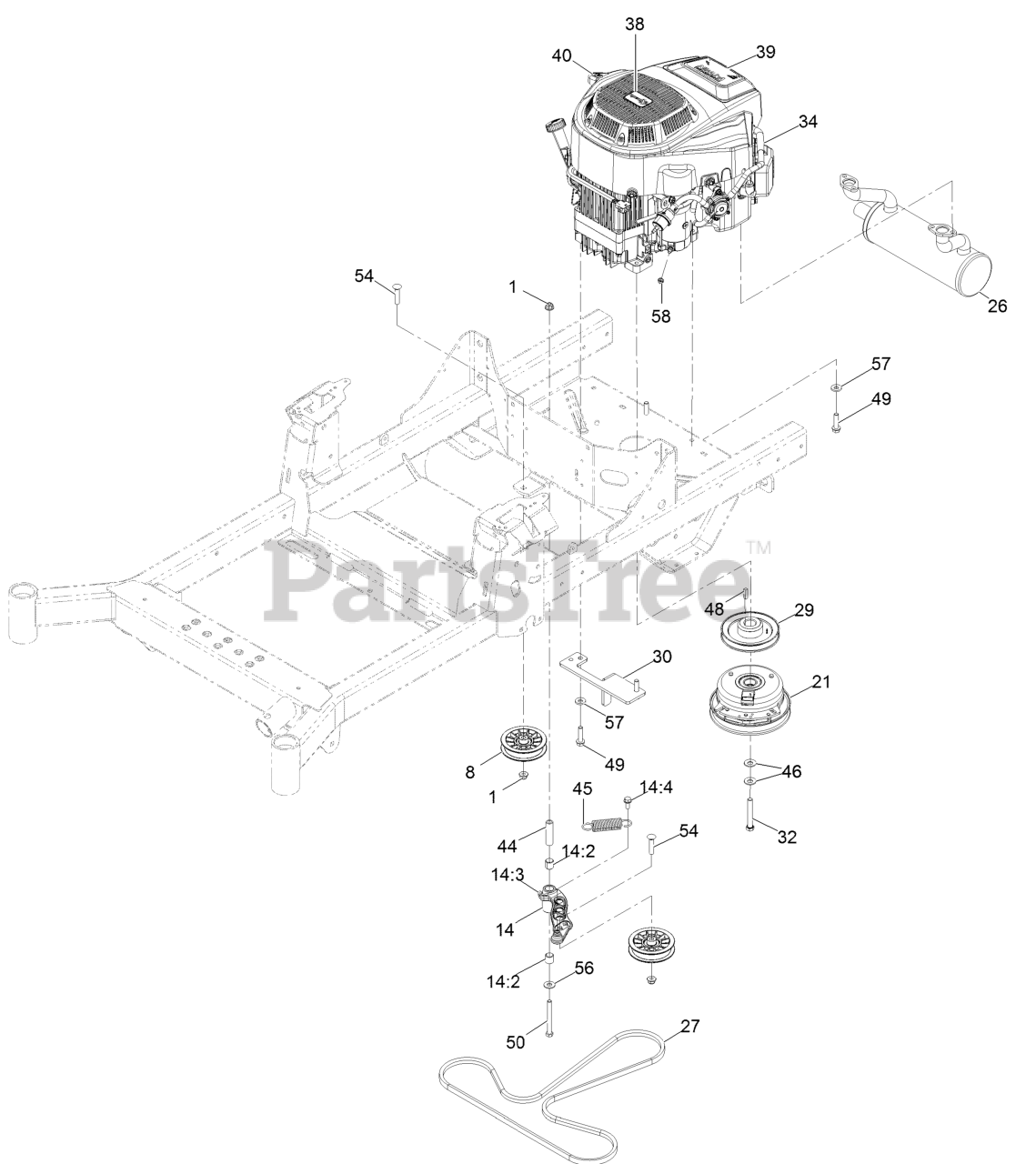

Engine Assembly Parts Diagram

  • Title

1

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-2456

Pulley-Flat

$25.99

$

In Stock, Qty 20+

0

14

Exmark 126-0973

Idler Arm ASM

$96.99

$

In Stock, only 2 left!

0

14:2

Exmark 1-513034

Sleeve-Bearing

$7.99

$

In Stock, Qty 20+

0

14:3

Exmark 302-40

Zerk-90deg 1/4-28

$3.49

$

In Stock, Qty 20+

0

14:4

Exmark 32144-11

Screw-HWH 5/16-18 X 3/4 Tf

$8.49

$

In Stock, only 3 left!

0

21

Exmark 126-4323

Clutch 1.00

$434.99

$

Usually ships in 3-6 days

0

26

Exmark 126-5864

Muffler

$162.99

$

Usually ships in 3-6 days

0

27

Exmark 126-5993

Belt-V
(Superseded to 126-5993-SL)

$53.99

$

In Stock, Qty 20+

0

29

Exmark 135-0134

Sheave-Engine

$69.99

$

In Stock, only 1 left!

0

30

Exmark 126-6687-03

Anchor-Clutch

$27.99

$

Usually ships in 3-6 days

0

32

Exmark 126-7198

Screw-HH 7/16-20 X 3 W/Loctite

$20.99

$

In Stock, only 2 left!

0

34

Exmark 127-9451

Engine-2P77F
(Superseded to 136-7818)

$2992.99

$

Usually ships in 3-6 days

0

38

Exmark 131-1078

Decal

$3.49

$

In Stock, only 2 left!

0

39

Exmark 126-9111

Decal-708Cc V-Twin Engine
(Superseded to 142-2629)

$5.49

$

Usually ships in 3-6 days

0

40

Exmark 131-1097

Decal-Drain, Oil

$2.99

$

In Stock, Qty 13

0

44

Exmark 1-603384

Bushing-Pivot, Idler

$14.99

$

In Stock, Qty 20+

0

45

Exmark 1-603402

Spring-Extension

$8.49

$

In Stock, Qty 20+

0

46

Exmark 1-603610

Washer-Spring Disc 7/16

$5.49

$

In Stock, Qty 20+

0

48

Exmark 1-807259

Key-Machine 1/4 X 1/4 X 1

$2.49

$

In Stock, Qty 20+

0

49

Exmark 32144-102

Screw-HWH 3/8-16 X 1 1/2 Taptite

$3.99

$

Usually ships in 3-6 days

0

50

Exmark 323-15

Screw-HH 3/8-16 X 3 1/2

$1.99

$

In Stock, Qty 20+

0

54

Exmark 3231-29

Bolt-Carriage 3/8-16 X 1 3/4

$7.99

$

In Stock, only 2 left!

0

56

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

0

57

Exmark 98-5975

Washer-Spring Disc 3/8

$3.99

$

In Stock, Qty 20+

0

58

Exmark 33003-00

Nut-Hex M6-1 Flg

$0.99

$

Usually ships in 3-6 days

0
