RAE708GEM48300 - Exmark 48" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 406294345 - 408644345) (Rev A) (2020) Engine Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Exmark 708

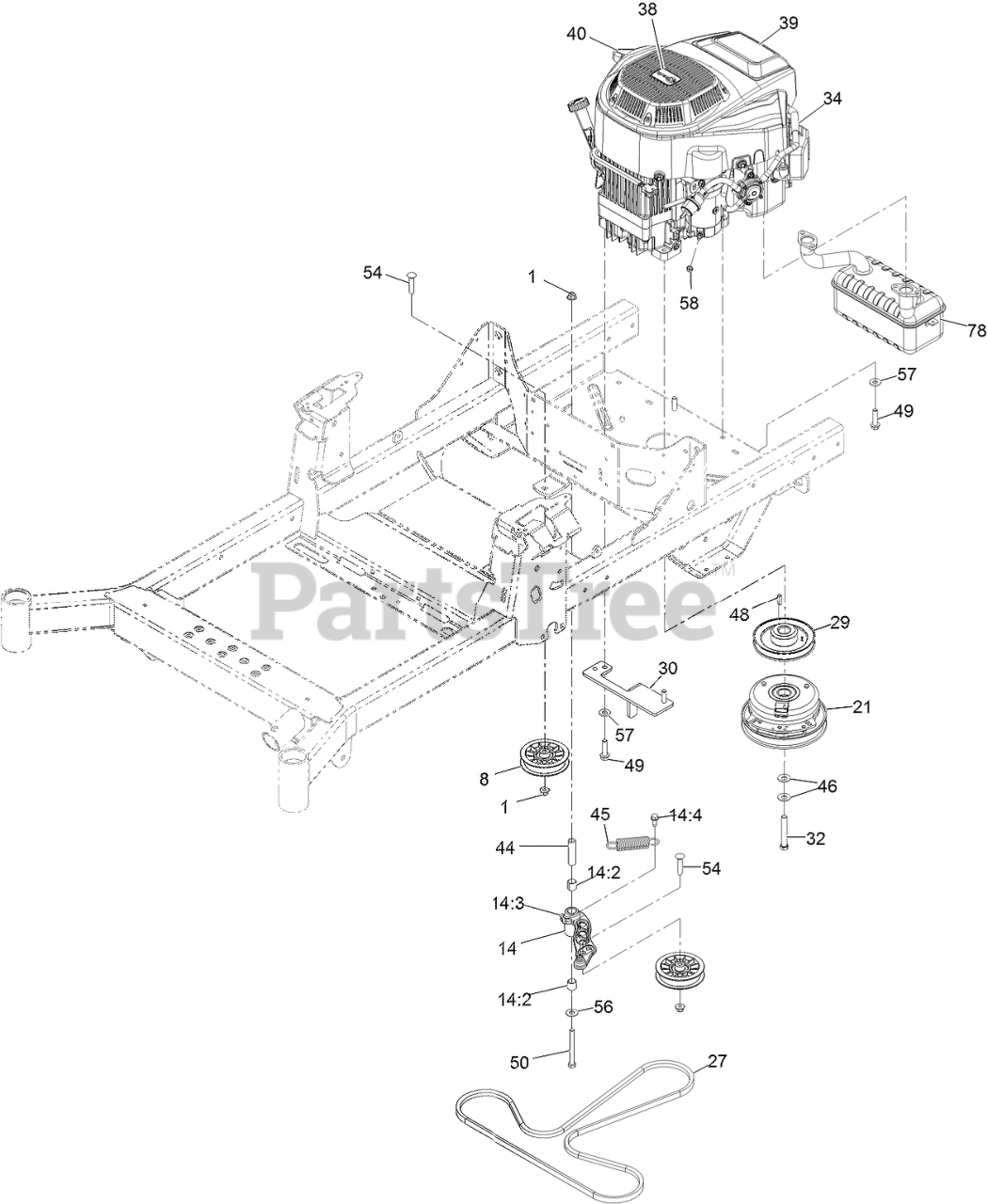

Engine Assembly Parts Diagram

  • Title

1

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-2456

PULLEY-FLAT IDLER

$25.99

$

In Stock, Qty 20+

0

14

Exmark 126-0973

IDLER ARM ASM

$96.99

$

In Stock, only 2 left!

0

14:2

Exmark 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 20+

0

14:3

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 13

0

14:4

Exmark 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 3 left!

0

21

Exmark 126-4323

CLUTCH 1.00

$434.99

$

Usually ships in 3-6 days

0

27

Exmark 126-5993

BELT-V
(Superseded to 126-5993-SL)

$53.99

$

In Stock, Qty 20+

0

29

Exmark 135-0134

SHEAVE-ENGINE

$69.99

$

In Stock, only 1 left!

0

30

Exmark 126-6687-03

ANCHOR-CLUTCH

$27.99

$

Usually ships in 3-6 days

0

32

Exmark 126-7198

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$20.99

$

In Stock, only 2 left!

0

34

Exmark 136-7818

ENGINE-2P77F

$2992.99

$

Usually ships in 3-6 days

0

38

Exmark 131-1078

DECAL

$3.49

$

In Stock, only 2 left!

0

39

Exmark 135-6447

USE 142-2629
(Superseded to 142-2629)

$5.49

$

Usually ships in 3-6 days

0

40

Exmark 131-1097

DECAL-DRAIN, OIL

$2.99

$

In Stock, Qty 13

0

44

Exmark 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, Qty 20+

0

45

Exmark 1-603402

SPRING-EXTENSION

$8.49

$

In Stock, Qty 20+

0

46

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

48

Exmark 1-807259

KEY

$2.49

$

In Stock, Qty 19

0

49

Exmark 32144-102

SCREW-HWH

$3.99

$

Usually ships in 3-6 days

0

50

Exmark 323-15

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

54

Exmark 3231-29

SCREW-CARR

$7.99

$

In Stock, only 2 left!

0

56

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

57

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

58

Exmark 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

78

Exmark 130-6851

MUFFLER

$140.99

$

Usually ships in 3-6 days

0
