RAE708GEM48C00 - Exmark 48" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 411294212 - 413950473) (Rev B) (2022) Piston and Cylinder Head Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Exmark 708

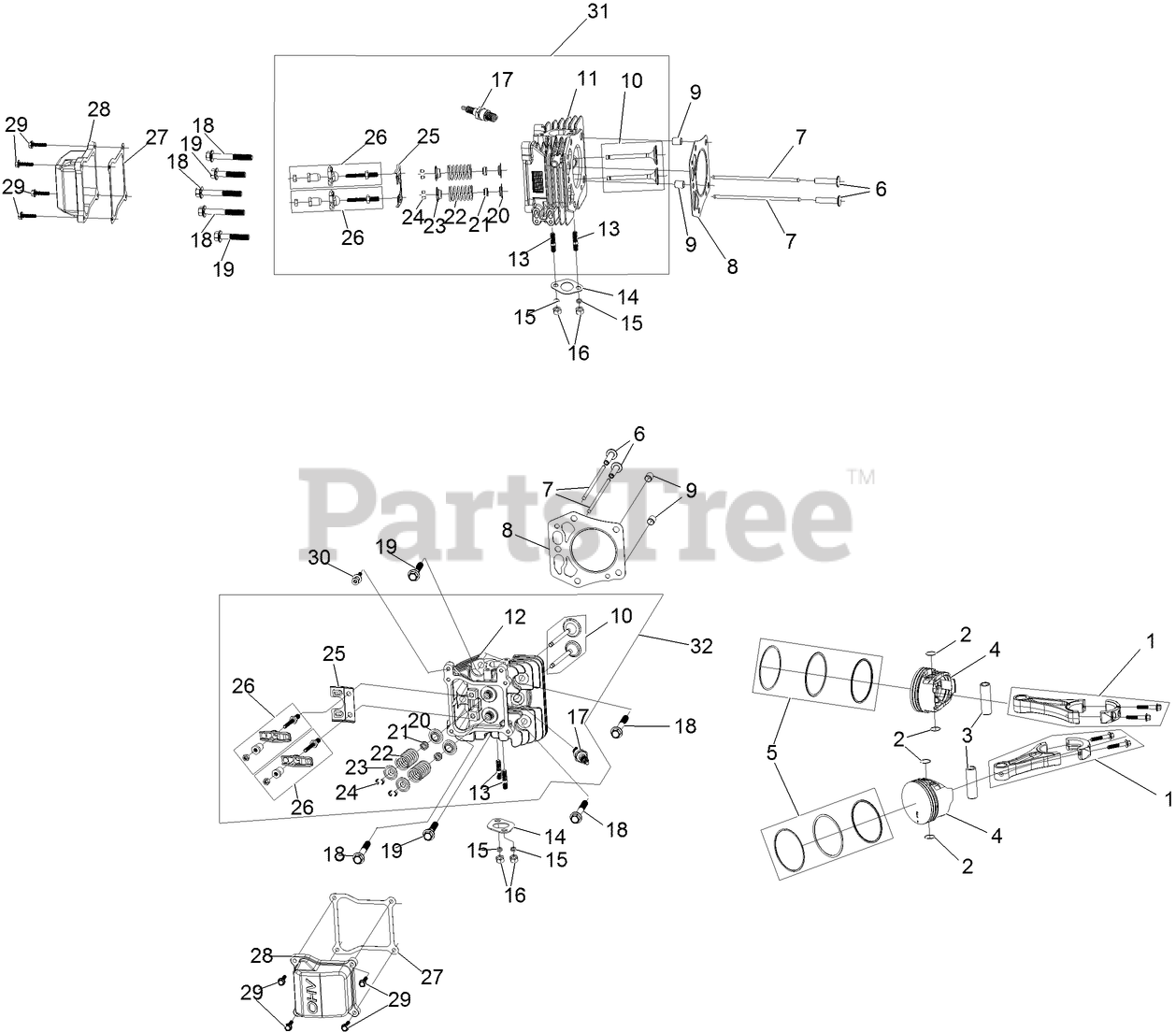

Piston and Cylinder Head Assembly Parts Diagram

  • Title

1

Exmark 127-9256

CONNECTING ROD ASM

$50.99

$

Usually ships in 3-6 days

0

2

Exmark 127-9258

CLIP-PIN, PISTON

$1.49

$

In Stock, Qty 6

0

3

Exmark 127-9257

PIN-PISTON

$10.99

$

In Stock, only 2 left!

0

4

Exmark 127-9259

PISTON

$42.99

$

In Stock, only 1 left!

0

5

Exmark 127-9260

PISTON RING SET

$21.99

$

In Stock, Qty 8

0

6

Exmark 127-9224

LIFTER-VALVE

$6.99

$

In Stock, only 3 left!

0

7

Exmark 127-9225

ROD-PUSH

$8.49

$

Usually ships in 3-6 days

0

8

Exmark 127-9226

GASKET-HEAD, CYLINDER

$13.99

$

In Stock, only 3 left!

0

9

Exmark 127-9227

PIN-DOWEL

$1.49

$

In Stock, Qty 6

0

10

Exmark 127-9228

VALVE SET

$37.99

$

In Stock, only 2 left!

0

11

Exmark 133-9802

HEAD-CYLINDER, RIGHT

$166.99

$

Usually ships in 3-6 days

0

12

Exmark 133-9804

HEAD-CYLINDER, LEFT

$166.99

$

In Stock, only 1 left!

0

13

Exmark 121-0464

STUD-EXHAUST

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 120-4317

GASKET-EXHAUST

$5.99

$

In Stock, Qty 20+

0

15

Exmark 127-9279

WASHER-LOCK, SPLIT

$2.99

$

In Stock, only 3 left!

0

16

Exmark 121-0199

NUT-HH

$1.49

$

In Stock, Qty 8

0

17

Exmark 81-3250

SPARK PLUG

$3.99

$

In Stock, Qty 20+

0

18

Exmark 127-9231

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

19

Exmark 127-9232

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

20

Exmark 120-4303

SEAT-SPRING, VALVE

$8.49

$

Usually ships in 3-6 days

0

21

Exmark 120-4304

SEAL-STEM, VALVE

$19.99

$

In Stock, Qty 6

0

22

Exmark 120-4305

SPRING-VALVE

$6.99

$

In Stock, only 2 left!

0

23

Exmark 120-4306

RETAINER-SPRING, VALVE

$12.99

$

In Stock, only 2 left!

0

24

Exmark 120-4307

KEEPER-VALVE

$8.99

$

In Stock, only 1 left!

0

25

Exmark 127-9233

PLATE-GUIDE, PUSH ROD

$6.99

$

In Stock, only 4 left!

0

26

Exmark 136-7881

ROCKER ARM ASM

$13.99

$

In Stock, only 4 left!

0

27

Exmark 127-9295

GASKET-VALVE COVER

$9.49

$

In Stock, only 4 left!

0

28

Exmark 127-9050

COVER-VALVE

$42.99

$

In Stock, only 2 left!

0

29

Exmark 120-4225

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

30

Exmark 120-4214

SCREW-SHOULDER, HH

$3.49

$

In Stock, only 2 left!

0

31

Exmark 136-7891

COMPLETE RIGHT HEAD ASM

$270.99

$

Usually ships in 3-6 days

0

32

Exmark 136-7892

COMPLETE LEFT HEAD ASM

$270.99

$

In Stock, only 2 left!

0
