RAE708GEM48C00 - Exmark 48" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 411294212 - 413950473) (Rev B) (2022) Transaxle Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Exmark 708

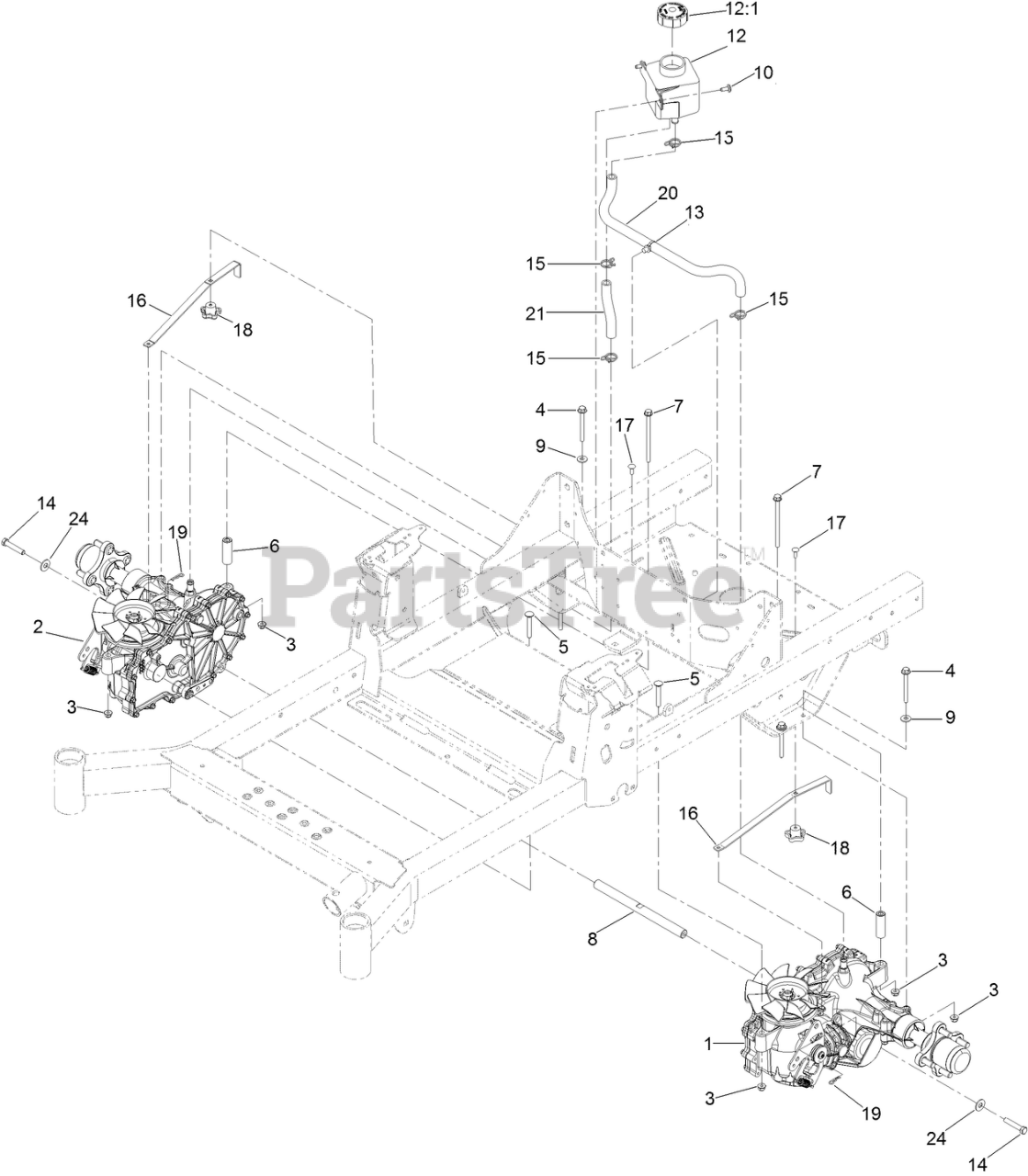

Transaxle Assembly Parts Diagram

  • Title

1

Exmark 126-4882

TRANSAXLE ASM LH

$1779.99

$

Usually ships in 3-6 days

0

2

Exmark 126-4883

TRANSAXLE ASM RH

$1779.99

$

Usually ships in 3-6 days

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 10

0

4

Exmark 126-4687

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

5

Exmark 3230-7

BOLT-CARR

$1.49

$

In Stock, Qty 9

0

6

Exmark 116-5809

SPACER-HYDRO

$6.49

$

Usually ships in 3-6 days

0

7

Exmark 126-5896

SCREW HHF

$2.99

$

Usually ships in 3-6 days

0

8

Exmark 116-6833

SHAFT-SPACER

$42.99

$

Usually ships in 3-6 days

0

9

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 11

0

10

Exmark 126-6266

SCREW-TORX

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 109-2250

TANK-HYD

$71.99

$

In Stock, only 2 left!

0

12:1

Exmark 109-3320

CAP-RESERVOIR, HYD

$30.99

$

In Stock, only 2 left!

0

13

Exmark 32180-118

CLIP-TIE

$2.49

$

Usually ships in 3-6 days

0

14

Exmark 94-7972

SCREW-HH W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, only 2 left!

0

15

Exmark 126-0327

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

16

Exmark 109-5395

ARM-BYPASS, HYDRO

$11.99

$

Usually ships in 3-6 days

0

17

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

18

Exmark 108-6402

KNOB-HANDLE

$1.99

$

In Stock, Qty 14

0

19

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

20

Exmark 126-5668

HOSE-HYDRAULIC

$23.99

$

Usually ships in 3-6 days

0

21

Exmark 126-5669

HOSE-HYDRAULIC

$10.99

$

Usually ships in 3-6 days

0

24

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0
