RAE708GEM52300 - Exmark 52" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 400000000 - 402082299) (2017) Deck Assembly Parts Diagram

52" Radius E-Series Zero-Turn Mower, Exmark 708

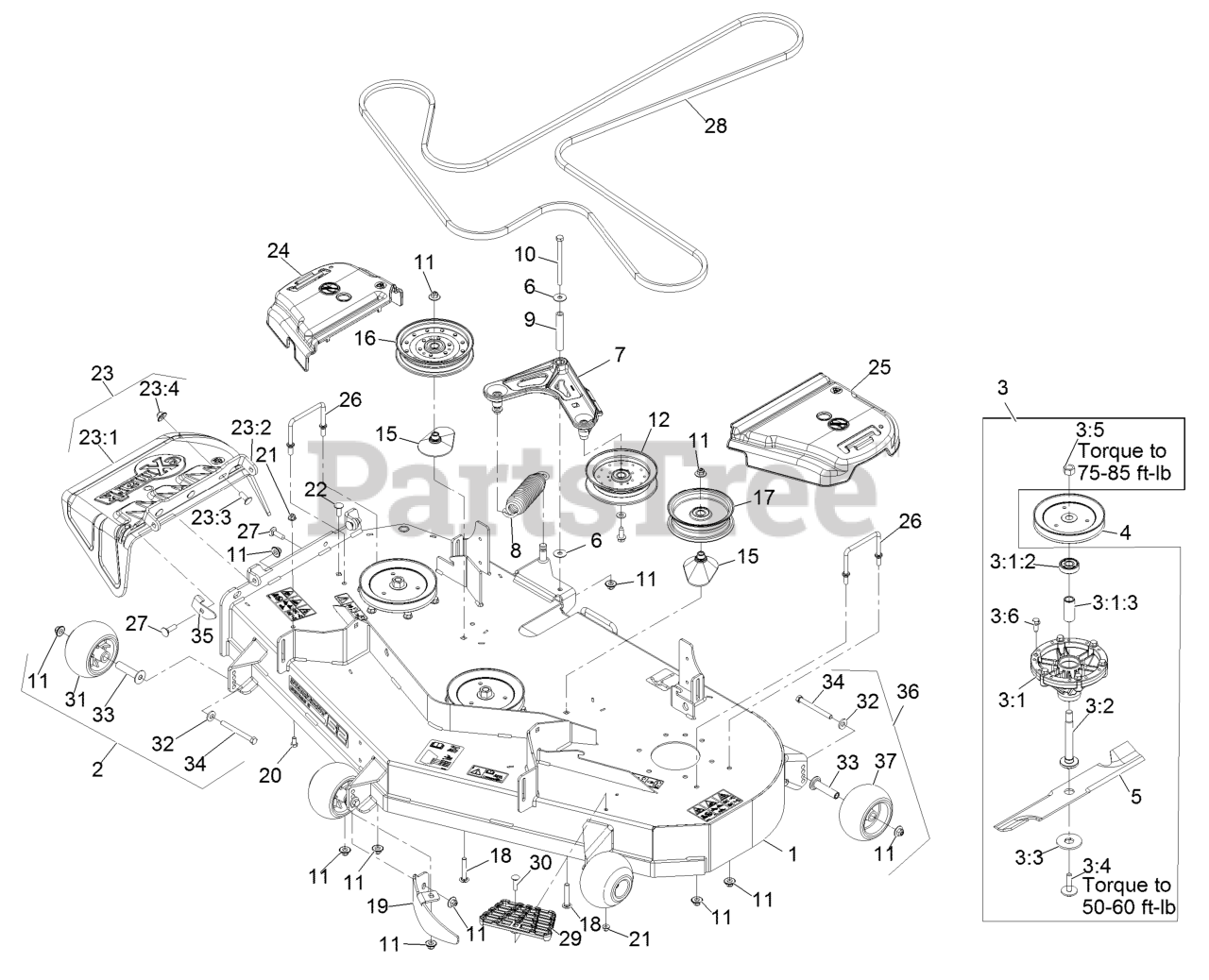

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-3578

ASM-Deck W/Decals 523

$2269.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9981

Kit, Anti-Scalp Roller

$53.99

$

In Stock, Qty 20+

0

3

Exmark 126-4630

ASM, Cutter Housing Complete

$160.99

$

In Stock, Qty 8

0

3:1

Exmark 126-4627

ASM-Cutter Housing

$123.99

$

In Stock, only 1 left!

0

3:1:2

Exmark 116-4004

Bearing

$19.99

$

In Stock, Qty 20+

0

3:1:3

Exmark 116-4876

Spacer-Bearing

$7.99

$

In Stock, only 4 left!

0

3:2

Exmark 109-7431

Spindle-Hex Pilot

$37.99

$

In Stock, Qty 16

0

3:3

Exmark 126-4530

Washer-Hex Blade Drive

$5.49

$

In Stock, Qty 20+

0

3:4

Exmark 116-0005

Bolt-Blade, Sem

$7.99

$

In Stock, Qty 20+

0

3:5

Exmark 3219-6

Nut-Hex 5/8-18

$3.99

$

In Stock, Qty 20+

0

3:6

Exmark 126-1696

Screw-Thread Forming

$1.49

$

In Stock, only 3 left!

0

4

Exmark 116-5044

Sheave,Blade Drive 6.50

$64.99

$

In Stock, only 2 left!

0

5

Exmark 103-6387

Blade, Low Lift
(Superseded to 103-6387-S)

$31.99

$

In Stock, Qty 12

0

5

Exmark 103-6382

Blade, Solid
(Superseded to 103-6382-S)

$36.99

$

In Stock, Qty 5

0

5

Exmark 103-6392

Blade, Mulching
(Superseded to 103-6392-S)

$30.99

$

In Stock, Qty 20+

0

5

Exmark 103-6402

Blade-Notched
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

5

Exmark 116-5175

Blade-Extreme 2, 18.00"
(Superseded to 116-5175-S)

$30.99

$

In Stock, Qty 20+

0

6

Exmark 52-2860

Washer

$1.49

$

In Stock, Qty 20+

0

7

Exmark 126-0976

ASM-Idler Arm W/Bearings

$106.99

$

In Stock, Qty 20+

0

8

Exmark 116-6317

Spring-Extension

$27.99

$

In Stock, Qty 20+

0

9

Exmark 116-5111

Bushing

$33.99

$

In Stock, Qty 5

0

10

Exmark 323-38

Screw-HH 3/8-16 X 4 3/4

$11.99

$

In Stock, only 4 left!

0

11

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

12

Exmark 116-4668

Idler-Pulley, Flanged
(Superseded to 126-9196)

$63.99

$

In Stock, Qty 20+

0

15

Exmark 109-2872

Spacer-Pulley

$22.99

$

In Stock, Qty 20+

0

16

Exmark 116-4670

Pulley-Idler, Flat
(Superseded to 126-9189)

$61.99

$

In Stock, Qty 7

0

17

Exmark 116-4669

Pulley-Idler Flat

$82.99

$

In Stock, Qty 20+

0

18

Exmark 3231-40

Bolt-Carriage 3/8-16 X 2 1/4

$2.99

$

In Stock, Qty 20+

0

19

Exmark 116-5835-01

Baffle-Dogleg, Lze-Pns-52

$62.99

$

Usually ships in 3-6 days

0

20

Exmark 322-2

Screw-HH 5/16-18 X 5/8

$2.49

$

In Stock, Qty 20+

0

21

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

22

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 8

0

23

Exmark 109-7188

ASM,Discharge Chute

$104.99

$

In Stock, Qty 12

0

23:1

Exmark 109-2738

Chute, Discharge

$74.99

$

In Stock, only 4 left!

0

23:2

Exmark 109-8675-01

Bracket,Discharge Chute

$51.99

$

In Stock, only 1 left!

0

23:3

Exmark 3231-22

Bolt-Carriage 3/8-16 X 1

$3.49

$

In Stock, Qty 8

0

23:4

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

24

Exmark 109-6935

Cover-Belt, RH

$37.99

$

In Stock, only 1 left!

0

25

Exmark 109-6936

Cover-Belt, LH

$37.99

$

In Stock, only 1 left!

0

26

Exmark 109-6982

Wireform-Cover

$11.99

$

In Stock, Qty 6

0

27

Exmark 3231-25

Bolt-Carriage 3/8-16 X 1 1/4
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 12

0

28

Exmark 126-7443

Belt-V
(Superseded to 126-7443-SL)

$169.99

$

In Stock, only 2 left!

0

29

Exmark 126-4781-03

Step-Deck

$26.99

$

Usually ships in 3-6 days

0

30

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

31

Exmark 103-8415

Roller-Anti-Scalp

$26.99

$

In Stock, Qty 20+

0

32

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0

33

Exmark 116-8131

Axle, Roller

$12.99

$

In Stock, Qty 20+

0

34

Exmark 116-9362

Screw-HH 3/8-16 X 3 3/4 Gr 8

$2.99

$

In Stock, Qty 20+

0

35

Exmark 135-0064

Stop-Discharge Chute

$9.99

$

Usually ships in 3-6 days

0

36

Exmark 126-7840

Kit-Antiscalp Roller

$49.99

$

Usually ships in 3-6 days

0

37

Exmark 1-603299

Roller-Scalp, Anti

$22.99

$

In Stock, Qty 20+

0
