RAE708GEM52300 - Exmark 52" Radius E-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Motion Control Assembly Parts Diagram

52" Radius E-Series Zero-Turn Mower, Exmark 708

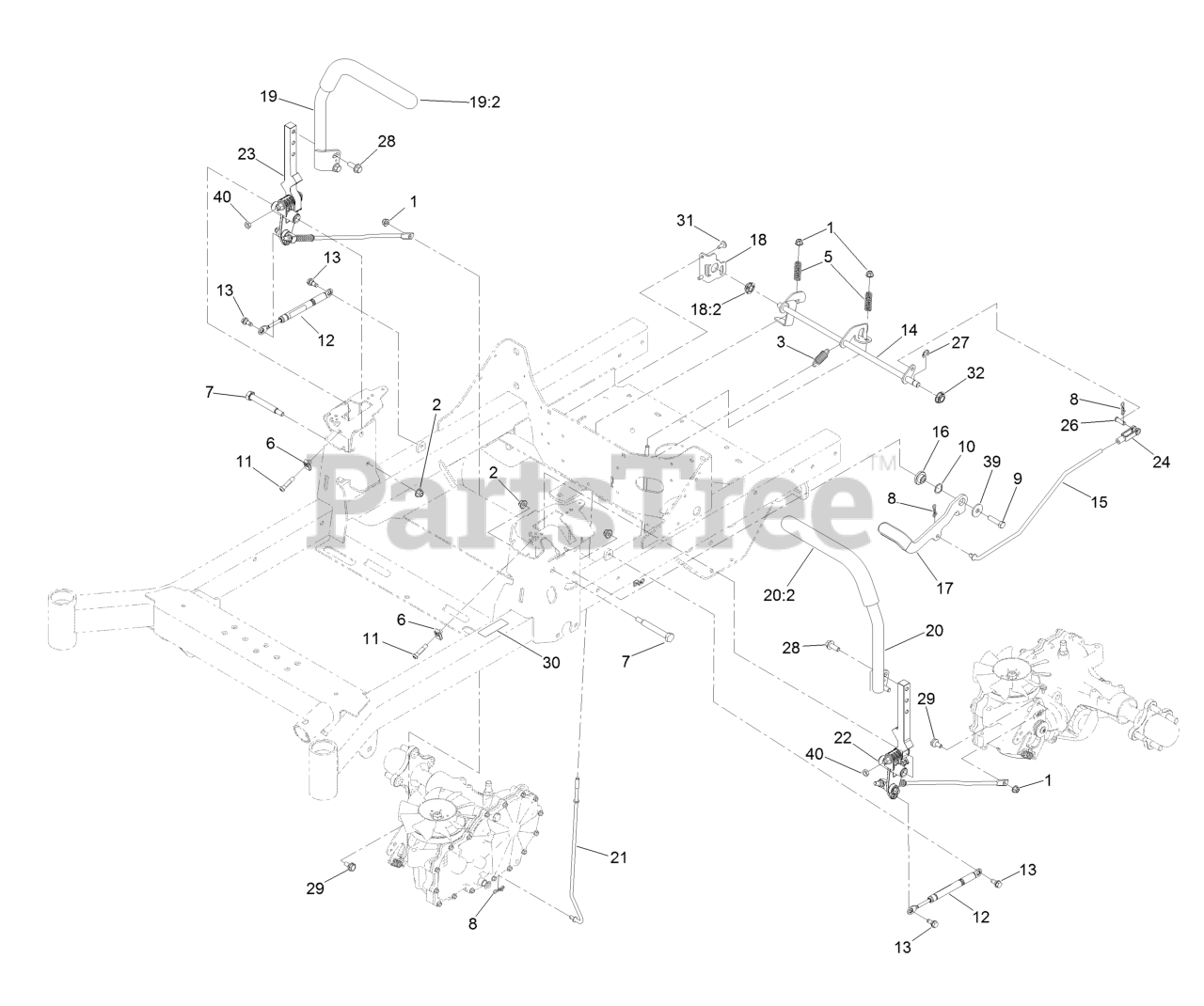

Motion Control Assembly Parts Diagram

  • Title

1

Exmark 104-8300

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Exmark 104-8301

Nut-HF, NI

$1.49

$

In Stock, Qty 20+

0

3

Exmark 107-1045

Spring-Extension

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 109-7694

Spring-Compression

$6.49

$

Usually ships in 3-6 days

0

6

Exmark 112-3306

Nut

$3.49

$

Usually ships in 3-6 days

0

7

Exmark 115-5099

Bolt-Pivot

$5.49

$

In Stock, only 3 left!

0

8

Exmark 119-1415

Pin-Cotter, Locking

$1.49

$

In Stock, Qty 18

0

9

Exmark 323-8

Screw-HH

$1.49

$

In Stock, Qty 20+

0

10

Exmark 119-4164

Washer-Wave

$3.49

$

In Stock, only 3 left!

0

11

Exmark 126-4299

Screw-HSBH

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 126-4322

Damper

$

$

Not available

13

Exmark 126-4424

Screw-Shoulder

$2.99

$

In Stock, Qty 15

0

14

Exmark 126-5813

Shaft-Brake

$39.99

$

Usually ships in 3-6 days

0

15

Exmark 126-5819

Linkage-Brake, Upper

$13.99

$

Usually ships in 3-6 days

0

16

Exmark 126-5989

Pivot-Flange

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 126-9490

Lever-Brake (With Grip)

$27.99

$

Usually ships in 3-6 days

0

18

Exmark 126-6456

Bracket-Brake

$12.99

$

Usually ships in 3-6 days

0

18:2

Exmark 126-5820

Bearing-Spherical

$7.99

$

In Stock, only 2 left!

0

19

Exmark 126-9191

RH Control Handle ASM

$67.99

$

Usually ships in 3-6 days

0

19:2

Exmark 126-7359

Grip

$17.99

$

Usually ships in 3-6 days

0

20

Exmark 126-9192

LH Control Handle ASM

$67.99

$

Usually ships in 3-6 days

0

20:2

Exmark 126-7359

Grip

$17.99

$

Usually ships in 3-6 days

0

21

Exmark 126-7217

Linkage-Brake, Lower

$13.99

$

Usually ships in 3-6 days

0

22

LH Motion Control ASM

$

$

Not available

23

RH Motion Control ASM

$

$

Not available

24

Exmark 1-303105

Yoke-Adjustable

$12.99

$

In Stock, Qty 6

0

26

Exmark 1-808280

Pin-Clevis

$2.99

$

In Stock, Qty 17

0

27

Exmark 32120-47

Ring-Retaining, External

$1.49

$

In Stock, Qty 15

0

28

Exmark 3234-42

Screw-HHF

$3.49

$

In Stock, Qty 17

0

29

Exmark 37-8771

Bolt-Shoulder

$5.49

$

Usually ships in 3-6 days

0

30

Exmark 115-9625

Decal-Brake, Parking

$5.49

$

Usually ships in 3-6 days

0

31

Exmark 126-6266

Screw-Torx

$1.49

$

Usually ships in 3-6 days

0

32

Exmark 126-5820

Bearing-Spherical

$7.99

$

In Stock, only 2 left!

0

39

Exmark 2844

Washer

$2.99

$

In Stock, Qty 20+

0

40

Exmark 3218-3

Nut-Jam

$0.99

$

In Stock, Qty 20+

0
