RAE720CKC48300 - Exmark 48" Radius E-Series Zero-Turn Mower, Kohler ZT720 (SN: 402082300 - 404314158) (2018) Engine Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Kohler ZT720

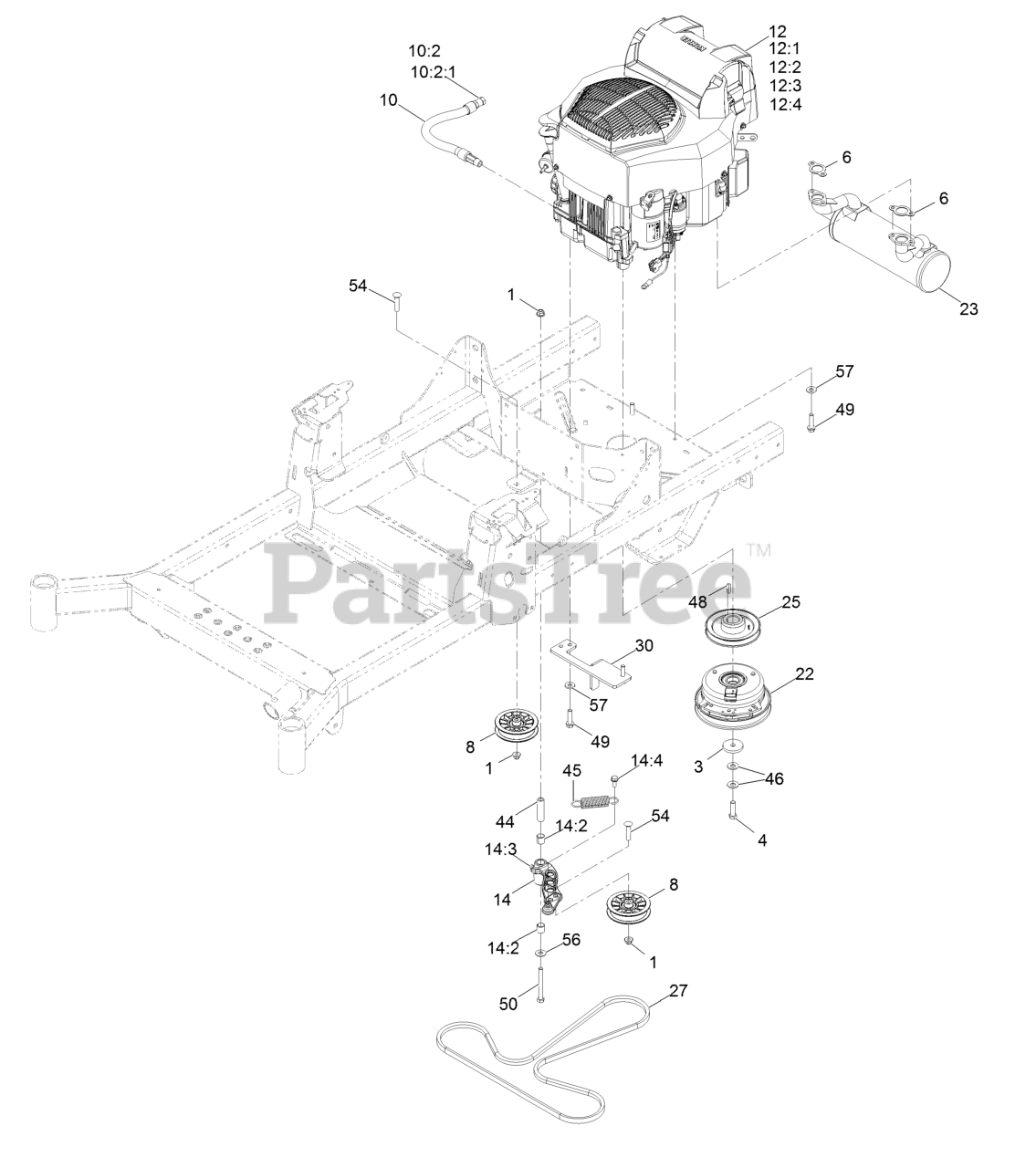

Engine Assembly Parts Diagram

  • Title

1

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

3

Exmark 109-6919

Washer-Clutch

$5.49

$

In Stock, Qty 15

0

4

Exmark 109-9761

Screw-HH 7/16-20 X 1 1/2 W/Loctite

$5.49

$

In Stock, only 1 left!

0

6

Exmark 1-653291

Gasket-Exhaust
(Superseded to 110-6697)

$

$

Not available

8

Exmark 116-2456

Pulley-Flat

$25.99

$

In Stock, Qty 20+

0

10

Exmark 116-5108

Oil Drain Hose ASM

$37.99

$

In Stock, only 2 left!

0

10:2

Exmark 353-508

Plug-W/O-Ring

$8.49

$

In Stock, only 1 left!

0

10:2:1

Exmark 237-42

O-Ring

$2.99

$

In Stock, Qty 20+

0

12

Engine-Kohler, Zt720

$

$

Not available

12:1

Kohler 16 083 01-S Engine Air Filter

$

$

Not available

12:2

Kohler 25 050 44-S Engine Oil Filter

$

$

Not available

12:3

Kohler 24 050 13-S Fuel Filter

$

$

Not available

12:4

Kohler 25 083 04-S Safety Filter

$

$

Not available

14

Exmark 126-0973

Idler Arm ASM

$84.99

$

Usually ships in 3-6 days

0

14:2

Exmark 1-513034

Sleeve-Bearing

$7.49

$

In Stock, Qty 20+

0

14:3

Exmark 302-40

Zerk-90deg 1/4-28

$3.49

$

In Stock, Qty 20+

0

14:4

Exmark 32144-11

Screw-HWH 5/16-18 X 3/4 Tf

$7.99

$

In Stock, Qty 8

0

22

Exmark 126-4324

Clutch

$419.99

$

In Stock, only 1 left!

0

23

Exmark 126-4359

Muffler-Kohler Aes

$153.99

$

Usually ships in 3-6 days

0

25

Exmark 126-5358

Sheave (W/Hub)

$55.99

$

Usually ships in 3-6 days

0

27

Exmark 126-5993

Belt-V
(Superseded to 126-5993-SL)

$50.99

$

In Stock, Qty 15

0

30

Exmark 126-6687-03

Anchor-Clutch

$25.99

$

Usually ships in 3-6 days

0

44

Exmark 1-603384

Bushing-Pivot, Idler

$14.99

$

In Stock, Qty 20+

0

45

Exmark 1-603402

Spring-Extension

$7.99

$

In Stock, Qty 20+

0

46

Exmark 1-603610

Washer-Spring Disc 7/16

$5.49

$

In Stock, Qty 20+

0

48

Exmark 1-807259

Key-Machine 1/4 X 1/4 X 1

$2.99

$

In Stock, Qty 13

0

49

Exmark 32144-102

Screw-HWH 3/8-16 X 1 1/2 Taptite

$3.49

$

In Stock, Qty 5

0

50

Exmark 323-15

Screw-HH 3/8-16 X 3 1/2

$1.99

$

In Stock, Qty 19

0

54

Exmark 3231-29

Bolt-Carriage 3/8-16 X 1 3/4

$7.49

$

In Stock, Qty 10

0

56

Exmark 3256-4

Washer-3/8 Std

$1.99

$

In Stock, Qty 20+

0

57

Exmark 98-5975

Washer-Spring Disc 3/8

$3.49

$

In Stock, Qty 20+

0
