RAE720CKC48300 - Exmark 48" Radius E-Series Zero-Turn Mower, Kohler ZT720 (SN: 402082300 - 404314158) (2018) Fuel Tank and Vent Hose System Assembly Parts Diagram

48" Radius E-Series Zero-Turn Mower, Kohler ZT720

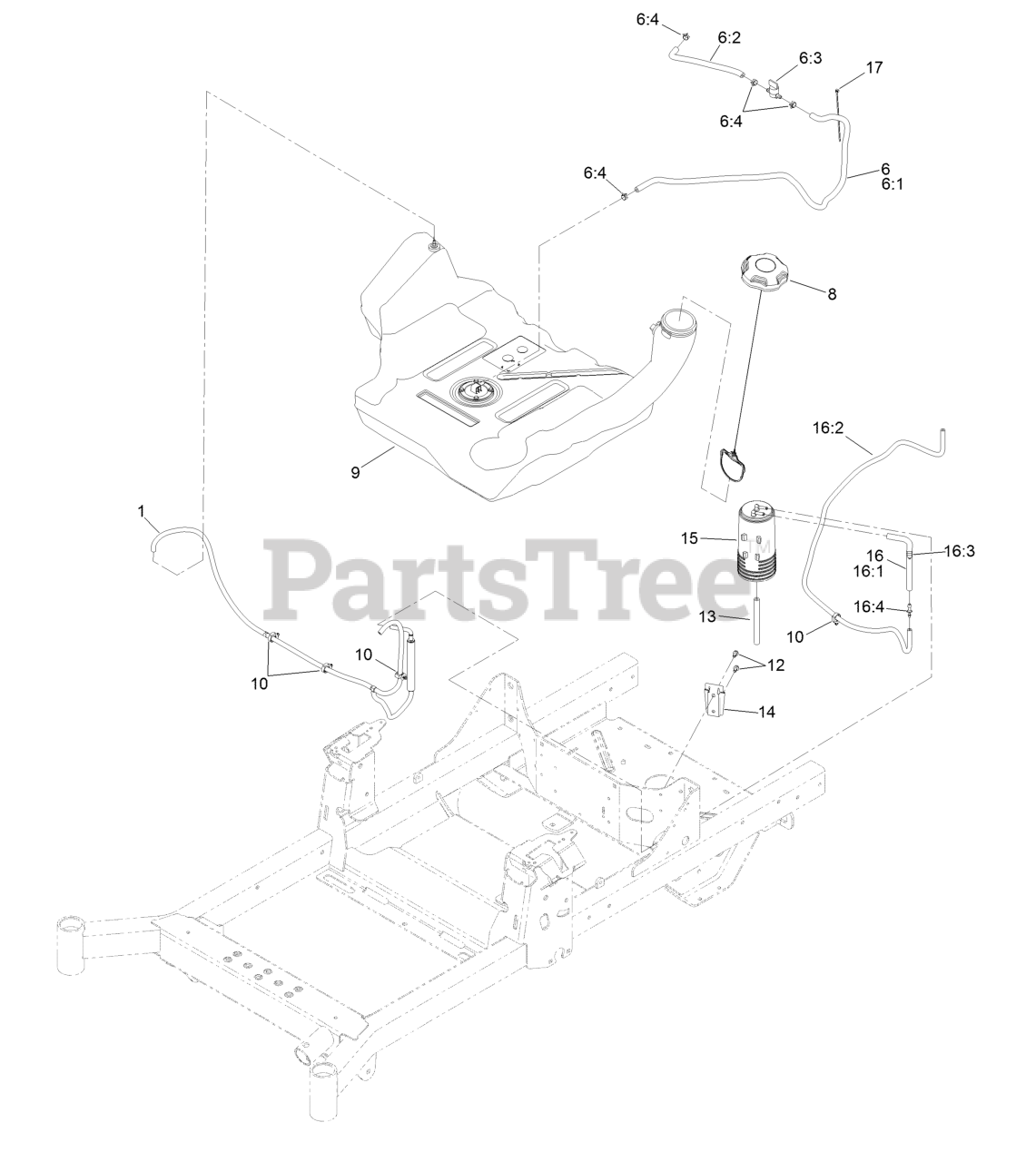

Fuel Tank and Vent Hose System Assembly Parts Diagram

  • Title

1

Exmark 126-8734

Vent Hose ASM

$140.99

$

Usually ships in 3-6 days

0

6

Exmark 126-8739

Fuel Hose ASM

$60.99

$

Usually ships in 3-6 days

0

6:1

Exmark 110-5702

Hose-Fuel

$24.99

$

Usually ships in 3-6 days

0

6:2

Exmark 109-0282

Hose-Fuel

$7.99

$

Usually ships in 3-6 days

0

6:3

Exmark 1-603770

Valve-Fuel

$7.99

$

In Stock, Qty 16

0

6:4

Exmark 2412-98

Clamp-Hose

$1.49

$

In Stock, Qty 20+

0

8

Exmark 126-4723

Cap-Fuel
(Superseded to 135-4801)

$36.99

$

In Stock, only 1 left!

0

9

Exmark 126-4724

Tank-Fuel

$407.99

$

Usually ships in 3-6 days

0

10

Exmark 126-5523

Clip

$2.99

$

Usually ships in 3-6 days

0

12

Exmark 93-6083

Screw-HWH

$1.49

$

In Stock, Qty 12

0

13

Exmark 109-0678

Hose-Fuel

$5.49

$

Usually ships in 3-6 days

0

14

Exmark 114-0292

Bracket-Canister, Carbon

$12.99

$

Usually ships in 3-6 days

0

15

Exmark 117-1221

Canister-Carbon, 800Cc

$73.99

$

In Stock, only 2 left!

0

16

Exmark 126-8892

Vent Hose ASM

$104.99

$

In Stock, only 1 left!

0

16:1

Exmark 110-1876

Hose-Fuel

$12.99

$

In Stock, only 4 left!

0

16:2

Exmark 108-9698

Hose-Fuel

$43.99

$

Usually ships in 3-6 days

0

16:3

Exmark 120-2038

Cartridge-Valve, Check

$44.99

$

Usually ships in 3-6 days

0

16:4

Exmark 106-8150

Fitting-Straight

$3.99

$

Usually ships in 3-6 days

0

17

Exmark 1-303287

Tie-Cable

$1.49

$

Usually ships in 3-6 days

0
