Raider - Bad Boy Walk-Behind Mower (2025) DECK HEIGHT LINKAGE Parts Diagram

Walk-Behind Mower

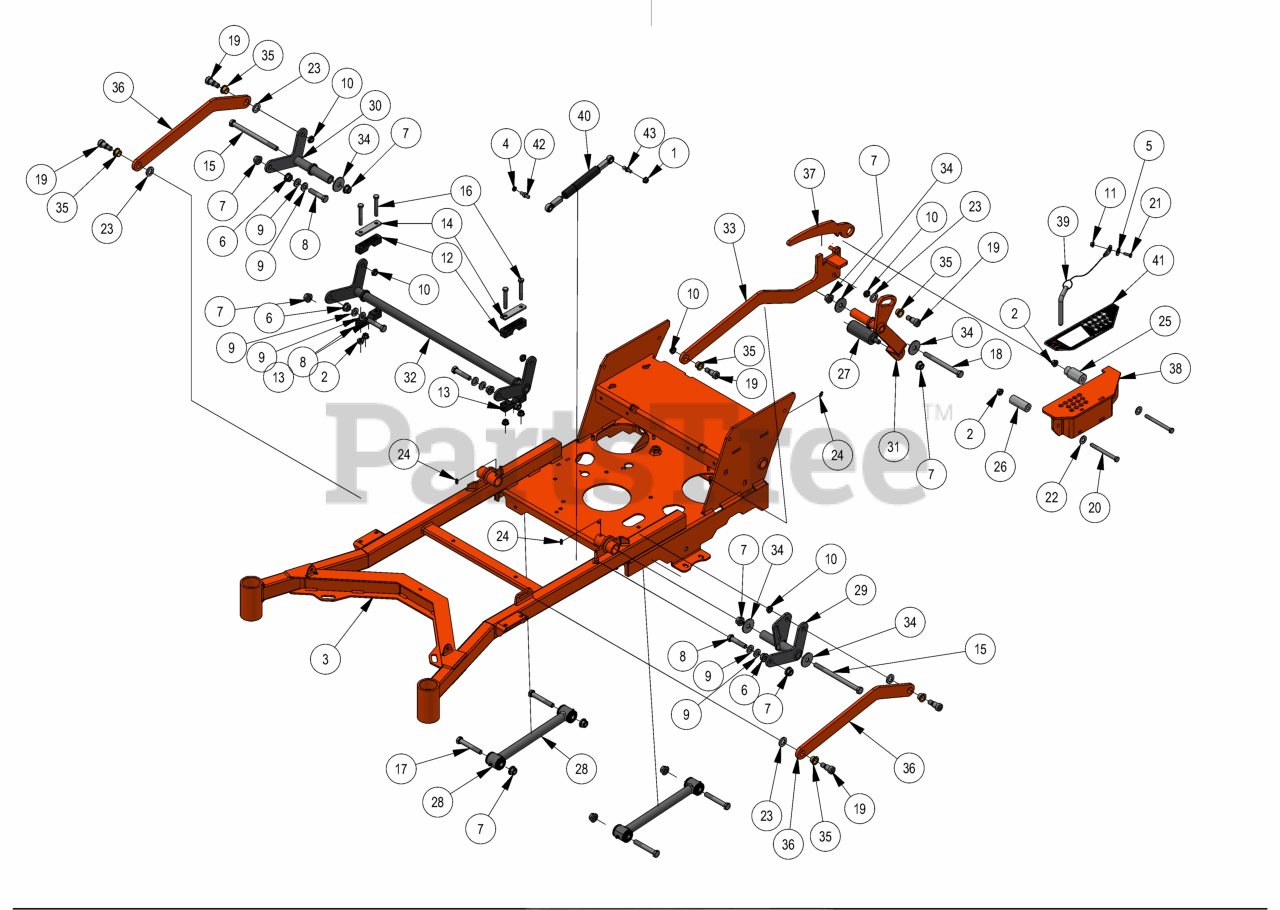

DECK HEIGHT LINKAGE Parts Diagram

  • Title

1

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

Usually ships in 4-7 days

0

2

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, only 3 left!

0

3

Bad Boy 070-5102-00

2023 Walk Frame

$341.99

$

Usually ships in 4-7 days

0

4

Bad Boy 013-9005-00

5/16-18 NYLON INSERT JAM LOCKNUT ZINC

$3.49

$

Usually ships in 4-7 days

0

5

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

6

Bad Boy 013-5300-00

1/2-13 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 6

0

7

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

8

Bad Boy 018-6037-00

1/2-13 X 2-1/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

9

Bad Boy 019-8054-00

.505 ID X 1.000 OD X .125 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

10

Bad Boy 018-4010-00

1/2-13 NYLON INSERT JAM LOCKNUT ZINC

$1.99

$

In Stock, Qty 8

0

11

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

12

Bad Boy 017-9077-00

Pillow Block MZ

$22.99

$

Usually ships in 4-7 days

0

13

Bad Boy 017-9078-00

Pillow Block MZ female

$22.99

$

Usually ships in 0 days

0

14

Bad Boy 017-9079-00

Pillow Block Strap

$22.99

$

Usually ships in 4-7 days

0

15

Bad Boy 018-0004-00

1/2-13 X 7 HEX CAP SCREW (GR.5) ZINC

$5.99

$

In Stock, Qty 6

0

16

Bad Boy 018-0028-00

3/8-16 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$4.99

$

Usually ships in 4-7 days

0

17

Bad Boy 018-0050-00

1/2-13 X 3-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

18

Bad Boy 018-1090-00

1/2-13 X 5 1/2 HEX CAP SCREW (GR.5) ZINC

$3.49

$

Usually ships in 4-7 days

0

19

Bad Boy 018-3001-00

5/8 X 5/8 SOCKET SHOULDER BOLT ZINC YELLOW

$16.99

$

In Stock, Qty 8

0

20

Bad Boy 018-7055-00

3/8-16 X 4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

Usually ships in 4-7 days

0

21

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

22

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, only 2 left!

0

23

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 5

0

24

Bad Boy 024-3050-00

1/4 DRIVE-TYPE STRAIGHT GREASE FITTING (NO BALL) ZINC YELLOW

$1.49

$

Usually ships in 4-7 days

0

25

Bad Boy 025-0081-00

Stand On Spacer 2.5'' With shoulder

$15.99

$

Usually ships in 4-7 days

0

26

Bad Boy 025-5343-00

Stand On Spacer 2.5''

$11.99

$

Usually ships in 4-7 days

0

27

Bad Boy 026-0026-00

Knurled Pedal

$41.99

$

In Stock, only 3 left!

0

28

Bad Boy 028-0004-22

Hybrid Turnbuckle/Deck Locator

$49.99

$

In Stock, Qty 20+

0

29

Bad Boy 028-0091-00

23WB Right Rear Actuator

$

$

Currently unavailable

30

Bad Boy 028-0092-00

23WB Left Rear Actuator

$

$

Currently unavailable

31

Bad Boy 028-0095-00

23WB Foot Pivot weldment

$

$

Not available

32

Bad Boy 028-0098-00

23WB Actuator bar

$

$

Currently unavailable

33

Bad Boy 031-0059-00

23WB Deck Height Lever weldment

$

$

Currently unavailable

34

Bad Boy 032-4051-00

.520 ID X 1.750 OD X .120 THICK FLAT WASHER ZINC

$18.99

$

Usually ships in 4-7 days

0

35

Bad Boy 032-5052-00

.627 ID X .753 OD X .500 LGTH X 1.000 FLG OD X .094 FLG THICK FLANGED BEARING OIL-IMPREG BRNZ

$4.99

$

In Stock, Qty 6

0

36

Bad Boy 039-0227-00

23WB Actuator link V

$

$

Not available

37

Bad Boy 039-0229-00

23WB Deck Lever Lock V2

$

$

Not available

38

Bad Boy 039-0233-00

23WB deck height indicator weldment V3 4.27

$

$

Currently unavailable

39

Bad Boy 040-4004-00

2023 stand on Height Adj Pin

$17.99

$

Usually ships in 4-7 days

0

40

Bad Boy 087-5400-00

200 lb Gas Spring- 54" Deck outlaw

$66.99

$

Usually ships in 4-7 days

0

41

Bad Boy 091-9002-00

2023 WB Deck Height Decal

$

$

Not available

42

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 3 left!

0

43

Bad Boy 018-2055-00

10mm Damper Ball Stud-XP Linkage

$2.49

$

In Stock, only 2 left!

0
