Ram 44 (968999551) - Dixon 44" Ram Zero-Turn Mower, 26hp Briggs & Stratton (2007) HYDRAULIC ASSEMBLY Parts Diagram

44" Ram Zero-Turn Mower, 26hp Briggs & Stratton

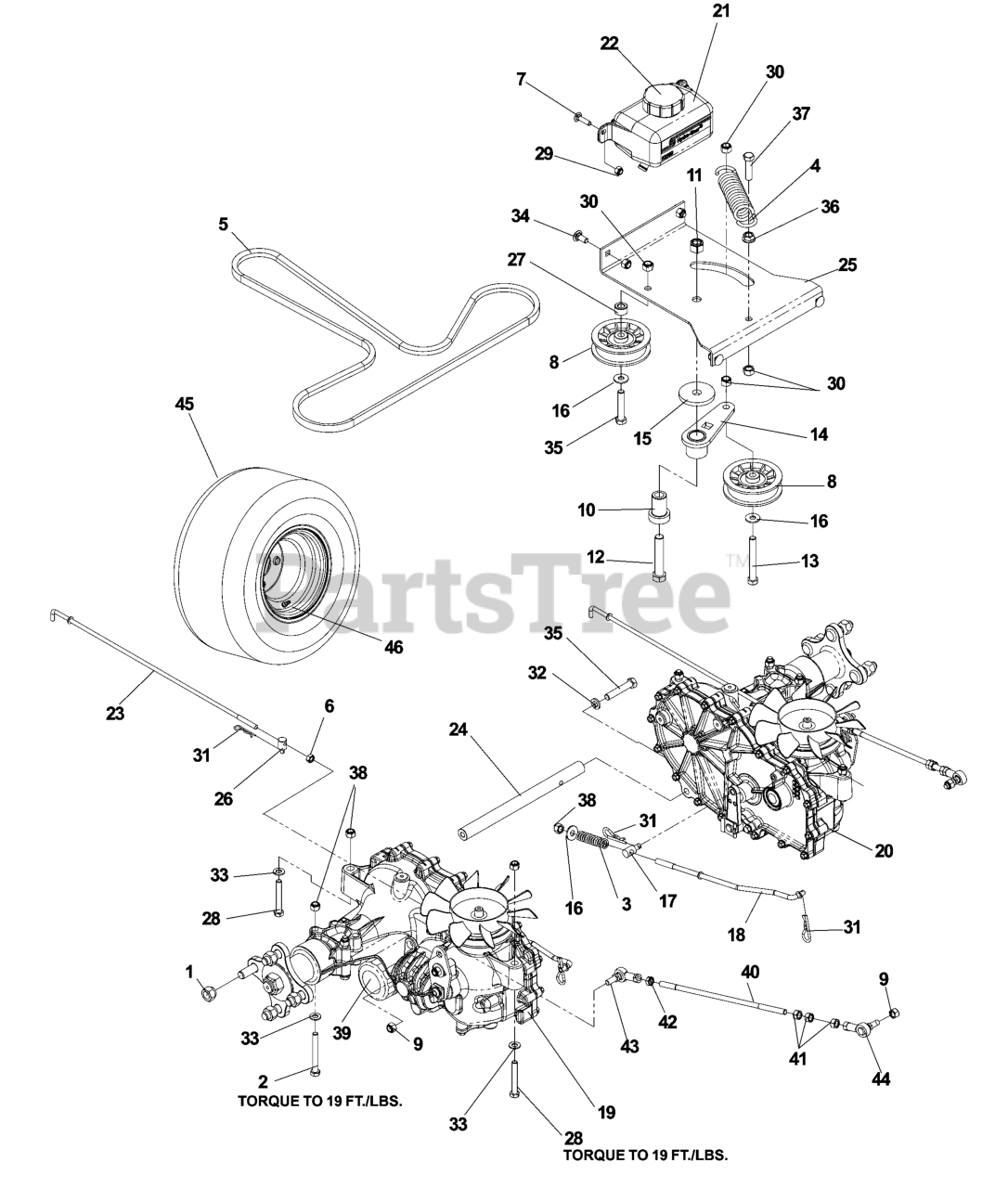

HYDRAULIC ASSEMBLY Parts Diagram

  • Title

1

Dixon 539101173

LUG NUT 1/2F

$

$

Not available

2

Dixon 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 16

0

3

Dixon 539102796

SPRING

$3.99

$

Usually ships in 3-10 days

0

4

Dixon 539103256

SPRING

$12.99

$

In Stock, Qty 20+

0

5

Dixon 539104334

PUMP BELT
(Superseded to 510201501)

$46.99

$

In Stock, Qty 20+

0

6

Dixon 539108739

NUT 1/4-28 HEX ZD

$3.99

$

Usually ships in 3-10 days

0

7

Dixon 539109800

RHSNB, 1/4-20 X 1, GR5
(Superseded to 592807801)

$4.99

$

In Stock, only 4 left!

0

8

Dixon 539110311

PULLEY, IDLER

$13.99

$

In Stock, Qty 20+

0

9

Dixon 539110943

NUT 5/16F NYLOC

$3.99

$

Usually ships in 3-10 days

0

10

Dixon 539101231

IDLER SPINDLE

$10.99

$

In Stock, Qty 20+

0

11

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

12

Dixon 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

13

Dixon 539101350

TAPBOLT, 3/8C X 3

$6.49

$

In Stock, only 4 left!

0

14

Dixon 539112092

IDLER ARM WELDMENT
(Superseded to 583593901)

$13.99

$

In Stock, Qty 10

0

15

Dixon 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 20+

0

16

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

17

Dixon 539112308

BRAKE SWIVEL

$10.99

$

Usually ships in 3-10 days

0

18

Dixon 539112309

BRAKE LINKAGE, LOWER

$84.99

$

Usually ships in 3-10 days

0

19

Dixon 539114261

HG_ZT2800, RT, NON CHARGED

Note: MODELS: 968999551, 968999552

$708.99

$

Usually ships in 3-10 days

0

20

Dixon 539114260

HG_ZT2800, LT, NON CHARGED

Note: MODELS: 968999551, 968999552

$1092.99

$

Usually ships in 3-10 days

0

21

Dixon 539112318

HG_EXPANSION TANK W/CAP

$80.99

$

In Stock, Qty 5

0

22

Dixon 539112449

HG_CAP

$

$

Not available

23

Dixon 539112319

BYPASS LINKAGE

$21.99

$

Usually ships in 3-10 days

0

24

Dixon 539112342

2800 CROSS SUPPORT

$

$

Not available

25

Dixon 539112407

IDLER PULLEY PLATE

$

$

Not available

26

Dixon 539112949

SWIVEL, 1/4-28

$8.99

$

Usually ships in 3-10 days

0

27

Dixon 539923515

SPACER

$4.99

$

Usually ships in 3-10 days

0

28

Dixon 539976938

CAPSCREW

$3.99

$

In Stock, Qty 5

0

29

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

30

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

31

Dixon 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

32

Dixon 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

33

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

34

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

35

Dixon 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 12

0

36

Dixon 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

37

Dixon 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

38

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

39

Dixon 539113466

HG_FILTER, ZT4800

$60.99

$

Usually ships in 3-10 days

0

40

Dixon 539112099

DRIVE LINKAGE

$4.99

$

Usually ships in 3-10 days

0

41

Dixon 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

42

Dixon 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

43

Dixon 539110604

SPHERICAL ROD END, LH

$24.99

$

In Stock, only 1 left!

0

44

Dixon 539110603

SPHERICAL ROD END, RH

$40.99

$

Usually ships in 3-10 days

0

45

Dixon 539117383

WHEEL TIRE ASM 18X8.5 - 8

Note: MODELS: 968999551, 968999559, 968999560

$

$

Not available

46

Dixon 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

Dixon 539112669

HOSE KIT

Note: (NOT SHOWN)

$66.99

$

Usually ships in 3-10 days

0
