Ram 44 - Dixon 44" Ram Zero-Turn Mower (2006) ENGINE (KAWASAKI) Parts Diagram

44" Ram Zero-Turn Mower

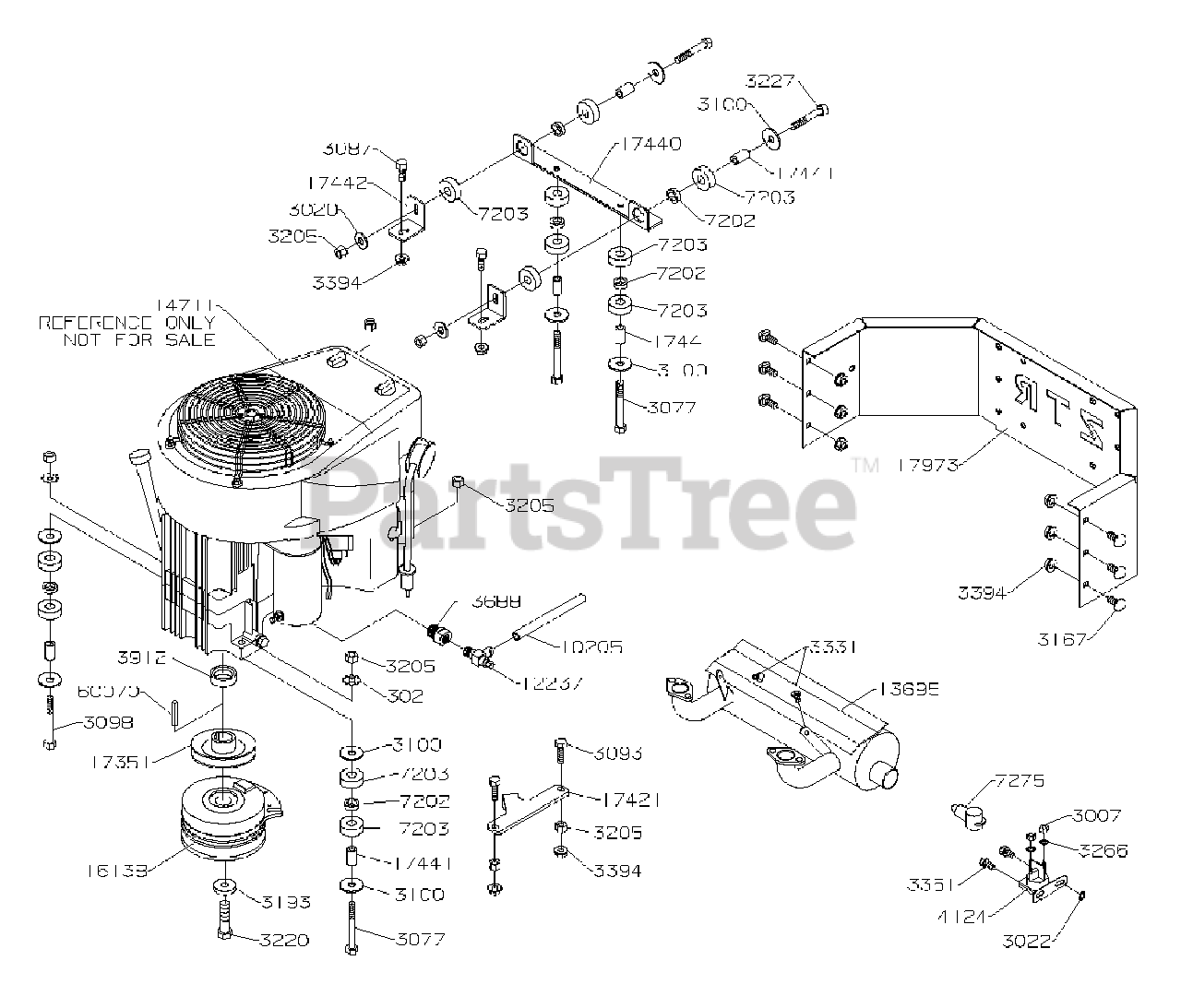

ENGINE (KAWASAKI) Parts Diagram

  • Title
2237

2237

R/B 2237 LIFT TIE ROD WLDT

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3077

Dixon 3077

5/16-18X2-3/4HHB GR5

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3098

3098

5/16-18X3 HHB GR5

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3331

3331

M6XP1X8MM HHBG8.8

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3912

3912

SPACER .50

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

7202

7202

ISO-MOUNT INSERT

$

$

Not available

7203

7203

ISO-MOUNT BUSHING

$

$

Not available

7275

7275

TERMINAL COVER-SM

$

$

Not available

10205

10205

OIL DRAIN HOSE

$

$

Not available

13688

13688

$

$

Not available

13695

13695

MUFFLER

$

$

Not available

14711

14711

$

$

Not available

16138

16138

CLUTCH

$

$

Not available

17351

17351

DRIVE PULLEY-ENGINE

$

$

Not available

17421

17421

CLUTCH STOP

$

$

Not available

17440

17440

ISO MT. PLATE

$

$

Not available

17441

17441

ISO MT. BUSHING

$

$

Not available

17442

17442

ISO MT. BRKT.

$

$

Not available

17973

17973

ENGINE GUARD

$

$

Not available

60070

60070

KEY 1/4`SQ X 1-1/4`

$

$

Not available
