Ram 44 - Dixon 44" Ram Zero-Turn Mower (2006) ENGINE (KOHLER) Parts Diagram

44" Ram Zero-Turn Mower

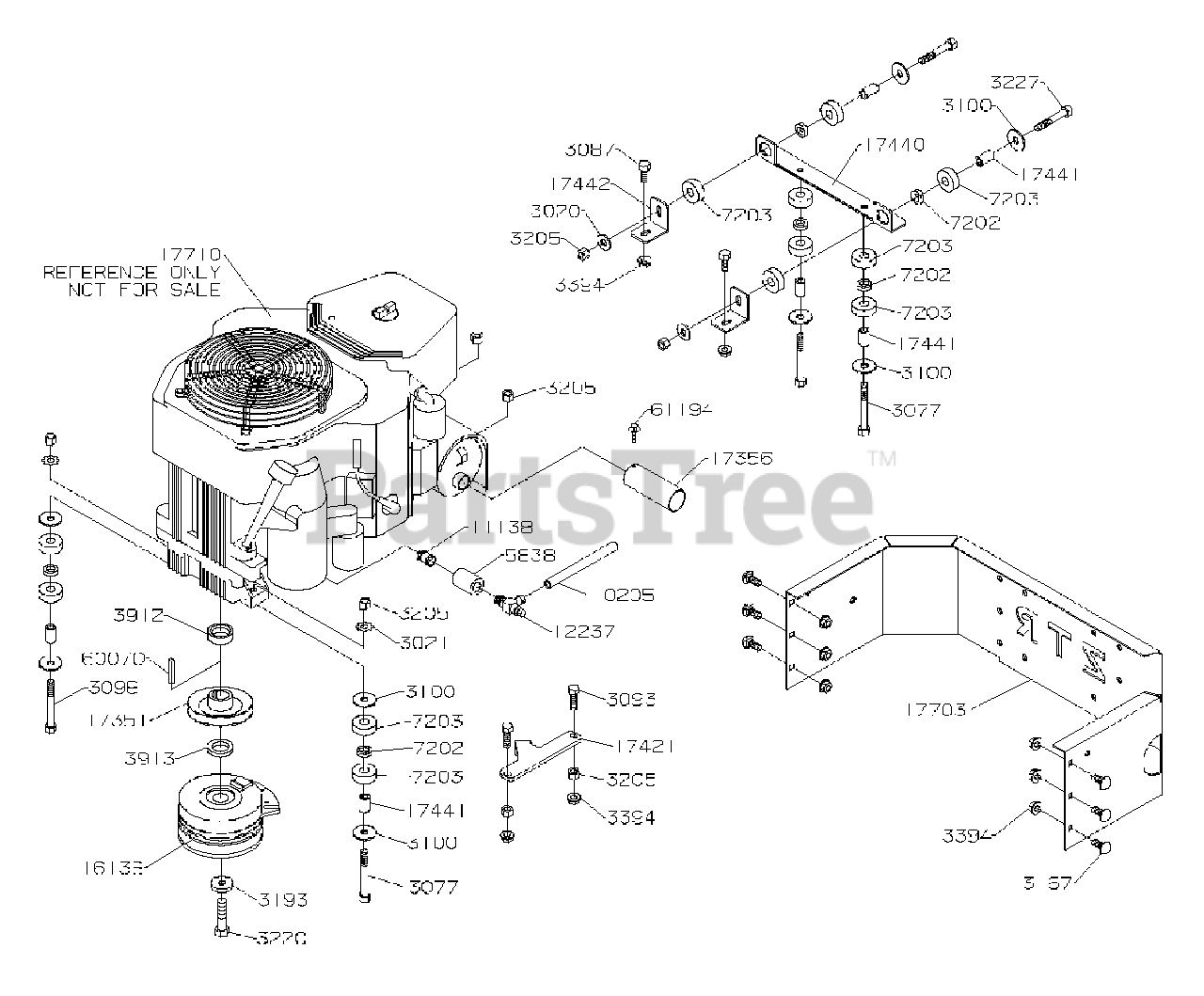

ENGINE (KOHLER) Parts Diagram

  • Title
3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3077

Dixon 3077

5/16-18X2-3/4HHB GR5

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3098

3098

5/16-18X3 HHB GR5

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3912

3912

SPACER .50

$

$

Not available

3913

3913

SPACER .25

$

$

Not available

5838

5838

FEMALE COUPLING

$

$

Not available

7202

7202

ISO-MOUNT INSERT

$

$

Not available

7203

7203

ISO-MOUNT BUSHING

$

$

Not available

10205

10205

OIL DRAIN HOSE

$

$

Not available

11138

11138

NIPPLE

$

$

Not available

12237

12237

3/8X2 GALV PIPE NIPP

$

$

Not available

16138

16138

CLUTCH

$

$

Not available

17351

17351

DRIVE PULLEY-ENGINE

$

$

Not available

17356

17356

EXHAUST PIPE

$

$

Not available

17421

17421

CLUTCH STOP

$

$

Not available

17440

17440

ISO MT. PLATE

$

$

Not available

17441

17441

ISO MT. BUSHING

$

$

Not available

17442

17442

ISO MT. BRKT.

$

$

Not available

17703

17703

REAR CHANNEL

$

$

Not available

17710

17710

$

$

Not available

60070

60070

KEY 1/4`SQ X 1-1/4`

$

$

Not available

61194

61194

SCREW KOH-25-086-40

$

$

Not available
