Ram 48 ZT (965882601) - Dixon 48" Ram Zero-Turn Mower (2008-12) HYDRAULIC PUMP MOTOR Parts Diagram

48" Ram Zero-Turn Mower

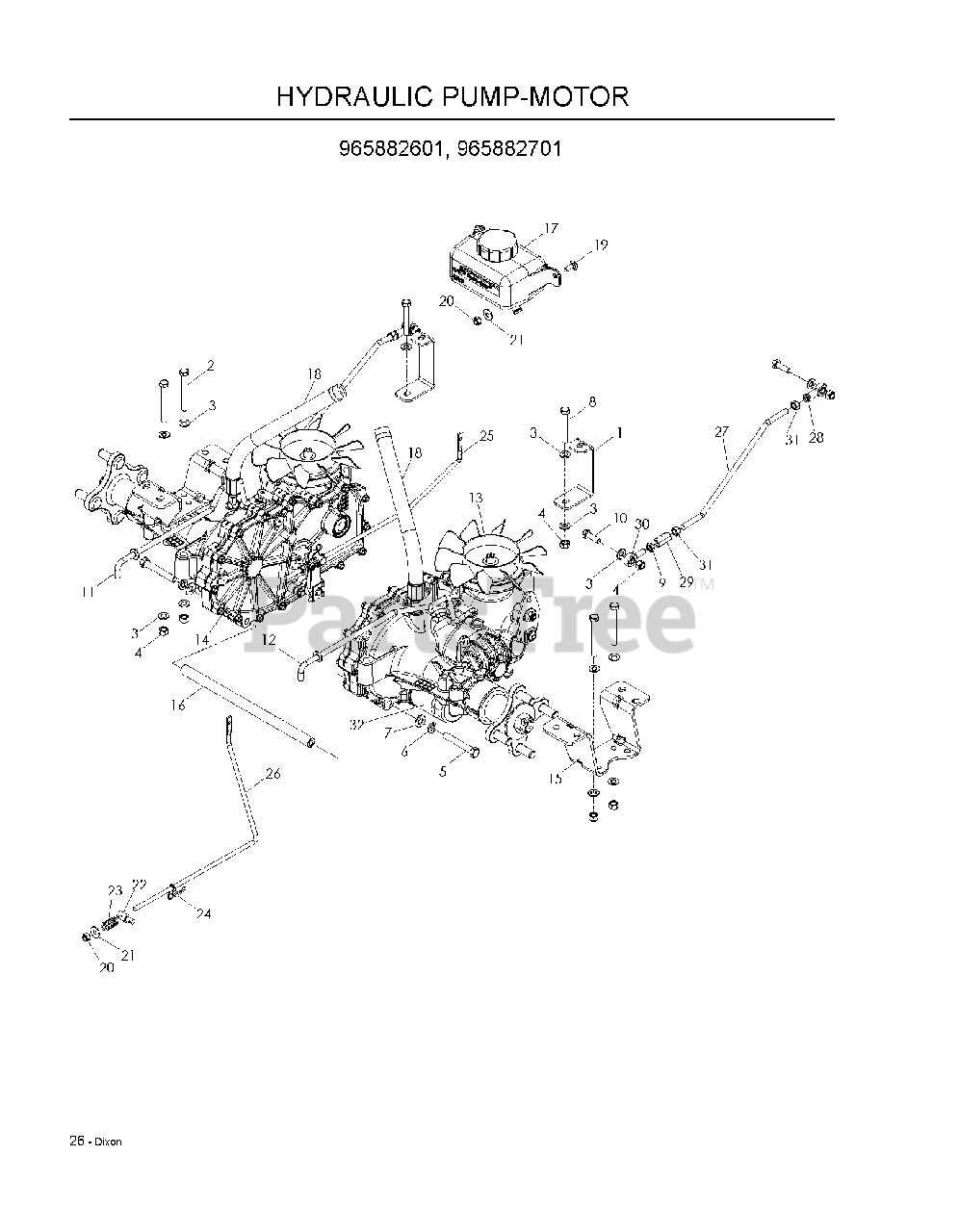

HYDRAULIC PUMP MOTOR Parts Diagram

  • Title

1

Dixon 522460702

SUPPORT.FRONT.TRANS.BLACK.
(Superseded to 580806502)

$4.99

$

In Stock, Qty 20+

0

2

Dixon 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 16

0

3

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

4

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

5

Dixon 539990637

HCS 3/8C X 2 1/2

$1.49

$

Usually ships in 3-10 days

0

6

Dixon 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

7

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

8

Dixon 539976938

CAPSCREW

$3.99

$

In Stock, Qty 5

0

9

Dixon 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

10

Dixon 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

11

Dixon 522706002

ROD, BYPASS, RT

Note: RT

$7.99

$

Usually ships in 3-10 days

0

12

Dixon 522706001

ROD, BYPASS, LT

Note: LT

$9.99

$

Usually ships in 3-10 days

0

13

Dixon 522447402

HG_TRANS, ZT-2800 RT

Note: RT

$1011.99

$

Usually ships in 3-10 days

0

14

Dixon 522447401

HG_TRANS, ZT-2800 LEFT

Note: LT

$

$

Not available

15

Dixon 510185102

EZT MOUNT, REAR, BLACK

$37.99

$

In Stock, Qty 5

0

16

Dixon 510184103

SPACER TUBE, EZT, 11.08

$47.99

$

In Stock, only 1 left!

0

17

Dixon 539112318

HG_EXPANSION TANK W/CAP

$80.99

$

In Stock, Qty 5

0

18

Dixon 522439801

HOSE ASSY

$

$

Not available

19

Dixon 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 539990598

WASHER 1/4 FLAT

$

$

Not available

22

Dixon 539112308

BRAKE SWIVEL

$10.99

$

Usually ships in 3-10 days

0

23

Dixon 539101224

SPRING

$7.49

$

In Stock, only 1 left!

0

24

Dixon 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

25

Dixon 510375401

ROD EZT BRAKE LT
(Superseded to 522909001)

Note: LT

$

$

Not available

26

Dixon 510375402

ROD EZT BRAKE RT
(Superseded to 522909002)

Note: RT

$

$

Not available

27

Dixon 522945001

ROD, MOTION CONTROL
(Superseded to 580624201)

$4.99

$

In Stock, only 1 left!

0

28

Dixon 539115729

RH ROD END
(Superseded to 579764601)

$8.99

$

In Stock, Qty 6

0

29

Dixon 539116689

ROD END COUPLER

$

$

Not available

30

Dixon 539116690

ROD.END.LH
(Superseded to 588692502)

$9.99

$

In Stock, Qty 11

0

31

Dixon 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

32

Dixon 539113466

HG_FILTER, ZT4800

$60.99

$

Usually ships in 3-10 days

0

Dixon 539120772

BELT, EZT HYDRO

Note: NOT SHOWN

$40.99

$

In Stock, Qty 10

0
