Ram 50 KZ (965882901) - Dixon 50" Ram Zero-Turn Mower (2008-12) ENGINE PLATE Parts Diagram

50" Ram Zero-Turn Mower

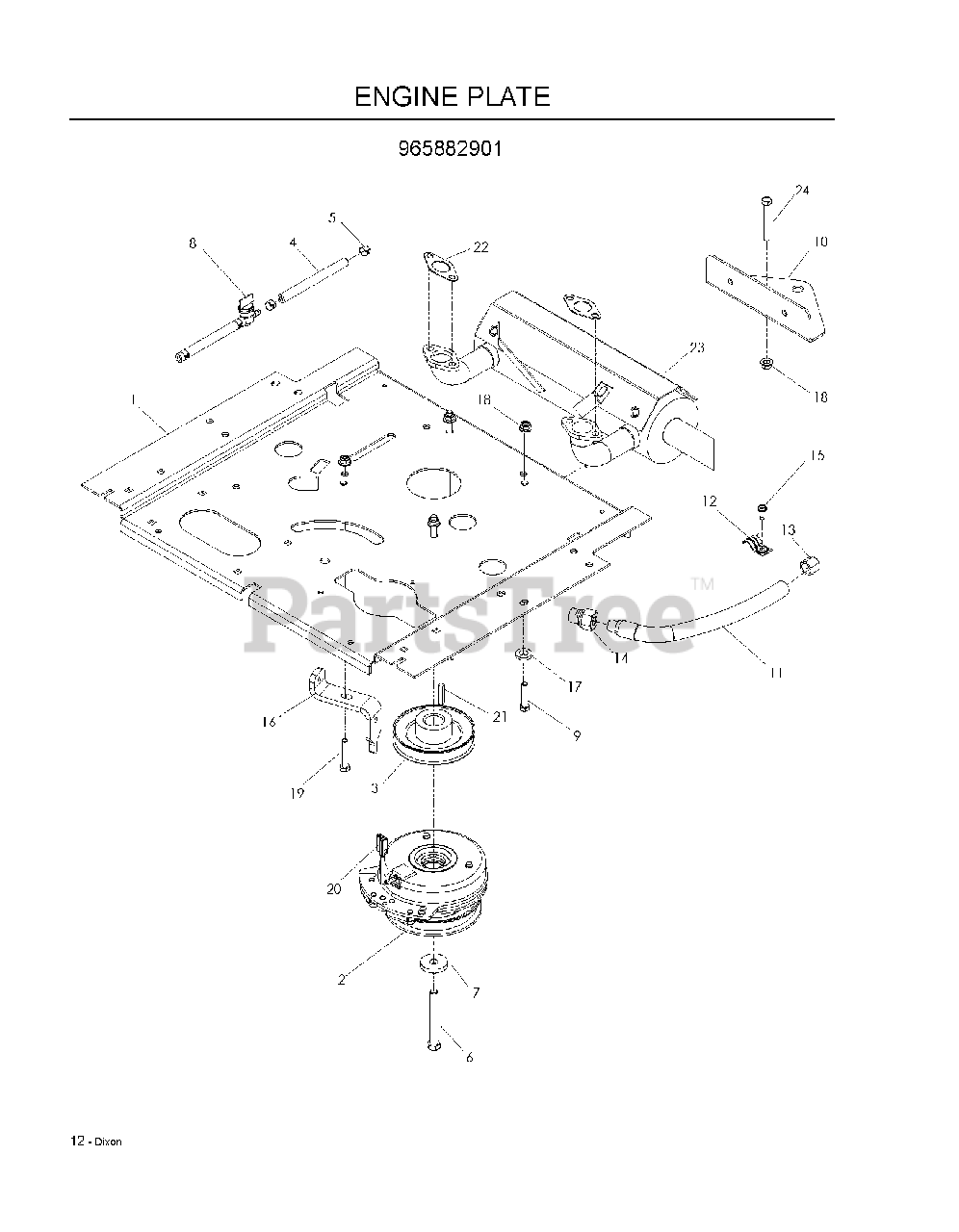

ENGINE PLATE Parts Diagram

  • Title

1

Dixon 516007502

PLATE, ENGINE, BLACK

$160.99

$

Usually ships in 3-10 days

0

2

Dixon 539103245

CLUTCH, ELECTRIC

$

$

Not available

3

Dixon 539109639

PULLEY

$

$

Not available

4

Dixon 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

5

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

6

Dixon 539976944

HCS 7/16-20X3-1/2 GR 5 ZN
(Superseded to 581332804)

$4.99

$

In Stock, Qty 5

0

7

Dixon 539110064

CLUTCH, WASHER
(Superseded to 532126197)

$8.99

$

In Stock, Qty 20+

0

8

Dixon 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

9

Dixon 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$1.49

$

Usually ships in 3-10 days

0

10

Dixon 516011802

HITCH, BLACK

$6.99

$

In Stock, Qty 19

0

11

Dixon 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

12

Dixon 539101363

CLAMP

$3.99

$

In Stock, only 2 left!

0

13

Dixon 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

14

Dixon 522599001

ADAPTER, OIL DRAIN
(Superseded to 522599002)

$

$

Not available

15

Dixon 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

16

Dixon 522459702

STOP, CLUTCH BLK

$34.99

$

Usually ships in 3-10 days

0

17

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

18

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

19

Dixon 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

20

Dixon 539105637

CLUTCH HARNESS

$24.99

$

In Stock, Qty 6

0

21

Dixon 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

In Stock, Qty 11

0

22

Dixon 539108199

EXHAUST GASKET - KAW

$8.99

$

Usually ships in 3-10 days

0

23

Dixon 539119684

MUFFLER

$242.99

$

Usually ships in 3-10 days

0

24

Dixon 539991046

BOLT 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0
