Ram 52 ZT (966038701) - Dixon 52" Ram Zero-Turn Mower (2009-06) ENGINE PLATE Parts Diagram

52" Ram Zero-Turn Mower

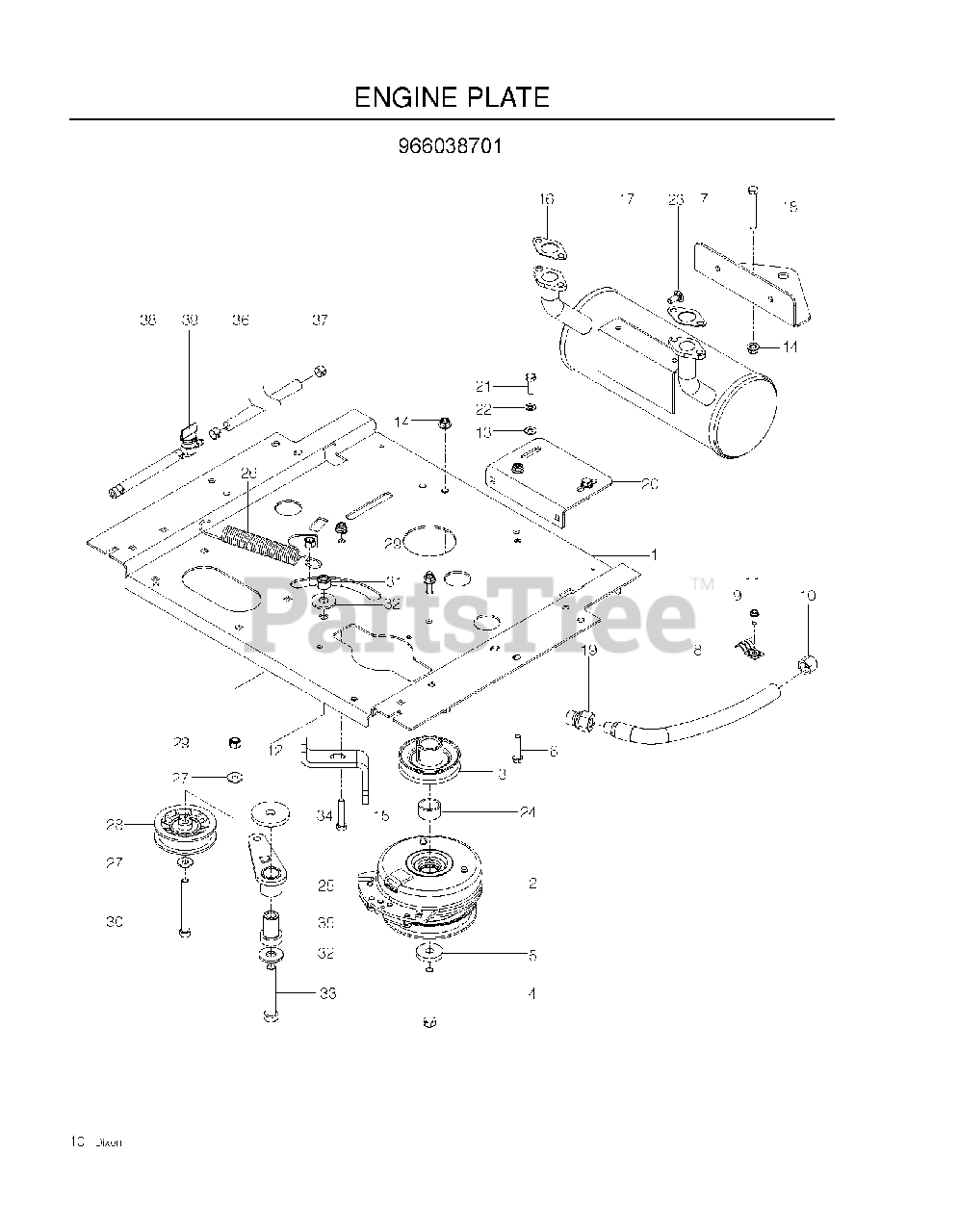

ENGINE PLATE Parts Diagram

  • Title

1

Dixon 516007502

PLATE, ENGINE, BLACK

$160.99

$

Usually ships in 3-10 days

0

2

Dixon 505287301

CLUTCH, 105 FT-LBS

$278.99

$

In Stock, only 2 left!

0

3

Dixon 539114530

PULLEY, ENGINE
(Superseded to 587537401)

$26.99

$

In Stock, Qty 9

0

4

Dixon 539976944

HCS 7/16-20X3-1/2 GR 5 ZN
(Superseded to 581332804)

$4.99

$

In Stock, Qty 5

0

5

Dixon 539110064

CLUTCH, WASHER
(Superseded to 532126197)

$8.99

$

In Stock, Qty 20+

0

6

Dixon 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$1.49

$

Usually ships in 3-10 days

0

7

Dixon 516011802

HITCH, BLACK

$6.99

$

In Stock, Qty 19

0

8

Dixon 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

9

Dixon 539101363

CLAMP

$3.99

$

In Stock, only 2 left!

0

10

Dixon 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

11

Dixon 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

12

Dixon 522459702

STOP, CLUTCH BLK

$34.99

$

Usually ships in 3-10 days

0

13

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

14

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

15

Dixon 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

16

Dixon 539108199

EXHAUST GASKET - KAW

$8.99

$

Usually ships in 3-10 days

0

17

Dixon 539105897

MUFFLER KAWASAKI GEN II

$424.99

$

Usually ships in 3-10 days

0

18

Dixon 539991046

BOLT 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

19

Dixon 522599001

ADAPTER, OIL DRAIN
(Superseded to 522599002)

$

$

Not available

20

Dixon 525295102

BRACKET MUFFLER, BLK

$21.99

$

Usually ships in 3-10 days

0

21

Dixon 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

22

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

23

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

24

Dixon 539112252

T & B SPACER

$

$

Not available

25

Dixon 539112092

IDLER ARM WELDMENT
(Superseded to 583593901)

$13.99

$

In Stock, Qty 6

0

26

Dixon 532196105

SPRING, DECK DRIVE

$7.49

$

In Stock, Qty 20+

0

27

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

28

Dixon 539110311

PULLEY, IDLER

$13.99

$

In Stock, Qty 20+

0

29

Dixon 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

30

Dixon 539109389

HCS 3/8-16X3 1/2 GR5

$4.99

$

In Stock, Qty 10

0

31

Dixon 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

32

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available

33

Dixon 539103433

HCS 1/2C X 3 1/4

$4.99

$

In Stock, Qty 14

0

34

Dixon 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 20+

0

35

Dixon 539101231

IDLER SPINDLE

$10.99

$

In Stock, Qty 20+

0

36

Dixon TBD

TBD

$

$

Not available

37

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

38

Dixon 539115736

HOSE 1/4 X 8

$4.99

$

Usually ships in 3-10 days

0

39

Dixon 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0
