Ram 61 KZ (965883001) - Dixon 61" Ram Zero-Turn Mower (2008-12) ENGINE PLATE Parts Diagram

61" Ram Zero-Turn Mower

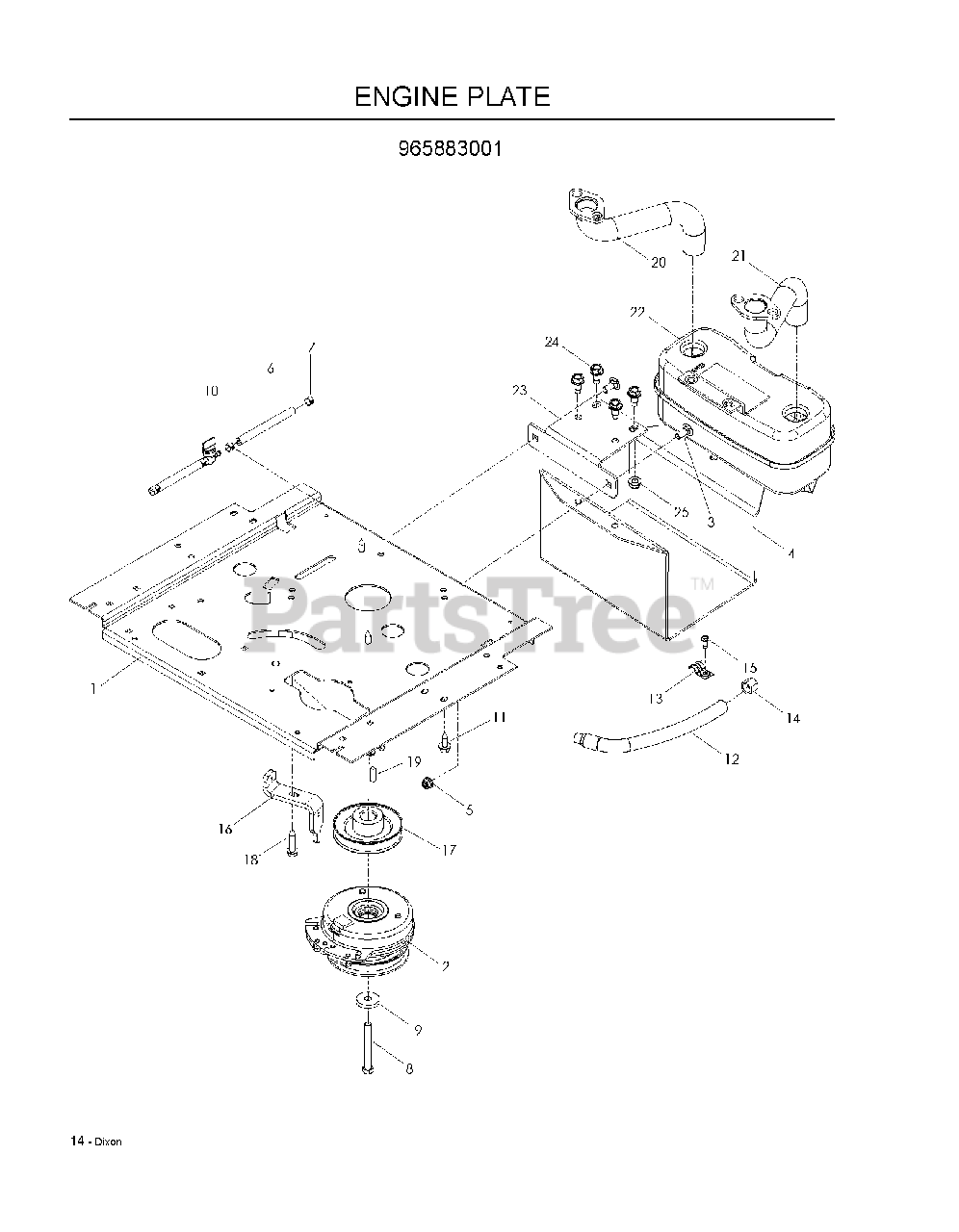

ENGINE PLATE Parts Diagram

  • Title

1

Dixon 516007502

PLATE, ENGINE, BLACK

$160.99

$

Usually ships in 3-10 days

0

2

Dixon 539103245

CLUTCH, ELECTRIC

$

$

Not available

3

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

4

Dixon 510260502

GUARD, MUFFLER, BLACK

$91.99

$

In Stock, only 1 left!

0

5

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

6

Dixon 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

7

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

8

Dixon 539976944

HCS 7/16-20X3-1/2 GR 5 ZN
(Superseded to 581332804)

$4.99

$

In Stock, Qty 5

0

9

Dixon 539110064

CLUTCH, WASHER
(Superseded to 532126197)

$8.99

$

In Stock, Qty 20+

0

10

Dixon 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

11

Dixon 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

$5.99

$

In Stock, Qty 20+

0

12

Dixon 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

13

Dixon 539101363

CLAMP

$3.99

$

In Stock, only 2 left!

0

14

Dixon 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

15

Dixon 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

16

Dixon 522459702

STOP, CLUTCH BLK

$34.99

$

Usually ships in 3-10 days

0

17

Dixon 539109639

PULLEY

$

$

Not available

18

Dixon 539110025

BOLT 3/8-16 X 1 1/2 ZINC CLEAR

$4.99

$

Usually ships in 3-10 days

0

19

Dixon 539105308

KEY 1/4 SQ X 1.0

$4.99

$

In Stock, Qty 6

0

20

Dixon 532159955

RP.EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 581881101)

Note: RT

$44.99

$

In Stock, only 4 left!

0

21

Dixon 532160589

RP.EXHAUST.TUBE.RH.BS/TWIN
(Superseded to 581881001)

Note: LT

$31.99

$

In Stock, only 3 left!

0

22

Dixon 539131604

MUFFLER ASM TWIN

$44.99

$

In Stock, Qty 20+

0

23

Dixon 510260402

BRACKET, MUFFLER, BLACK
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

24

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, Qty 5

0

25

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

Dixon 539105637

CLUTCH HARNESS

Note: NOT SHOWN

$24.99

$

In Stock, Qty 6

0
