Ram Ultra XS7227 72 (968999724) - Dixon 72" Ram Ultra Zero-Turn Mower, Kohler (2008) CHASSIS / FRAME Parts Diagram

72" Ram Ultra Zero-Turn Mower, Kohler

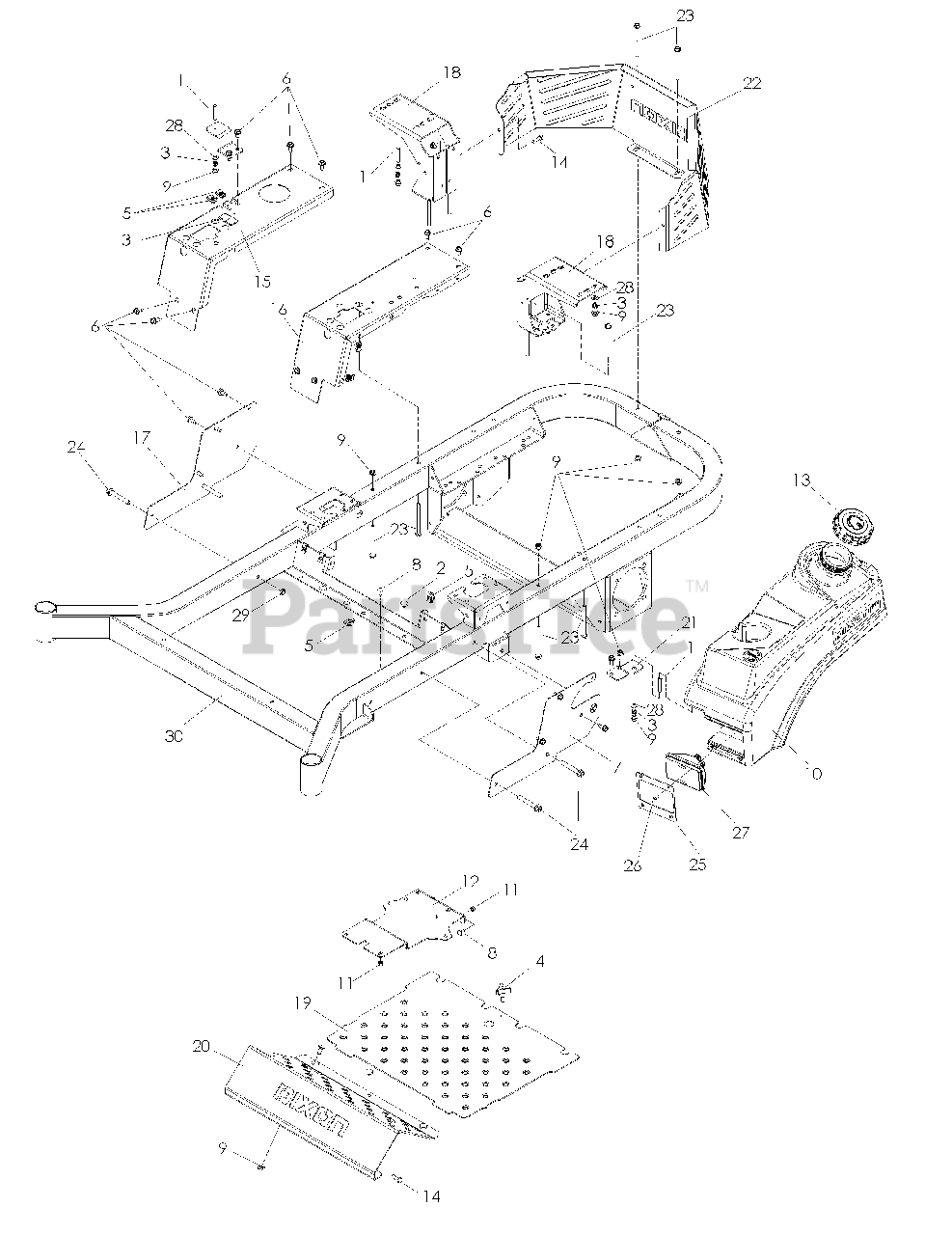

CHASSIS / FRAME Parts Diagram

  • Title

1

Dixon 539102502

STUD, 5/16C

$10.99

$

In Stock, Qty 5

0

2

Dixon 539102587

GROMMET, BUMPER

$4.99

$

In Stock, Qty 17

0

3

Dixon 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

4

Dixon 539104411

KNOB W/STUD
(Superseded to 597783101)

$2.49

$

In Stock, Qty 20+

0

5

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 16

0

6

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, Qty 5

0

7

Dixon 539132179

SIDE, LT, BL

$21.99

$

Usually ships in 3-10 days

0

8

Dixon 539111786

RHSSNB, 1/4-20X5/8

$1.99

$

Usually ships in 3-10 days

0

9

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

10

Dixon 539114057

TANK, FUEL, LT

$

$

Not available

11

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

12

Dixon 539131537

BATTERY MOUNT

$42.99

$

Usually ships in 3-10 days

0

13

Dixon 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$31.99

$

In Stock, Qty 7

0

14

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

15

Dixon 539131681

PANEL, FILLER, RT, DK BLUE

$51.99

$

Usually ships in 3-10 days

0

16

Dixon 539131684

PANEL, FILLER, LT - BLUE

$66.99

$

Usually ships in 3-10 days

0

17

Dixon 539131687

SIDE, RT, BL

Note: BL

$21.99

$

Usually ships in 3-10 days

0

18

Dixon 539131692

MOUNT, TANK, RR

Note: RR

$109.99

$

Usually ships in 3-10 days

0

19

Dixon 539132845

FLOOR PAN W/DECALS

$80.99

$

Usually ships in 3-10 days

0

20

Dixon 539131704

PLATE, FOOTREST, BL

$61.99

$

Usually ships in 3-10 days

0

21

Dixon 539131706

SUPPORT, TANK, FT, BLK

$18.99

$

Usually ships in 3-10 days

0

22

Dixon 539131710

GUARD, REAR, DIXON, BL

$145.99

$

Usually ships in 3-10 days

0

23

Dixon 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

24

Dixon 539131781

HHFS 3/8-16 X 2 3/4

$4.99

$

In Stock, only 2 left!

0

25

Dixon 539114075

PLATE LIGHT

$24.99

$

Usually ships in 3-10 days

0

26

Dixon 539114341

SCR #10-24 X 3/8 SKT HD BLK OX

$4.99

$

In Stock, only 4 left!

0

27

Dixon 539114232

LIGHT

$

$

Not available

28

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

29

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN

$

$

Not available

30

Dixon 539132843

FRAME W/DECALS

$897.99

$

Usually ships in 3-10 days

0

30

Dixon 539132844

FRAME W/DECALS, 72

$1214.99

$

Usually ships in 3-10 days

0

31

Dixon 532404951

PLUG DASH
(Superseded to 532439976)

$6.49

$

Usually ships in 3-10 days

0
