Ram Ultra XS7227 72 (968999724) - Dixon 72" Ram Ultra Zero-Turn Mower, Kohler (2008) PARKING BRAKE Parts Diagram

72" Ram Ultra Zero-Turn Mower, Kohler

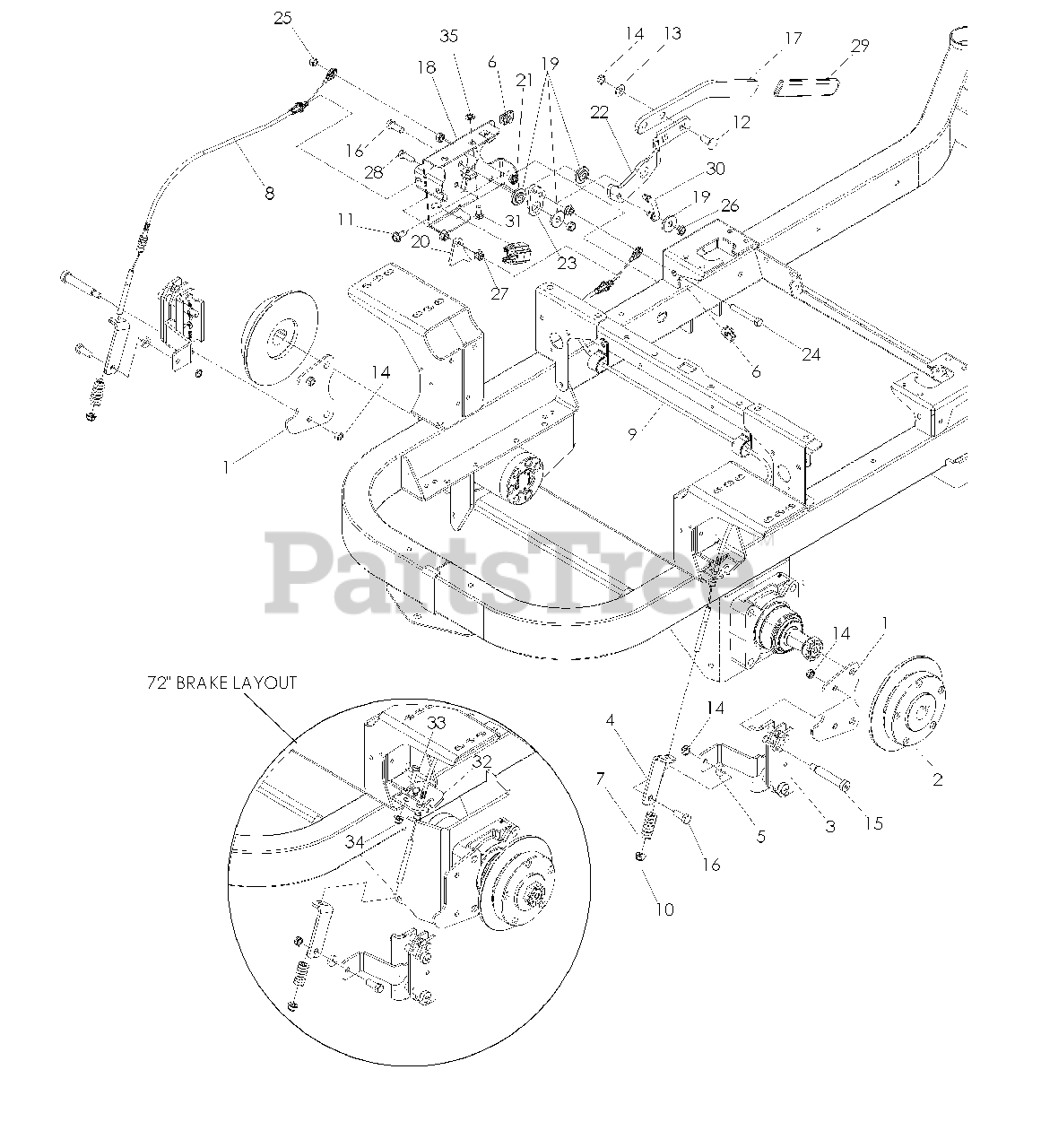

PARKING BRAKE Parts Diagram

  • Title

1

Dixon 539131599

PLATE, BRAKE

$14.99

$

Usually ships in 3-10 days

0

2

Dixon 539131737

HUB, 5 BOLT

$145.99

$

Usually ships in 3-10 days

0

3

Dixon 539131738

CALIPER PARK BRAKE

$109.99

$

Usually ships in 3-10 days

0

4

Dixon 539132176

BRACKET, L

Note: L

$

$

Not available

5

Dixon 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 20+

0

6

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 16

0

7

Dixon 539113952

SPRING

$7.49

$

Usually ships in 3-10 days

0

8

Dixon 539132173

CABLE, BRAKE, SHORT

Note: SHORT

$40.99

$

In Stock, only 3 left!

0

9

Dixon 539132174

CABLE, BRAKE, LONG
(Superseded to 582122001)

Note: LONG

$13.99

$

In Stock, only 2 left!

0

10

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

11

Dixon 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, Qty 5

0

12

Dixon 539990645

RHSNB 3/8C X 1

$3.99

$

Usually ships in 3-10 days

0

13

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

14

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN

$

$

Not available

15

Dixon 539113951

SB 3/8-16 X 2-1-1/2 SKT HDD ZD

$7.49

$

Usually ships in 3-10 days

0

16

Dixon 539990563

HCS 3/8C X 1

$1.49

$

Usually ships in 3-10 days

0

17

Dixon 539132160

ARM, BRAKE, BLK
(Superseded to 575017502)

$15.99

$

Usually ships in 3-10 days

0

18

Dixon 539132158

MOUNT, BRAKE WLDMT

$66.99

$

Usually ships in 3-10 days

0

19

Dixon 539132161

BUSHING, BRAKE

$6.49

$

In Stock, Qty 9

0

20

Dixon 539132154

ACTUATOR, SWITCH
(Superseded to 595846701)

$93.99

$

In Stock, Qty 7

0

21

Dixon 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

22

Dixon 539132423

LEVER, BRAKE
(Superseded to 595846701)

$93.99

$

In Stock, Qty 7

0

23

Dixon 539132153

BELLCRANK, BRAKE
(Superseded to 595846701)

$93.99

$

In Stock, Qty 7

0

24

Dixon 539108396

HCS 5/16-18 X 2 1/2 TPBLT

$

$

Not available

25

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

26

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN

$

$

Not available

27

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

28

Dixon 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

29

Dixon 539120921

GRIP BRAKE HANDLE

$10.99

$

In Stock, only 1 left!

0

30

Dixon 539132424

LINKAGE, BRAKE
(Superseded to 595846701)

$93.99

$

In Stock, Qty 7

0

31

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

32

Dixon 539132185

BRKT, EXTENSION

$

$

Not available

33

Dixon 539990209

HCS 5/16C X 1

$3.49

$

Usually ships in 3-10 days

0

34

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

Dixon 539976856

TIE, PLASTIC

Note: NOT SHOWN

$3.99

$

Usually ships in 3-10 days

0
