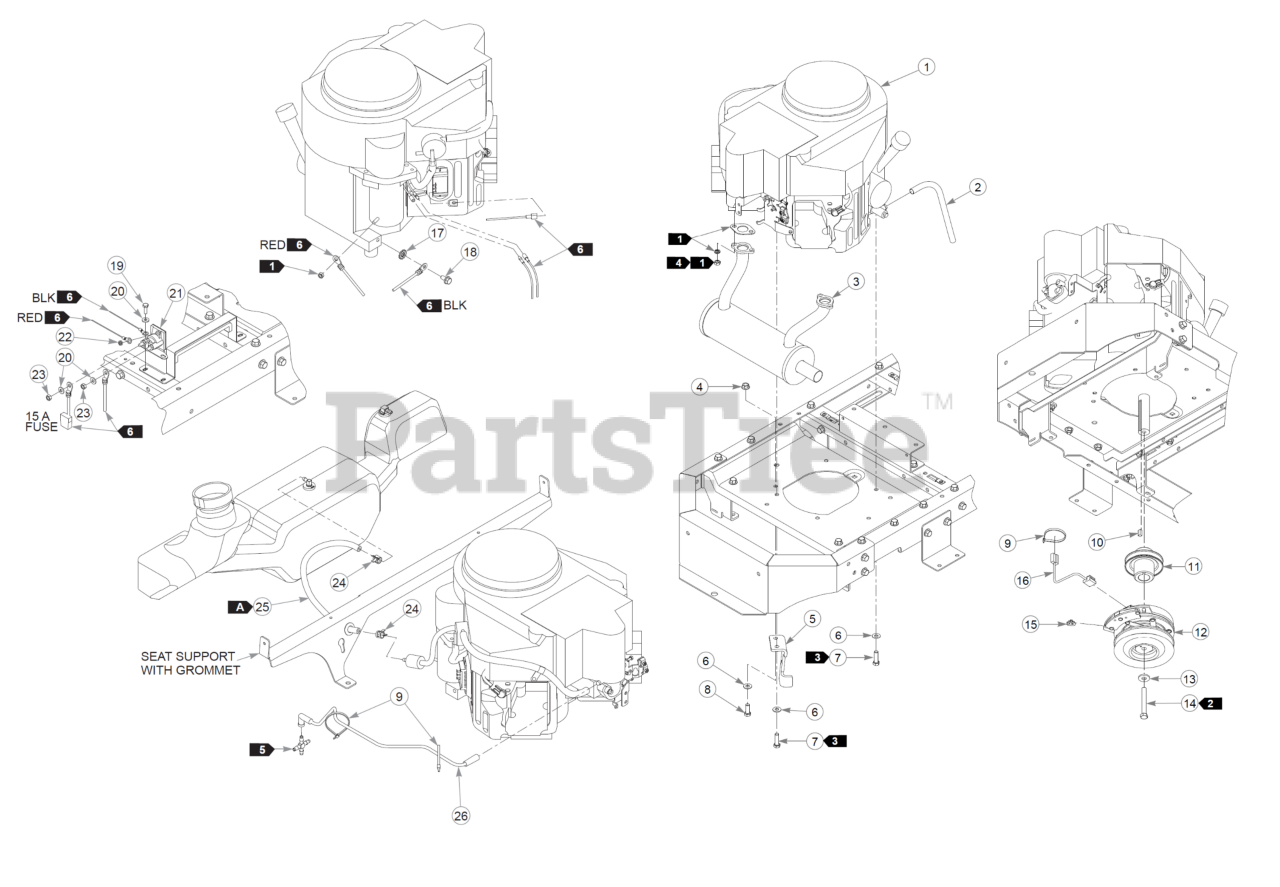

Raptor SD (938670) - Cub Cadet Hustler 54" Zero-Turn Mower, Kawasaki Engine, Muffler & Clutch Parts Diagram

Hustler 54" Zero-Turn Mower, Kawasaki

Engine, Muffler & Clutch Parts Diagram

  • Title

1

ENGINE, KAW FR691V

$

$

Not available

2

Cub Cadet 604463

HOSE, OIL DRAIN

Note: 12"

$

$

Currently unavailable

3

Cub Cadet 604016

MUFFLER, FR730V

$

$

Currently unavailable

4

Cub Cadet 016899

NT .375-16 FLKG5

$

$

Currently unavailable

5

Cub Cadet 121625

CLUTCH ANCHOR

$

$

Currently unavailable

6

Cub Cadet 767954

FW 0.379X.82X.06 HD ZN

$

$

Currently unavailable

7

Cub Cadet 602580

CS .375-16X1.25HXG8ZYP85

Note: 3. Torque to 30-35 ft-lbs. Replace (do not reuse) the cap screw if it is removed or loosened. Use only hand tools to install this fastener.

$

$

Currently unavailable

8

Cub Cadet 036244

CS .375-16X1.00 HX G5 ZN

$

$

Currently unavailable

9

Cub Cadet 000331

WIRE TIE, SMALL/SHORT

$

$

Currently unavailable

10

Cub Cadet 712372

KEY 1/4 SQ X 0.66 LG(FS)

$

$

Currently unavailable

11

Cub Cadet 605675

PULLEY, ENG 4.118 OP

$

$

Currently unavailable

12

Cub Cadet 605777K

CLUTCH KIT, 605777

$

$

Currently unavailable

13

Cub Cadet 602680

FW .453X1.12X.12 HRD ZN

$

$

Currently unavailable

14

Cub Cadet 601834

CS .437-20X3.25 HXG5 P85

Note: 2. Torque to 45-48 ft-lbs. Replace (do not reuse) the cap screw if it is removed or loosened. Use only hand tools to install this fastener.

$

$

Currently unavailable

15

Cub Cadet 605595

BUSHING, CLUTCH

$

$

Currently unavailable

16

Cub Cadet 791251

HARNESS, CLUTCH PIGTAIL

Note: Pigtail was updated with epoxy to hold the wires steady. The wire sheath was also updated to a more flexible material.

$

$

Currently unavailable

17

Cub Cadet 029876

LW .312 INTEXT ZN

$

$

Currently unavailable

18

Cub Cadet 720516

CS M8-1.25X16HX FL10.9

$

$

Currently unavailable

19

Cub Cadet 055939

CS .250-20X0.75 HX G5 ZN

$

$

Currently unavailable

20

Cub Cadet 768515

FW 0.281SAE

$

$

Currently unavailable

21

Cub Cadet 030817

STARTER SOLENOID

$

$

Currently unavailable

22

Cub Cadet 044255

NT #10-32HXG5

$

$

Currently unavailable

23

Cub Cadet 024927

NT .250-20HXG5

$

$

Currently unavailable

24

Cub Cadet 000323

CLIP, HOSE CLAMP

$

$

Currently unavailable

25

Cub Cadet 015818

FUEL LINE, 1/4"

Note: Sold by the foot. 18"

$

$

Currently unavailable

26

Cub Cadet 604274

VAPOR LINE, 3/16 FORMED

$

$

Currently unavailable

1a

1. Supplied with the engine.

$

$

Not available

4a

4. Torque to 17 ft-lbs.

$

$

Not available

5a

5. Part of the fuel system.

$

$

Not available

6a

6. Part of the wire harness.

$

$

Not available
