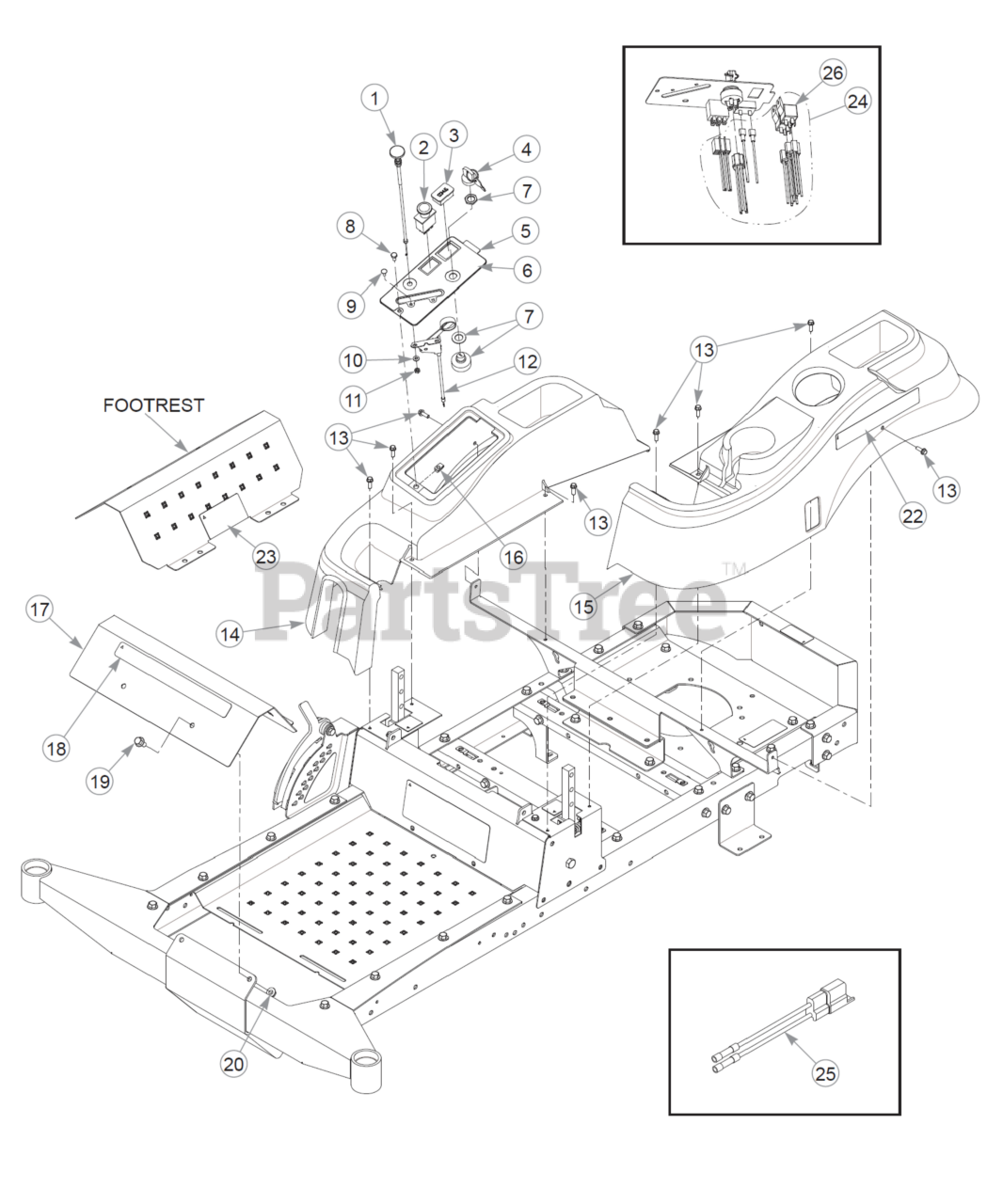

Raptor SD (938670) - Cub Cadet Hustler 54" Zero-Turn Mower, Kawasaki Fenders, Instrument Panel & Wire Harness Parts Diagram

Hustler 54" Zero-Turn Mower, Kawasaki

Fenders, Instrument Panel & Wire Harness Parts Diagram

  • Title
1

Cub Cadet 601097

CABLE, CHOKE

$

$

Currently unavailable

2

Cub Cadet 776476

SWITCH, PTO 6201-321

$

$

Currently unavailable

3

Cub Cadet 769166

HOUR METER

$

$

Currently unavailable

4

Cub Cadet 785808

KEY ASSEMBLY

$

$

Currently unavailable

5

Cub Cadet 552300

SERVICE, INSTR PANEL

Note: 1. Instrument panel (552300) includes the decal (604889).

$

$

Currently unavailable

6

Cub Cadet 604889

DECAL, INSTRUMENT PANEL

$

$

Currently unavailable

7

Cub Cadet 045898

IGNITION SWITCH

$

$

Currently unavailable

8

Cub Cadet 055939

CS .250-20X0.75 HX G5 ZN

$

$

Currently unavailable

9

Cub Cadet 601098

CB 10-24 X .500 ZYNC

$

$

Currently unavailable

10

Cub Cadet 704932

FW 0.219X.50X.05 ZN

$

$

Currently unavailable

11

Cub Cadet 059832

NT #10-24 HX NL ZN

$

$

Currently unavailable

12

Cub Cadet 601096

CABLE, THROTTLE

$

$

Currently unavailable

13

Cub Cadet 604324

CS .250-20 X .75 HX FLG

$

$

Currently unavailable

14

Cub Cadet 552809

SVC, FENDER RS

$

$

Currently unavailable

15

Cub Cadet 552810

SVC, FENDER LS

$

$

Currently unavailable

16

Cub Cadet 601982

CN .250-20X .150 MAX THK

$

$

Currently unavailable

17

Cub Cadet 552414

SVC, FOOTREST

Note: 2. Footrest (552414) includes the decals (602407 & 600899).

$

$

Currently unavailable

18

Cub Cadet 602407

DECAL, HUSTLER ID

$

$

Currently unavailable

19

Cub Cadet 029629

CS .375-16X0.75 HXF G5ZN

$

$

Currently unavailable

20

Cub Cadet 016899

NT .375-16 FLKG5

$

$

Currently unavailable

21

Cub Cadet 000331

WIRE TIE, SMALL/SHORT

$

$

Currently unavailable

22

Cub Cadet 604388

DECAL, RAPTOR FENDER

$

$

Currently unavailable

23

Cub Cadet 600899

DECAL, PUMP BELT WARNING

$

$

Currently unavailable

24

Cub Cadet 604876

WIRE HARNESS

$

$

Currently unavailable

25

Cub Cadet 114052

KIT, CLUTCH CONN. REP.

$

$

Currently unavailable

26

Cub Cadet 601053

RELAY, SEALED W/BRACKET

$

$

Currently unavailable
