Raptor SD (938670) - Cub Cadet Hustler 54" Zero-Turn Mower, Kawasaki Frame Parts Diagram

Hustler 54" Zero-Turn Mower, Kawasaki

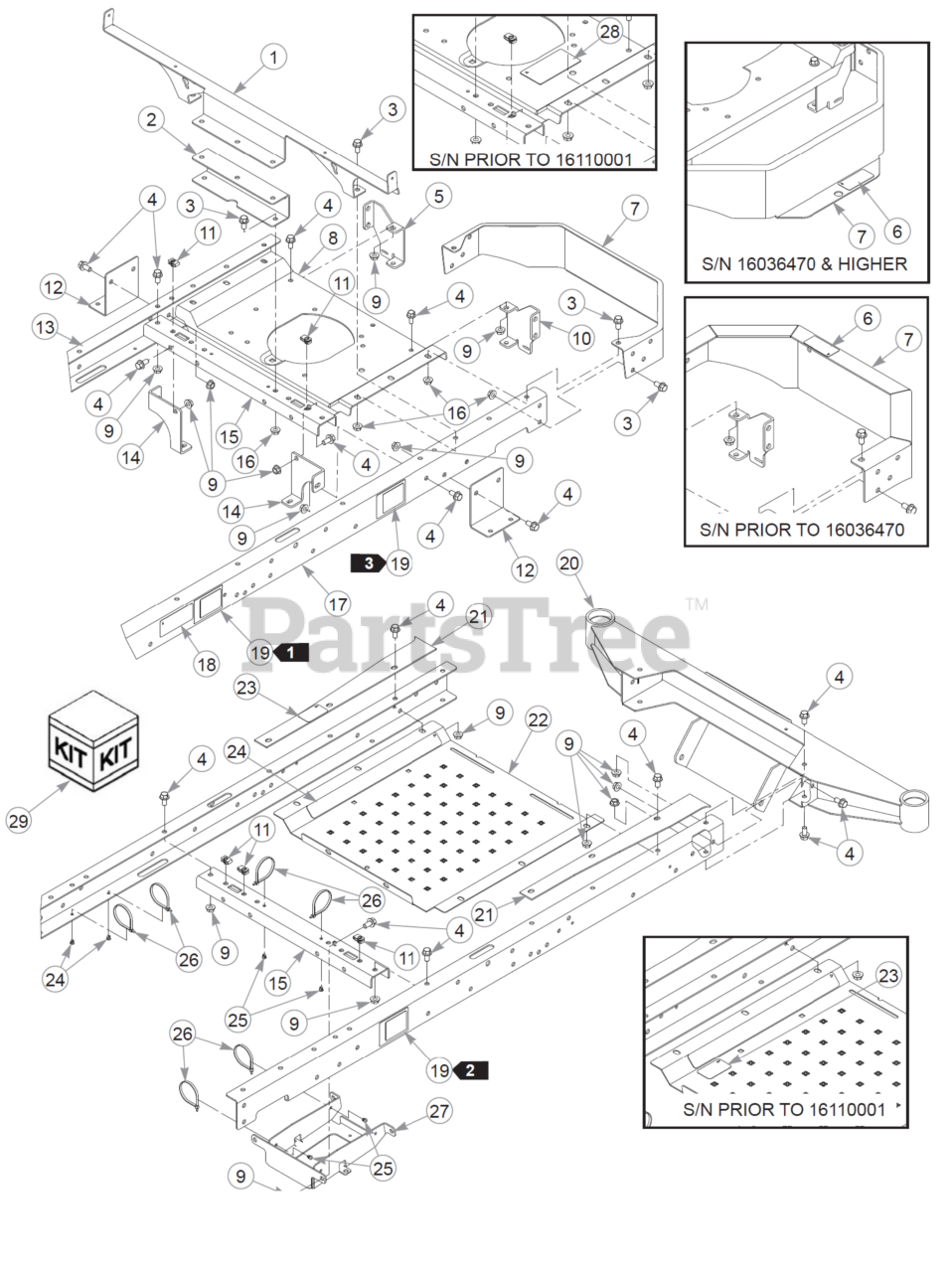

Frame Parts Diagram

  • Title

1

Cub Cadet 123637-3

SEAT SUPPORT

$

$

Currently unavailable

2

Cub Cadet 123636-3

SPRING SUPPORT

$

$

Currently unavailable

3

Cub Cadet 029629

CS .375-16X0.75 HXF G5ZN

$

$

Currently unavailable

4

Cub Cadet 604176

KIT SWITCH

$

$

Not available

5

Cub Cadet 552564

ORDER 125255 KIT

Note: NOT SOLD SEPARATELY. ORDER '125255 KIT, HYDRO BRACKETS'

$

$

Currently unavailable

6

Cub Cadet 602041

DECAL, HOT

$

$

Currently unavailable

7

Cub Cadet 553148

S/C TO 556499

$

$

Currently unavailable

Not Shown

Cub Cadet 552217

SERVICE, BUMPER

Note: Not Shown

$

$

Currently unavailable

8

Cub Cadet 551858

SVC, ENGINE PLATE

$

$

Currently unavailable

9

Cub Cadet 604177

NT .375-16 HXFLK PLN

$

$

Currently unavailable

10

Cub Cadet 552565

ORDER 125255 KIT

Note: NOT SOLD SEPARATELY. ORDER '125255 KIT, HYDRO BRACKETS'

$

$

Currently unavailable

11

Cub Cadet 601982

CN .250-20X .150 MAX THK

$

$

Currently unavailable

12

Cub Cadet 552566

ORDER 125255 KIT

Note: NOT SOLD SEPARATELY. ORDER '125255 KIT, HYDRO BRACKETS'

$

$

Currently unavailable

13

Cub Cadet 552407

SVC, RS FRM CHNL

$

$

Currently unavailable

14

Cub Cadet 552567

ORDER 125255 KIT

Note: NOT SOLD SEPARATELY. ORDER '125255 KIT, HYDRO BRACKETS'

$

$

Currently unavailable

15

Cub Cadet 551861

SVC, CROSS SUPPORT

$

$

Currently unavailable

16

Cub Cadet 016899

NT .375-16 FLKG5

$

$

Currently unavailable

17

Cub Cadet 552406

SVC, LS FRM CHNL

$

$

Currently unavailable

18

Cub Cadet 601967

DECAL, ENGINE COMPART

$

$

Currently unavailable

19

Cub Cadet n/a

Not Applicable

$

$

Currently unavailable

20

Cub Cadet 552568

FRONT CROSS FRAME W/A

$

$

Currently unavailable

21

Cub Cadet 552569

SVC, FAIRING

$

$

Currently unavailable

22

Cub Cadet 551865

SVC, FOOT PAN

$

$

Currently unavailable

23

Cub Cadet 605782

DECAL, LEVEL FUEL BLOWM

$

$

Currently unavailable

24

Cub Cadet 601981

DECAL, SAFE OPERATE-GRAY

$

$

Currently unavailable

25

Cub Cadet 604307

MOUNT, PUSH BUTTON

$

$

Currently unavailable

26

Cub Cadet 000331

WIRE TIE, SMALL/SHORT

$

$

Currently unavailable

27

Cub Cadet 552570

BATTERY TRAY

$

$

Currently unavailable

28

Cub Cadet 600899

DECAL, PUMP BELT WARNING

$

$

Currently unavailable

29

Cub Cadet 125255

KIT, HYDRO BRACKETS

$

$

Currently unavailable

1a

1. Serial number decal. In the event the serial number decal becomes damaged or illegible, please contact your dealer to order a replacement.

$

$

Not available

2a

2. Torque all hardware to a minimum of 33 ft-lbs.

$

$

Not available

3a

3. The bumper (552217), engine plate (551858), RS frame channel (552407), LS frame channel (552406), & foot pan (551865) include decals.

$

$

Not available
