RAS708GEM60RC3 - Exmark 60" Radius S-Series Zero-Turn Mower, Exmark 708 (SN: 402082300 - 404314158) (2018) Deck Assembly Parts Diagram

60" Radius S-Series Zero-Turn Mower, Exmark 708

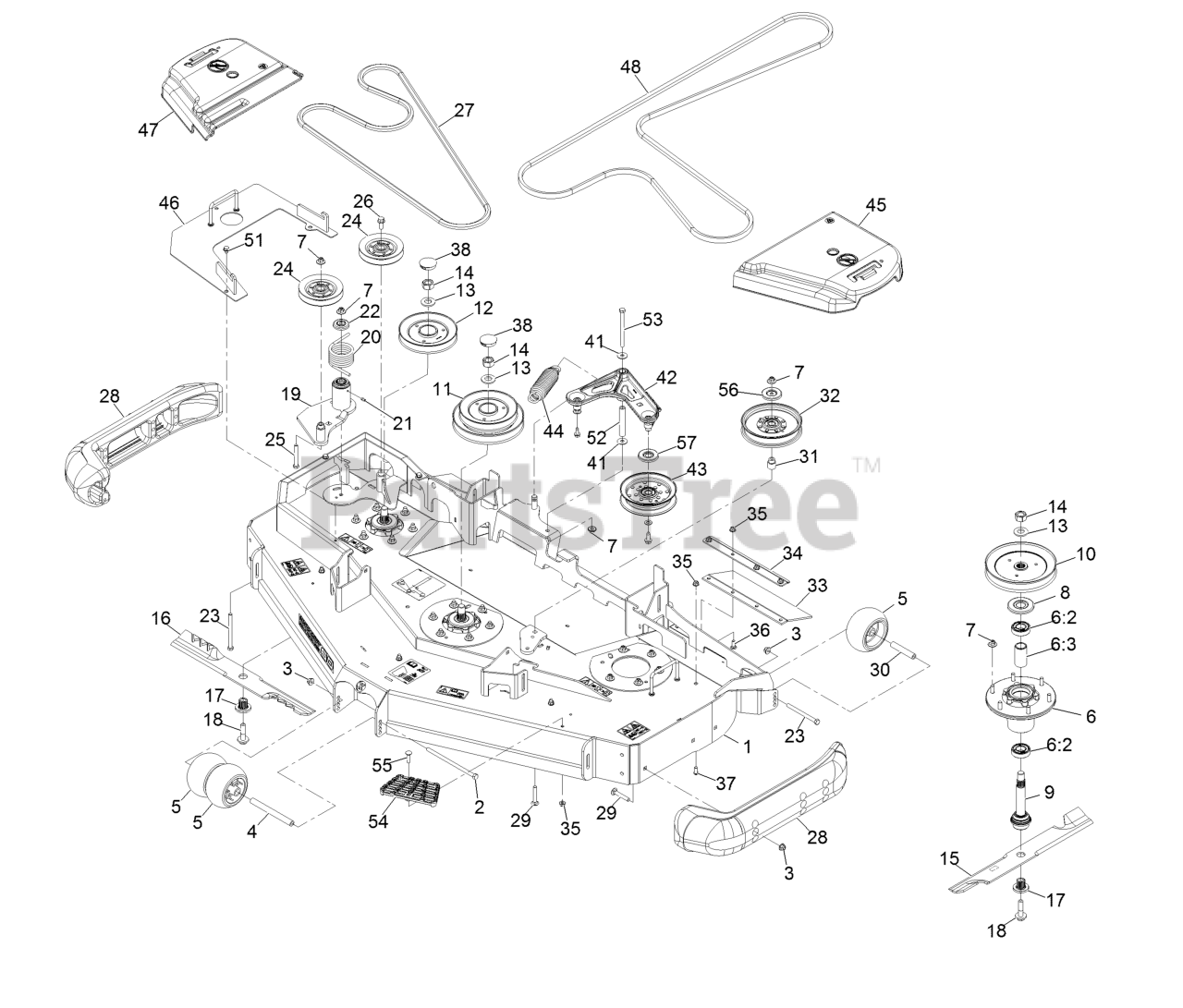

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-3682

ASM-Deck W/Decals 60Rd

$2810.99

$

Usually ships in 3-6 days

0

2

Exmark 108-5388

Screw-HH 3/8-16 X 7 3/8

$17.99

$

In Stock, Qty 20+

0

3

Exmark 104-8301

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

4

Exmark 98-5967

Spacer-Wheel

$17.99

$

In Stock, Qty 20+

0

5

Exmark 1-603299

Roller-Scalp, Anti

$25.99

$

In Stock, Qty 20+

0

6

Exmark 116-3344

ASM-Cutter Hsg With Bearings

$167.99

$

In Stock, Qty 20+

0

6:2

Exmark 116-0720

Bearing-Ball

$23.99

$

In Stock, Qty 20+

0

6:3

Exmark 116-3312

Spacer-Bearing

$9.49

$

In Stock, Qty 18

0

7

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-1286

Guard,Bearing Top .989

$5.99

$

In Stock, Qty 20+

0

9

Exmark 116-3341

ASM-Spindle And Seal

$94.99

$

In Stock, Qty 20+

0

10

Exmark 116-0676

Sheave,Blade Drive 7.25

$74.99

$

In Stock, Qty 20+

0

11

Exmark 126-0352

Sheave, Double 60Rd

$153.99

$

In Stock, only 4 left!

0

12

Exmark 126-0354

Sheave-Rd Rev Drive Series 4

$100.99

$

Usually ships in 3-6 days

0

13

Exmark 103-2802

Washer-Spring Disc 3/4

$5.49

$

In Stock, Qty 20+

0

14

Exmark 116-7306

Nut-Hex

$2.99

$

In Stock, Qty 20+

0

15

Exmark 103-6403

Blade, Notched
(Superseded to 103-6403-S)

$34.99

$

In Stock, Qty 20+

0

15

Exmark 103-6388

Blade, Low Lift
(Superseded to 103-6388-S)

$39.99

$

In Stock, Qty 7

0

15

Exmark 116-5174

Blade-Extreme 2, 20.50"

$

$

Currently unavailable

16

Exmark 116-8196

Blade-Low Lift 20.5, Rd60
(Superseded to 116-8196-S)

$36.99

$

In Stock, Qty 12

0

16

Exmark 116-8181

Blade-Extreme 2-20.50, Rd60
(Superseded to 116-8181-S)

$36.99

$

In Stock, Qty 20+

0

17

Exmark 103-3037

Bushing, Splined

$23.99

$

In Stock, Qty 20+

0

18

Exmark 109-9220

Screw-Sems 1/2-20 X 2.19

$8.99

$

In Stock, Qty 20+

0

19

Exmark 126-0853

Idler ASM

$270.99

$

Usually ships in 3-6 days

0

20

Exmark 108-1921

Spring-Torsion

$31.99

$

Usually ships in 3-6 days

0

21

Exmark 302-19

Zerk-1/4-28 Str

$2.99

$

In Stock, Qty 20+

0

22

Exmark 103-2916

Guard-Top

$2.99

$

In Stock, Qty 8

0

23

Exmark 323-23

Screw-HH 3/8-16 X 4-1/2

$5.99

$

In Stock, Qty 20+

0

24

Exmark 126-1478

Sheave

$53.99

$

In Stock, only 1 left!

0

25

Exmark 323-13

Screw-HH 3/8-16 X 2 3/4

$3.99

$

In Stock, Qty 20+

0

26

Exmark 3234-11

Screw-HH Flg 3/8-16 X 1

$4.49

$

In Stock, Qty 20+

0

27

Exmark 116-8187

Belt
(Superseded to 116-8187-SL)

$120.99

$

Usually ships in 3-6 days

0

28

Exmark 112-1479

Skid-Bumper, Deck

$110.99

$

Usually ships in 3-6 days

0

29

Exmark 3231-7

Bolt-Carriage 3/8-16 X 2 1/

$7.49

$

In Stock, Qty 20+

0

30

Exmark 98-7912

Tube-Spanner

$15.99

$

In Stock, Qty 20+

0

31

Exmark 1-633456

Bushing, Idler

$5.49

$

In Stock, Qty 20+

0

32

Exmark 126-9189

Idler-Pulley, Flat 6.00X1.00

$66.99

$

In Stock, only 2 left!

0

33

Exmark 116-8191

Guard-Tire

$18.99

$

Usually ships in 3-6 days

0

34

Exmark 126-0413-01

Support-Outer Flap

$21.99

$

Usually ships in 3-6 days

0

35

Exmark 104-8300

Nut-Nyloc 5/16-18 Flg

$1.49

$

In Stock, Qty 20+

0

36

Exmark 3230-16

Bolt-Carriage 5/16-18 X 7/8

$2.99

$

In Stock, Qty 20+

0

37

Exmark 3274-55

Screw-Button Head 5/16-18 X 3/4

$5.49

$

In Stock, Qty 12

0

38

Exmark 116-2253

Plug,Black Nylon 1.75

$3.49

$

In Stock, only 3 left!

0

41

Exmark 52-2860

Washer

$1.49

$

In Stock, Qty 20+

0

42

Exmark 126-0976

Idler Arm ASM

$120.99

$

In Stock, Qty 13

0

43

Exmark 126-9196

Idler-Pulley, Flat

$64.99

$

In Stock, Qty 20+

0

44

Exmark 116-6317

Spring-Extension

$29.99

$

In Stock, Qty 20+

0

45

Exmark 126-1989

Cover-Belt, LH

$92.99

$

Usually ships in 3-6 days

0

46

Exmark 126-5116-01

Cover-Drive, Reverse

$108.99

$

Usually ships in 3-6 days

0

47

Exmark 116-0094

Cover-Belt, RH

$92.99

$

In Stock, Qty 20+

0

48

Exmark 126-6628

Belt-V
(Superseded to 126-6628-SL)

$133.99

$

Usually ships in 3-6 days

0

51

Exmark 9266934

Screw-HWH 5/16 X 1/2 Tf

$9.49

$

In Stock, Qty 7

0

52

Exmark 116-5111

Bushing

$35.99

$

In Stock, Qty 17

0

53

Exmark 323-38

Screw-HH 3/8-16 X 4 3/4

$12.99

$

In Stock, Qty 20+

0

54

Exmark 126-4781-03

Step-Deck

$30.99

$

In Stock, only 2 left!

0

55

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

56

Exmark 126-8043

Shield-Dust

$2.99

$

In Stock, Qty 20+

0

57

Exmark 126-9195

Shield-Guard, Dust

$3.49

$

In Stock, only 2 left!

0
